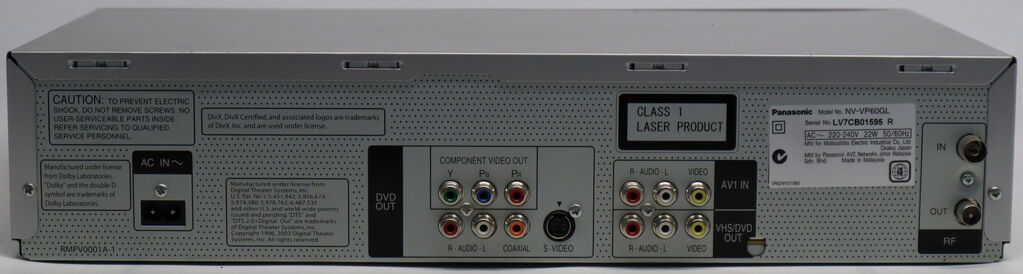

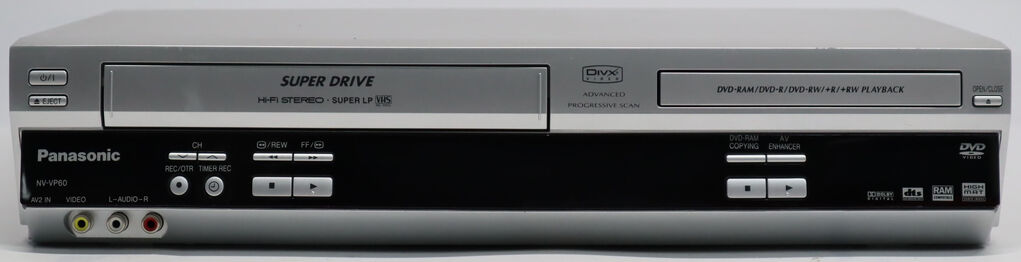

DVD player and VCR in tested and working condition Includes NV-VP60DVD/VCR combo player only. Does NOT include remote.

(NV-VP60-R)

VHS SECTION

Video Recording System 2 rotary heads, helical scanning system
Video Heads 4 heads
Audio Heads 2 heads (Hi-Fi)
Tape Speed PAL SP; 23.39 mm/s LP; 11.7 mm/s EP; 7.8 mm/s
NTSC SP; 33.3 mm/s EP; 11.1 mm/s
Tape Format VHS cassette
Recording/Playback Time PAL SP; 240 min with NV-E240
PAL LP; 480 min with NV-E240
PAL EP; 720 min with NV-E240
FF/REW Time Approx. 60 s with NV-E180 (FF/REW)
Approx. 43 s with NV-E180 (JET REW)
VIDEO
Television System CCIR; 625 lines, 50 fields, PAL colour signal
EIA; 525 lines, 60 fields, NTSC colour signal
Modulate System Luminance; FM azimuth recording
Colour signal; converted subcarrier phase shift recording
Input Level VIDEO IN (PHONO); 1.0 Vp-p, 75 Q
Output Level VIDEO OUT (PHONO); 1.0 Vp-p, 75 Q
RF modulate
UHF Channel; E21 ch to E69 ch, 75 Q
AUDIO
Input Level AUDIO IN (PHONO); -6 dBV, more than 47 KQ
Output Level AUDIO OUT (PHONO); -6 dBV, less than 1 kQ
Audio Track 1 track (normal-mono only),
2 tracks (Hi-Fi sound-stereo)
Video Horizontal Resolution Colour; more than 240 lines/SP
Signal-to-Noise Ratio Video; more than 43 dB/SP
Audio; more than 65 dB/Hi-Fi
Dynamic Range Audio; more than 90 dB/Hi-Fi audio track
Audio Frequency Response 20 Hz to 20 kHZ/Hi-Fi
Wow and Flutter 0.005% Wrms/Hi-Fi

DISC SECTION

Playable Discs [8 cm or 12 cm]
  • DVD (DVD-Video, DivX*6,7)
  • DVD-RAM (DVD-VR, MP3*2,7, JPEG*4,7, MPEG4*5,7, DivX*6,7)
  • DVD-R, DVD-RW (DVD-VR, DVD-Video, MP3*2,7, JPEG*4,7, MPEG4*5,7, DivX*6,7)
  • DVD-R DL (DVD-VR, DVD-Video)
  • +R/+RW (Video)
  • +R DL (Video)
  • CD, CD-R/RW [CD-DA, Video CD, SVCD*1, MP3*2,7, WMAX*3,7, JPEG*4,7, MPEG4*5,7, DivX*8,7, HighMAT Level 2 (Audio and Image)]
  1. Conforming to 1EC62107

  2. MPEG-1 Layer 3, MPEG-2 Layer 3

  3. Windows Media Audio Ver.9.0 L3. Not compatible with Multiple Bit Rate (MBR)

  4. Exif Ver 2.1 JPEG Baseline files. Picture resolution; between 160x120 and 6144x4096 pixels (sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and slender pictures may not be displayed

  5. MPEG4 data recorded with the Panasonic SD multi cameras or DVD video recorders. Conforming to SD VIDEO specifications (ASF standard)/MPEG4 (Simple Profile) video system/G.726 audio system

  6. Plays all versions of DivX® video (including DivX®6) with standard playback of DivX® media files. Certified to the DivX Home Theater Profile. GMC (Global Motion Compensation) is not supported

  7. The total combined maximum number of recognizable audio, picture and video contents and group: 4000 audio, picture and video contents and 400 groups

VIDEO
Signal System PAL/NTSC
Output Level

Composite video: 1.0 Vp-p, 75 Q

S-VIDEO:
Y output level; 1.0 Vp-p, 75 Q
C output level; PAL 0.300 Vp-p, 75 Q
C output level; NTSC 0.286 Vp-p, 75 Q

COMPONENT VIDEO (NTSC; 480p/480i, PAL; 576p/576i):
Y output level; 1.0 Vp-p, 75 Q
PB/CB output level; 0.7 Vp-p, 75 Q
PR/CR output level; 0.7 Vp-p, 75 Q

AUDIO
Output Level AUDIO OUT (PHONO); 2 Vrms, (1 kHz, 0 dB, 10 kQ)
Audio Performance
  • Freguency response:
    DVD (linear audio): 4 Hz to 22 kHz (48 kHz sampling); 4 Hz to 44 kHz (96 kHz sampling)
    CD audio: 4 Hz to 20 kHz
  • Signal-to-Noise ratio:
    CD audio: 115 dB (DVD OUT ONLY)
  • Dynamic range:
    DVD (linear audio): 99 dB
    CD audio:97 dB (DVD OUT ONLY)
  • Total harmonic distortion:
    CD audio: 0.0035% (DVD OUT ONLY)
Digital Audio Out Output: Coaxial digital output
Pickup
Wave Length 662 nm/785 nm
Laser Power CLASS 2/CLASS 1

GENERAL

Operating Temperature 5 °C to 35 °C
Operating Humidity 35% to 80%
Dimensions 430 mm (W) x 89 mm (H) x 259 mm (D) (total external dimensions)
Mass 4.0 kg



SKU NV-VP60-R
Barcode # 615678980440
Brand Panasonic
Brand Panasonic
Type VCR-DVD
Model NV-VP60
Connectivity Component, S-Video, Composite
Playable Media Format DVD, VHS
Unit Of Measure ea
