Tested to power on, display HDMI video signal. Includes AW-HE60HE camera, compatible 12V power adapter. Does NOT include remote or mounting plate.

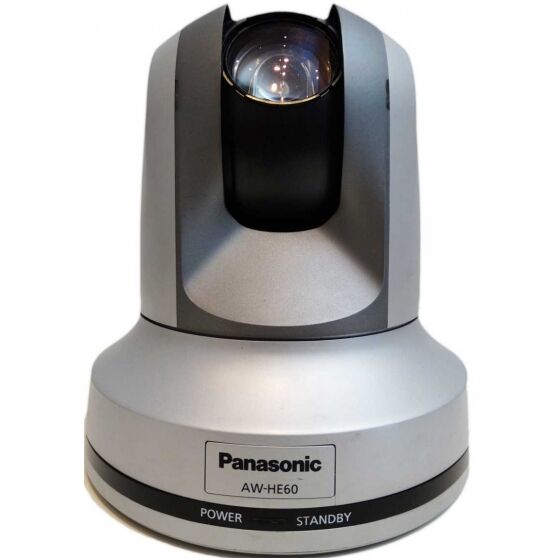

The Panasonic AW-HE60HE Full HD Integrated Indoor PTZ Camera with IP Image Monitoring features HDMI output and captures Full HD 1080p images at a resolution of up to 850 TVL with its 1/3” Full-HD MOS sensor. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.

Equipped with a 1.6 to 2.8mm lens and 18x optical zoom, this PTZ camera enables you to zoom in on any suspicious activity in the monitoring area for a closer look. It captures high-quality images even in low-light conditions thanks to Hybrid Digital Noise Reduction. Additionally, Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full-HD PTZ camera uses Night Mode to capture clear images using an IR illuminator (sold separately). The innovative turn-lock mounting mechanism allows for easy single-person installation.

Note: IP monitoring is displayed in at up to 30 fps in VGA (640 x 480) and QVGA (320 x 240). Multi-view monitoring, of up to 16 cameras on a single display, is available in M-JPEG only.

  • Suitable for sports, education, house of worship, and government applications
  • Comes with a 1/3" Full-HD MOS sensor and 1.6 to 2.8mm lens
  • Recording resolution of up to 850 TVL
  • Highly-accurate pan-tilt head offers precise, fast, fluid movement in all directions, enabling the capture of both slow- and fast-moving objects without excessive vibration and bounce
  • IP-based PTZ control and image monitoring
  • Dynamic Range Stretch (DRS) for minimizing overexposure in highlights and detail blocking in dark areas
  • Hybrid 2D/3D Digital Noise Reduction (Hybrid DNR) allows clear image capture with minimum afterimages even in dimly-lit areas
  • Switchable IR cut filter allows for switching between daytime view and high-resolution, B&W nighttime video
  • Pan/tilt speed adjustment from 2 to 4 steps
  • Equipped with Night Mode for night-time surveillance (Note: An optional IR illuminator is required.)
  • R/B gain adjustment plus 16-axis color matrix correction
  • Serial (RS-422), IP, and IR remote control capabilities
  • IP Live Preview of the surveillance area via a Web browser
  • 54 dB S/N ratio, 3-step gamma correction and 7-step chroma level adjustment
  • 100 preset memories for rapid and precise remote recall
  • Electronic shutter (1/100 to 1/10,000 a sec) with synchro scan, and built-in tally light for remote studio use
  • Turn-lock mounting mechanism for easy installation
  • Can be placed on the desktop as a standalone unit or suspended from the ceiling
  • Compatible with Android and iOS devices

(AW-HE60HE-R)

Power Requirements: DC 12 V (AC adaptor supplied)
Power Consumption: 1.3 A (AW-HE60H)
Weight: Approx. 1.4 kg (Approx. 3.1 Ib) without mount bracket
Dimensions (W x H x D): 160 mm x 178 mm x 166 mm (6-5/16 inches x 7 inches x 6-9/16 inches)
(excluding protrusions, cable cover, direct ceiling mount bracket)
Image Sensors: 1/3 type Full-HD MOS
Lens: Motorized 18x zoom, F1.6 to F2.8
(F=4.7 mm to 84.6 mm, 35 mm equivalent: 36.9 mm to 664.5 mm)
Focus Distance: Entire zooming range: 1.0m (3.3 ft.), Wide end: 30 cm (0.98 ft.)
Output Format: 1080/59.94p*1, 1080/59.94i, 1080/29.97PsF, 720/59.94p,
480/59.94p*1, 480/59.94i, 1080/50p*1, 1080/50i,
1080/25PsF, 720/50p, 576/50p*1, 576/50i
Synchronization System: AW-HE60H: Internal/External synchronization
Installation Method*2: Stand-alone (Desktop) or suspended (Hanging)
Pan/Tilt Operation Speed: Max 90°/s
Pan Range: ± 175°
Tilt Range*3: 90° to -30°
Quietness: NC35 (at normal speed), NC40 (when preset)
Preset Positions: 100
Input/Output Connector: RJ-45 (IP) /RD422A (MULTI-IF)
SKU AW-HE60HE-R
Barcode # 615678586581
Brand Panasonic
Brand Panasonic
Type PTZ Camera
Model AW-HE60HE
Shipping Cubic 0.017794000m3
