The AW-HE130 offers new and enriched functions for an expanded range of applications.

The highly sensitive camera is equipped with three newly developed 1/2.86-type MOS sensors, allowing for high-grade filming even in low light conditions, also offering a superior S/N ratio and high resolution. In addition to 3G-SDI and HDMI output, production quality full HD video output via IP transmission is supported with the AW-HE130W/K. The camera delivers up to four channels of IP streaming video (H.264), with configuration levels of the quality level.

In addition to a sharp, fast F1,6, 20x optical zoom lens, the AW-HE130W/K is equipped with an innovative 1,4x digital extender that can increase the effective focal length of the lens by 40% while delivering smooth, high resolution video. The new built in Optical Image Stabilization System (OIS) automatically minimizes the effect of small vibrations from the surface where the camera is mounted caused ; whether this is caused by the opening and closing of doors, nearby speakers, or other disturbances.

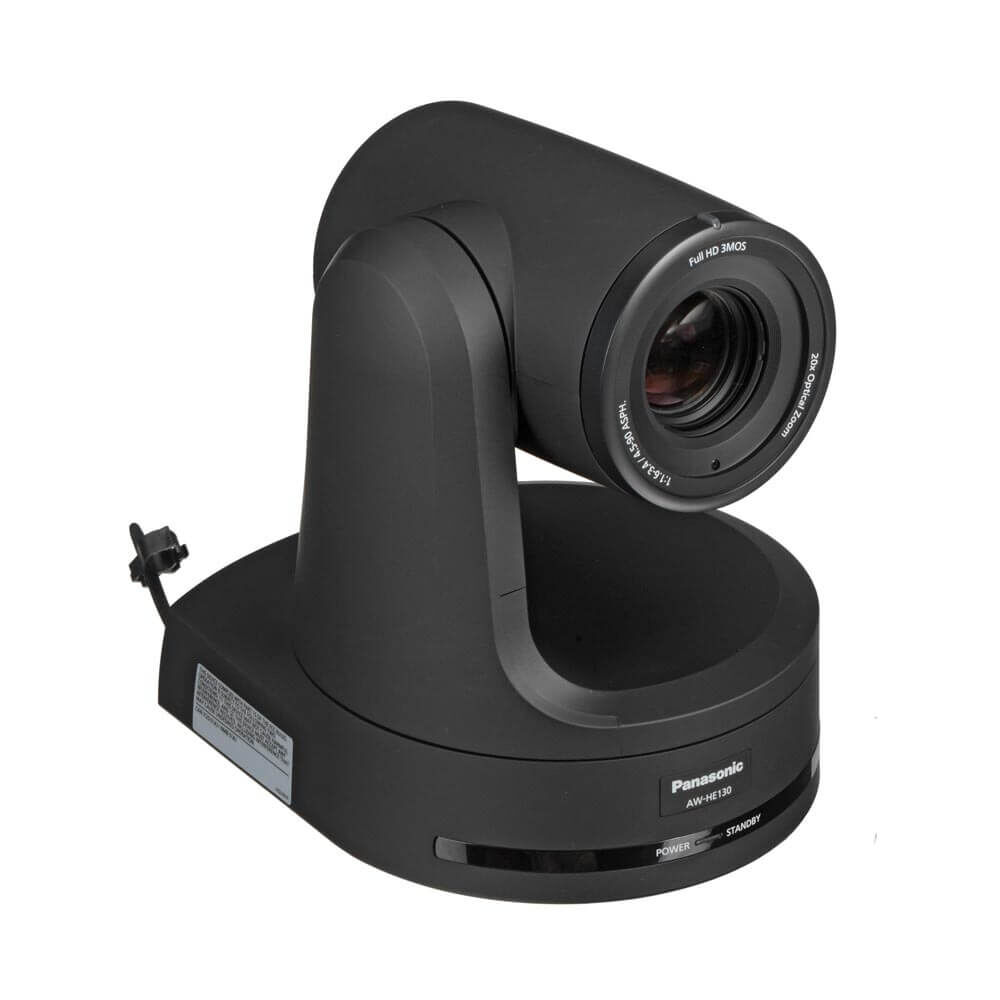

(AW-HE130KEJ-OB)

Dimensions (W x H x D) 180 mm x 228 mm x 234 mm
(7-3/32 inches x 9 inches x 9-3/16 inches)
(excluding protrusions, cable cover, direct ceiling mount bracket)
General -
Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
Power Requirements DC 12 V (AC adaptor supplied) DC 42 - 57 V (PoE+ power supply)
1.8 A (AC adaptor supplied) 0.6 A (PoE+ power supply)
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Finish AW‑HE130WP/AW-HE130WE: Pearl white
AW‑HE130KP/AW-HE130KE: Metallic black
Allowable Humidity Ranges 20 % to 90 % (no condensation)
Mass Approx. 3.1 kg (6.83 lb) [Including mount bracket]
Controller supported*1 AW-RP120G, AW‑RP50, AK-HRP200G
LENS Motorized 20 zoom, F1.6 to F3.4
(f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)
MINIMUM ILLUMINATION 2 lx (50 IRE, F1.6, 36 dB)
Synchro scan 59.94 Hz: 60.15 Hz to 642.21 Hz
50 Hz: 50.15 Hz to 535.71 Hz
Horizontal Resolution 1000 TV lines Typ (Center area)
Gain Selection Auto, 0 dB to 36 dB
WHITE BALANCE AWB A, AWB B, ATW, 3200K, 5600K, VAR (2000K to 15000K)
Color separation optical system 3MOS
Focus Switching between auto and manual
Focus Distance Entire zooming range: 800 mm (2.62 ft)
Wide end: 400 mm (1.31 ft)
Gamma HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
0.30 to 0.75 (Manual setting)
Scene File Scene1, Scene2, Scene3, Scene4
Electronic Shutter Speed 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
29.97p: 1/30, 1/60, 1/120, 1/250, 1/500,1/1000, 1/2000, 1/4000, 1/10000
23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
Imaging Sensors 1/2.86-type Full-HD 3MOS
Chroma Amount Variability OFF, -99 % to 40 %
Camera Unit -
Frame Mix*2 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
STANDARD ACCESSORIES Mount bracket for installation surface (Hanging*6 / Desktop): 1, Drop-prevention wire: 1, Drop-prevention wire mounting screw (comes attached to the unit): 1, Bracket mounting screws (bind-head) M4 x 10 mm: 4, Main unit mounting screw (with flat washer,spring washer) M3 x 6 mm: 1, Cable cover: 1, Power cable: 1, AC adaptor: 1, CD-ROM
Input Connector DC 12 V IN, G/L IN (BNC)
• BBS (Black Burst Sync), tri-level sync supported
• Locking to a color subcarrier is not possible with BBS.
PoE+ (IEEE802.3at standard)
Panning range ±175°
Quietness NC35 or less
Installation Method Stand-alone (Desktop) or suspended (Hanging)*3
OUTPUT -
INPUT/OUTPUT -
Pan-tilt Head Unit -
Camera/pan-tilt head control IP connecting cable
• When connecting through a PoE+ hub:
LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
• When a PoE+ hub is not used:
LAN cable*4 (category 5 or above, crossover cable) max.100 m (328 ft)
RP connecting Cable
LAN cable*4 (category 5 or above, straight cable), max. 1000 m (3280 ft)
RS-422A, AW series protocol
VIDEO OUTPUT HDMI: HDMI connector
• HDCP is not supported.
• Viera Link is not supported.
HD/SD-SDI OUT: SMPTE424/SMPTE292/SMPTE259 standards 75 Ω (BNC x 1)
VIDEO OUT: NTSC/PAL 1.0 V [p-p]/75 Ω (BNC x 1)
Input/Output Connector LAN: LAN connector for IP control (RJ‑45), PoE+
RS-422: CONTROL IN RS-422A (RJ‑45)
MIC/LINE input: ø3.5 mm stereo mini jack Input impedance: High impedance
• During MIC input Supported mic: Stereo mic
(plug-in power, on/off switching via menu)
• Supply voltage: 2.5 V ± 0.5 V
Mic input sensitivity: Approx. -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
• During LINE input
Input level: Approx. -10 dBV ±3 dBV
Pan-tilt Operation Speed 0.08°/s to 60°/s
Tilting Range –30° to 210°*5
Note *1: It may be necessary to upgrade the version of the controller in order to support the unit. For details on upgrading, visit the support page on the following website. http://pro-av.panasonic.net/
*2: This cannot be configured when the format is 1080/29.97p, 1080/23.98p, 1080/29.97PsF 1080/23.98PsF, 1080/25p, or 1080/25PsF.
*3: To ensure safety, the unit must be secured using the mount bracket supplied.
*4: Use of an STP (shielded twisted pair) cable is recommended.
*5: Depending on the pan or tilt position, the camera may be reflected in the image.
*6: To ensure more safety, AW-HE130W/K can be secured by using the direct ceiling mount bracket (WV-Q105A).
SKU AW-HE130KEJ-OB
Barcode # 5025232801008
Brand Panasonic
Brand Panasonic
Type PTZ Camera
Model AW-HE60HE
Shipping Cubic 0.036480000m3
