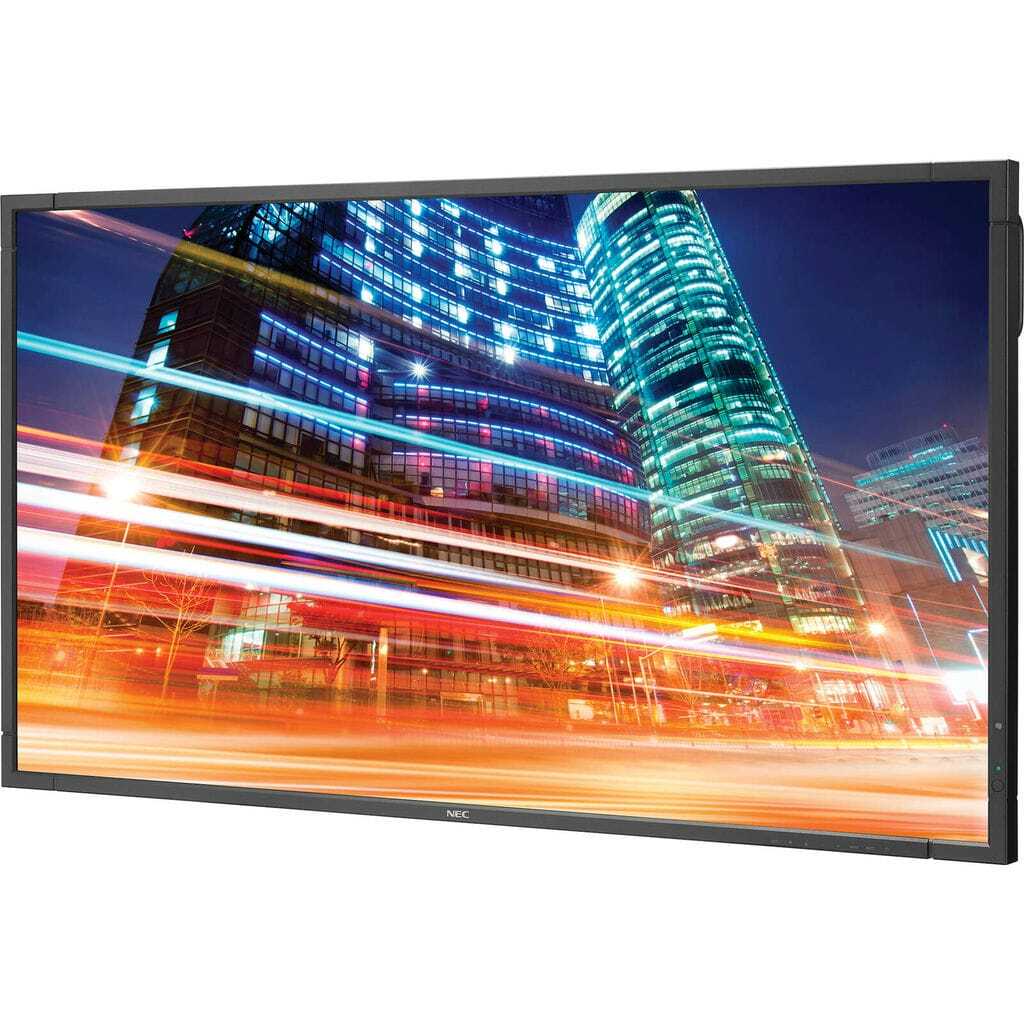

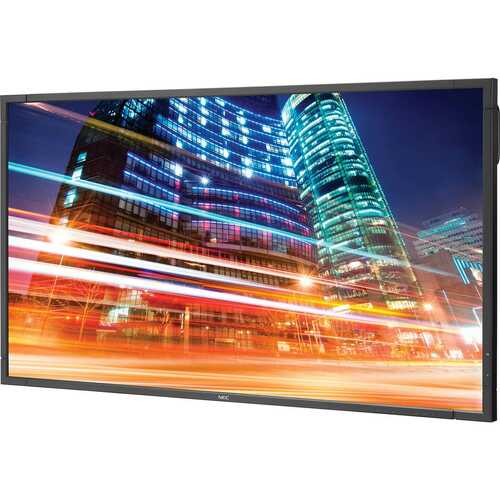

NEC's 55" P553 sets the standard for rugged 24/7 use in the harshest installation environments. LED edge lighting delivers environmental, economic, and aesthetic impact. With a decreased total cost of ownership, a thinner and lighter cabinet, and customizable connectivity options, the P series displays deliver stunning solutions. Everytime. This new generation of display received a full chassis upgrade with the addition of a second expansion slot, faster processing times, evolved daisy chain performance, and near field communication capabilities (for setup and servicing only).

  • LED backlighting technology improves power consumption and allows for a slimmer cabinet depth
  • 700cd/m² max brightness combined with full HD resolution will capture the attention of the audience
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for 24/7 operation
  • Input Switching Speed minimizes downtime between source transitions
  • Human Sensor Accessory ensures digital signage is directed at a targeted audience
  • Near field communication capabilities for setup and service. More information can be found here
  • Expanded daisy chain options with DP1.2
  • Video daisy chain limitations apply when High-bandwidth Digital Content Protection (HDCP) is utilized
  • Model includes anti glare screen allowing customers maximum visibility of the content displayed on the screen





(NEC-P553-OB)

Display

Panel Technology SPVA (P-DID) Viewable Image Size 55 "
Aspect Ratio 16:9 Native Resolution 1920x1080
Pixel Pitch 0.63 mm Pixels Per Inch 40 @ native resolution
Backlight Type LED Edge-lit Brightness (typical) 550 cd/m2
Brightness (maximum) 700 cd/m2 Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz Active Screen Area 47.9 x 27.1 in. / 1216.6 x 687.4mm
Orientation Landscape/Portrait Displayable Colors More than 16.7 million

Synchronization Range

Horizontal (Analog/Digital) 31.5-91.1 kHz

Input Signal

Video Analog RGB 0.7 Vp-p/75 Ohms Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Signal Compatibility/Connectivity

PC Signal Compatibility Yes Macintosh Signal Compatibility Yes
Video Analog RGB 0.7 Vp-p/75 Ohms Sync Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
Input Terminals

Analog:

VGA 15-pin D-sub

Digital:

DisplayPort, HDMI, DVI-D

Audio:

Audio Mini-Jack, DisplayPort Audio, HDMI Audio

External Control:

RS-232C, LAN, DDC/CI

Output Terminals

Digital:

DisplayPort

Audio:

Audio Mini-Jack, External Speaker Jack (2)

External Control:

RS-232C

Power Consumption (typical)

On 150W ECO Mode Standby <0.5W

Physical Specifications

Dimensions (WxHxD)

With stand:

49.2 x 29.9 x 15.7 in. / 1250.2 x 760.5 x 400mm

Without stand:

49.2 x 28.4 x 2.5 in. / 1250.2 x 721 x 64.5 mm

Shipping:

56.3 x 36.2 x 9.8 in. / 1430 x 920 x 250mm

Weight

Net Weight (with stand):

64.4 lbs. / 29.2 kg

Net Weight (without stand):

59.5 lbs. / 27 kg.

Shipping:

71.1 lbs. / 32.3 kg

VESA Hole Configuration 300 x 300mm (4-hole)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C Operating Humidity 20-80%
Operating Altitude 9843 ft. / 3000m Storage Temperature -4-149°F / -20-65°C
Storage Humidity 10-90% Storage Altitude 40,000 ft. / 12,192m

Limited Warranty (parts & labor)

3 years

Additional Features

  • Advanced thermal capabilities
  • Ethernet Control and Communication
  • RS-232 Control and Communication
  • Landscape/portrait capable
  • Carbon footprint meter
  • Plug and Play (DDC/CI, DDC2B)
  • Scheduler (w/ real-time clock)
  • >
  • Screen saver function
  • Ambient light sensor (AmbiBright)
  • Screen saver function
  • Optional human sensor
  • Intelligent Wireless Data (Near Field Communications)
  • Second expansion slot
  • Expanded daisy chain (DP 1.2)
  • 6-axis color adjustment
  • Metal rear cabinet
  • POP
  • Side-by-Side
  • Handles
  • Variable picture modes
  • Advanced video settings (Noise Reduction, Adaptive Contrast)
  • Input labeling
  • Backlight adjust
  • Aspect ratio control
  • Built-in speakers
  • LED edge-lit backlighting
  • 10-bit color over HDMI
  • OPS/Expansion slot
SKU NEC-P553-OB
Barcode # 659699728742
Brand NEC
Brand NEC
Type Commercial Display
Screen Size 55"
Model Multisync P553
Shipping Cubic 0.017794000m3
