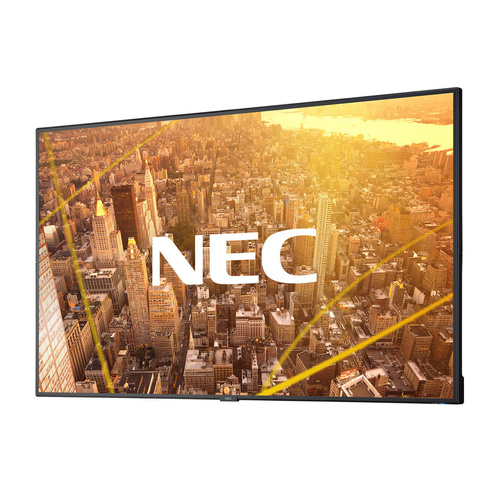

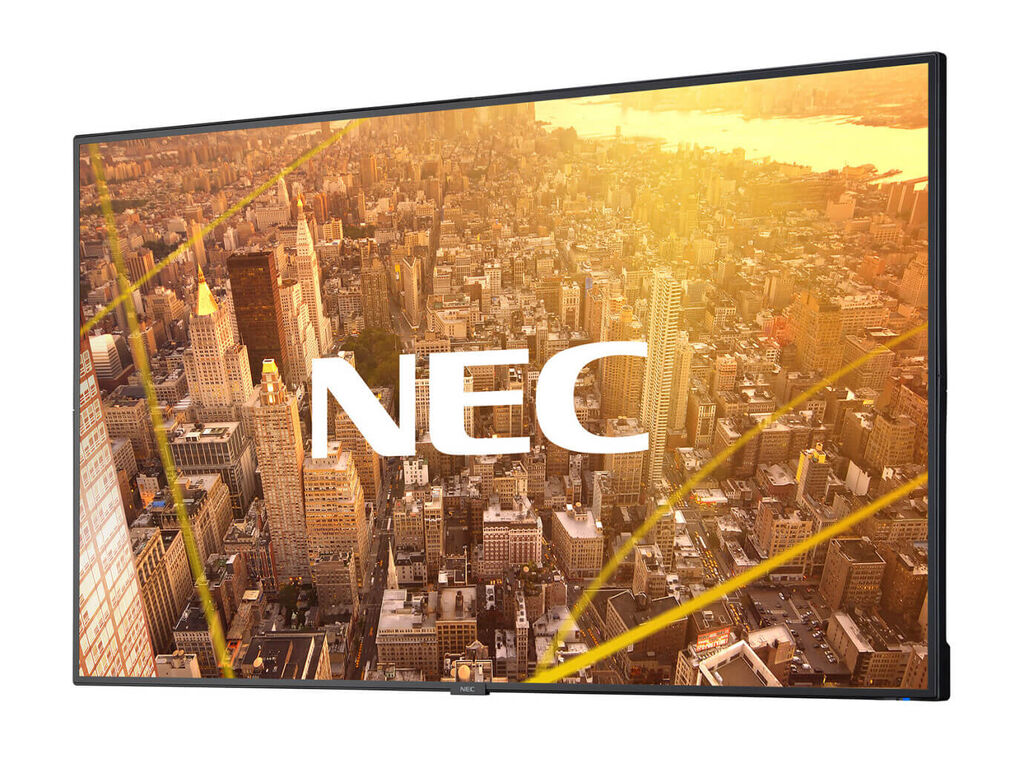

Seamless integration for great visual performance

Its thin bezel and super slim design perfectly complements today’s modern surroundings whilst multiple display inputs support flexibility and freedom. With fixing points conveniently located on the back of the screen, external equipment can be attached with seamless simplicity. Reasonable brightness levels offer visibility in controlled light surroundings. The professional haze filter is allowing excellent readability. Landscape and portrait capability matches the needs of both corporate huddle spaces and retail signage applications. With a built-in media player, the NEC C Series runs content directly from a USB drive or microSDHC card as a standalone solution but can also download contents via network. Futureproof connectivity handles input from multiple sources. Don’t let technology impact design – get seamless integration with the NEC C Series!

(NEC-C431-OB)

Display

Panel Technology AMVA3 with Edge LED backlights
Active Screen Area (W x H) [mm] 941 x 529
Screen Size [inch/cm] 43 / 107.9
Brightness [cd/m²] 500, 280 Eco (shipment setting)
Contrast Ratio (typ.) 4000:1
Viewing Angle [°] 178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn] 1.073 (10bit)
Response Time (typ.) [ms] 8 (grey-to-grey)
Haze Level [%] Pro (44)
Supported Orientation Face Up 1; Landscape; Portrait

Synchronisation Rate

Horizontal Frequency [kHz]  15.625/15.734, 31.5 - 91.1
Vertical Frequency [Hz] 50.0 - 85.0 (Analog Input) / 24.0 - 85.0 (Digital Input)

Resolution

Native Resolution 1920 x 1080
Supported Resolutions 1024 x 768;
1280 x 1024;
1280 x 720;
1280 x 768;
1280 x 800;
1280 x 960;
1360 x 768;
1400 x 1050;
1440 x 900;
1600 x 1200;
1680 x 1050;
1920 x 1080;
1920 x 1200;
800 x 600

Connectivity

Input Video Analogue 1 x VGA
Input Video Digital 1 x DisplayPort (with HDCP); 3 x HDMI (with HDCP)
Input Audio Analogue 2 x 3,5 mm jack
Input Audio Digital 1 x DisplayPort; 3 x HDMI
Input Control 1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data 1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Output Control remote control wire (3,5mm jack)

Sensors

Ambient Light Sensor Integrated, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable

Electrical

Power Consumption [W] 50 (Normal Operation)
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS

Environmental Conditions

Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80

Mechanical

Dimensions (W x H x D) [mm] 971 x 559 x 45
Weight [kg] 12.5
Bezel Width [mm] 12.4 (left and right); 12.4 (top and bottom)
VESA Mounting [mm] 300 x 300 (FDMI); 4 holes; M6
Ingress Protection IP5X (front); IP2X (back)

MediaPlayer

Supported File Storage / File System MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
SKU NEC-C431-OB
Barcode # 5028695113800
Brand NEC
Brand NEC
Type Commercial Display
Screen Size 43 in
Model MultiSync C431
Shipping Cubic 0.017794000m3
