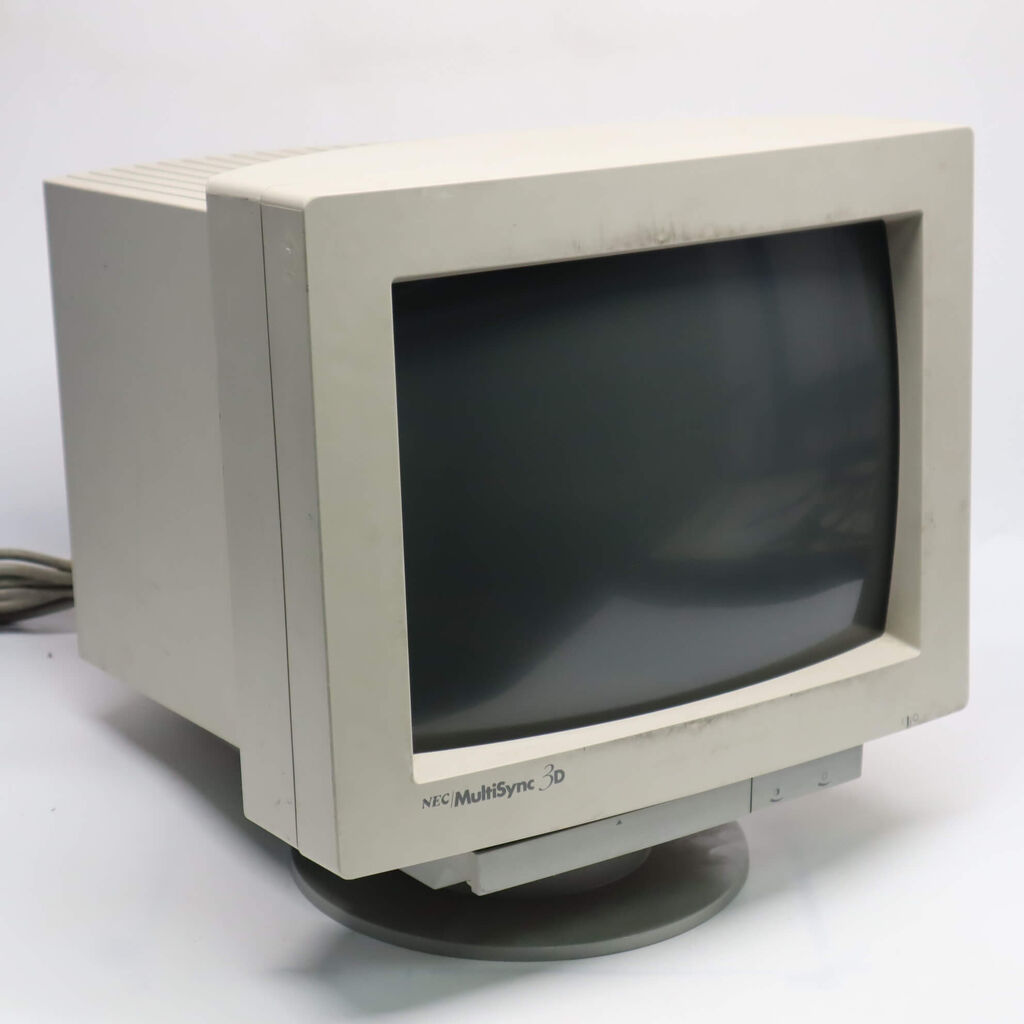

The MultiSync 30 Color Monitor, an Intelligent Monitor from NEC, is a microprocessor based, digital controlled multiple frequency Color Monitor. The MultiSync 30 Color Monitor automatically adjusts to graphics adapter scanning frequencies between 15.5 kHz and 38 kHz (Horizontal), and between 50 Hz and 90 Hz (Vertical).

(NEC-JC-1404HMR-BGrade)

Picture Tube 13 Visual inches diagonal
90 degree deflection, 0.28mm dot pitch
Dot type black matrix,
Not-long persistence phosphor, Dark bulb,
Direct etch
Input Signal Video
  • TTL Level Positive
  • ANALOG 0.7 Vp-p/7 50 Positive

Sync.

  • Separate sync. TTL Level
    Horizontal sync. Positive/Negative
    Vertical sync. Positive/Negative
  • Composite sync. TTL Level Positive/Negative
  • Composite sync. on Green Video sync. 0.3Vp-p Negative
    (Video 0.7Vp-p Positive)
Display Colors TTL Input: 8/16/64 colors
Analog Input: Unlimited colors
Synchronization Horizontal: 15.5 kHz to 38 kHz (Automatically)
Vertical: 50 Hz to 90 Hz (Automatically)
Resolution Horizontal: 1024 dots
Vertical: 768 lines (interlaced)
Video Band Width 45 MHz
Active Display Area Horizontal: 240mm
Vertical: 180mm
 (Active display area is changed)
Misconvergence Less than 0.6mm
Power Consumption 73W



SKU NEC-JC-1404HMR-BGrade
Barcode # 615678924147
Brand NEC
Brand NEC
MPN JC-1404HMR
Screen Size 14 Inches
Model NEC MultiSync 3D
Connectivity VGA
Shipping Cubic 0.017794000m3
