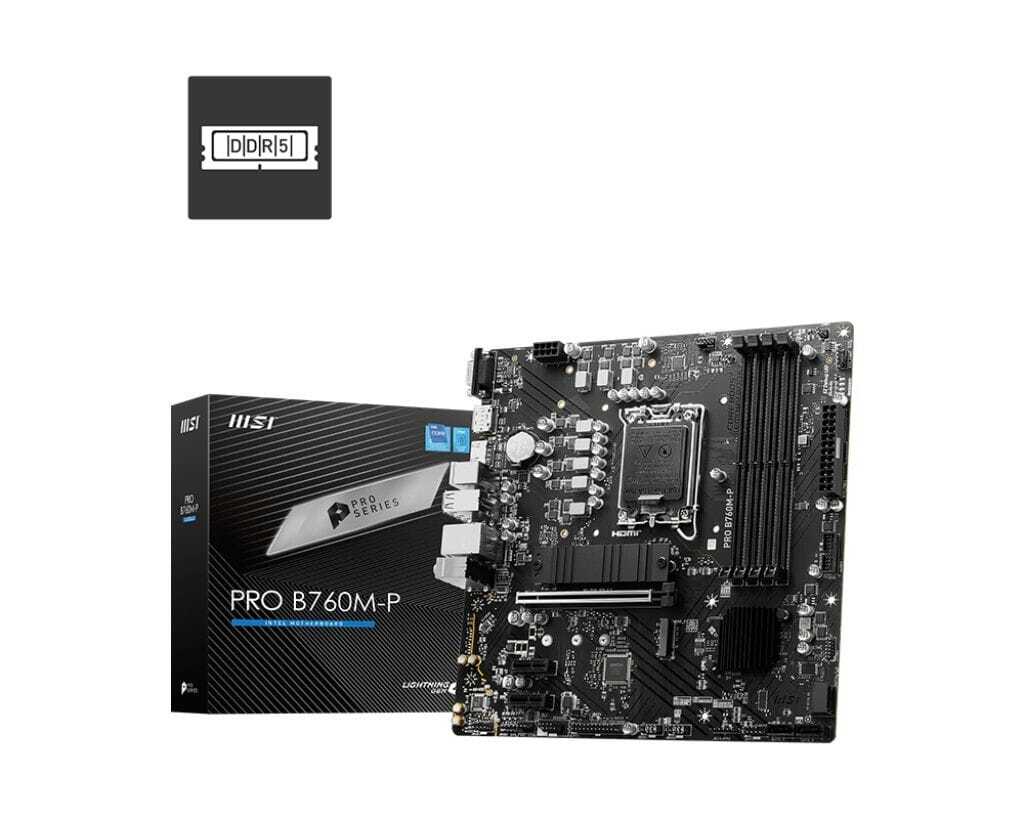

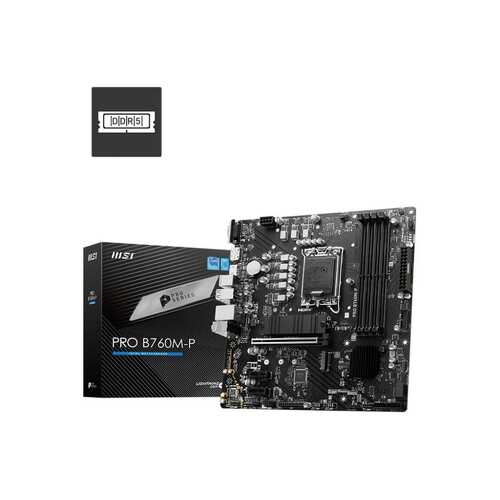

MSI PRO B760M-P mATX Motherboard, 4x DDR5~192GB, 1x PCI-E x 16, 2x PCI-E x 1, 2x M.2, 4x SATA, 1x USB 3.2 , 4x USB 2.0, 1x USB-CSpecifications:CHIPSET INTEL B760CPU SUPPORT Supports 12th/13th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors LGA 1700MEMORY 4x DDR5, Maximum Memory Capacity 192GBONBOARD GRAPHICS 1x HDMI1x DisplayPort1x VGASupport HDMI 1.4, maximum resolution of 4K 30Hz*Support DP 1.4, maximum resolution of 4K 60Hz*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60HzEXPANSION SLOT1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 PCIe 4.0 supports up to x16 (From CPU)PCI_E2 PCIe 4.0 supports up to x1 (From Chipset)PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)STORAGE 2x M.2 slotM.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G portUSB 4x USB 2.0 (Rear)4x USB 2.0 (Front)1x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type C (Rear)INTERNAL I/O 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.02x USB 3.2 Gen1 Type AOPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bitPCB DIMENSION mATX 243.84mmx243.84mm

(MBM-B760M-P)
