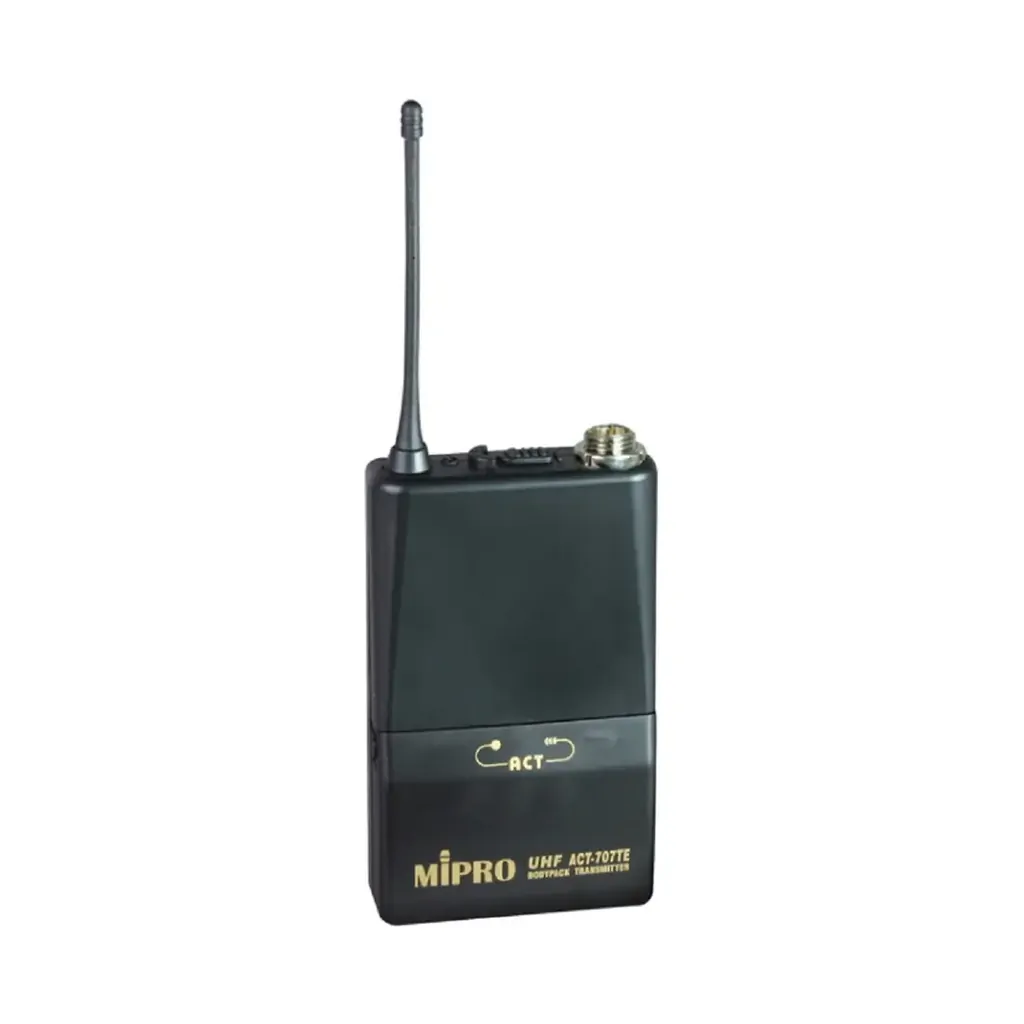

ACT-707TE Standard BodyPack Transmitter

The MIPRO ACT-707TE Standard Bodypack Transmitter that utilizes the world's first ACT (Automatic Channel Targeting) function, which provides rapid automatic channel setting and boasts an advanced efficient transmitting and low power consumption circuit design. Its LED indicator displays power on/off and battery status while possessing an impedance selectable switch for microphone or guitar, and built-in sensitivity level adjustor. Compact, lightweight and streamline shape for easy wearing, it also features an innovative "Photo-cell Coupling" high dynamic range and high fidelity modulation circuitry which is capable of accepting high input level and less distortion. Furthermore, an industry standard mini-XLR 4-pin (TA4F) connector is utilized for quick and screw lock connection and accepts lavaliere, headworn microphone and guitar inputs with level adjustments. It also has a 22 hour battery life per single 9V battery.

  • Plastic Housing
  • LED indicator displays power on/off and battery status
  • Compact, lightweight and streamline shape for easy wearing
  • Impedance selectable switch for microphone or guitar, and built-in sensitivity level adjustor
  • Industry standard mini-XLR 4-pin (TA4F) connector is utilized for quick and screw lock connection and accepts lavaliere, headworn microphone and guitar inputs with level adjustments
  • Belt clip allows 360 degrees rotating to suit transmitter wearing
  • World's first ACT (Automatic Channel Targeting) function provides rapid automatic channel setting
  • Innovative "Photo-cell Coupling" high dynamic range and high fidelity modulation circuitry is capable of accepting high input level and less distortion

MU-53L Unidirectional Lavalier Microphone

Black cardioid lavalier microphone offering high directionality and effective noise rejection for clear, focused vocal capture. Designed for presentations, hosting, theatrical performances, and professional applications requiring intelligible speech in noisy environments.

  • Cardioid polar pattern effectively reduces ambient noise for clear and focused vocal pickup.
  • Compact lavalier design easily conceals in clothing, ideal for speeches, hosting, and stage performances.
  • High-fidelity audio with wide frequency response and fast transient response delivers natural vocal clarity.
  • Wide dynamic range and low distortion ensure stable and detailed sound reproduction.
  • Replaceable foam windscreen effectively reduces breath and wind noise while maintaining clear audio.

(ACT-707TE-Mic-R)

ACT-707TE

Housing Material Plastic
Oscillation Mode PLL Synthesized
Carrier Frequency Range (6B) UHF 644-668MHz
Bandwidth 24MHz
RF Output Power 10~30mW (or dependent on applicable country regulations)
Spurious Emissions <-55dBc
Max. Deviation Range ±68KHz, with compandor and level limiting.
Maximum Input Level 0dBV
Microphones MU-53L, MU-55L, MU-53HN, MU-55HN
Input Connector Mini-XLR connector
Battery 9V x 1 (alkaline)
Display Status LED power and low battery warning
Dimensions 63(W)x105(H)x21(D)mm / 2.5(W)x4.1(H)x0.8(D)"
Weight 85g / 3.0oz
Note Varied specifications on carrier frequency range, maximum deviation, RF output power and spurious emission to comply regulation of different countries.

MU-53L

Model MU-53L
Name Unidirectional Lavalier Microphone
Type Condenser
Polar Pattern Cardioid
Capsule Size 10 mm
Sensitivity -46 dBV/Pa
Frequency Response 50 Hz – 18 kHz
Max SPL 142 dB
Connector MIPRO 4-Pin Mini XLR
Cable Length 150 cm
Color Black
Weight Approx. 20 g
SKU ACT-707TE-Mic-R
Barcode # 615678871717
Brand MIPRO
Brand MIPRO
Form Factor Bodypack Transmitter
Model ACT-707TE
Shipping Cubic 0.017794000m3
