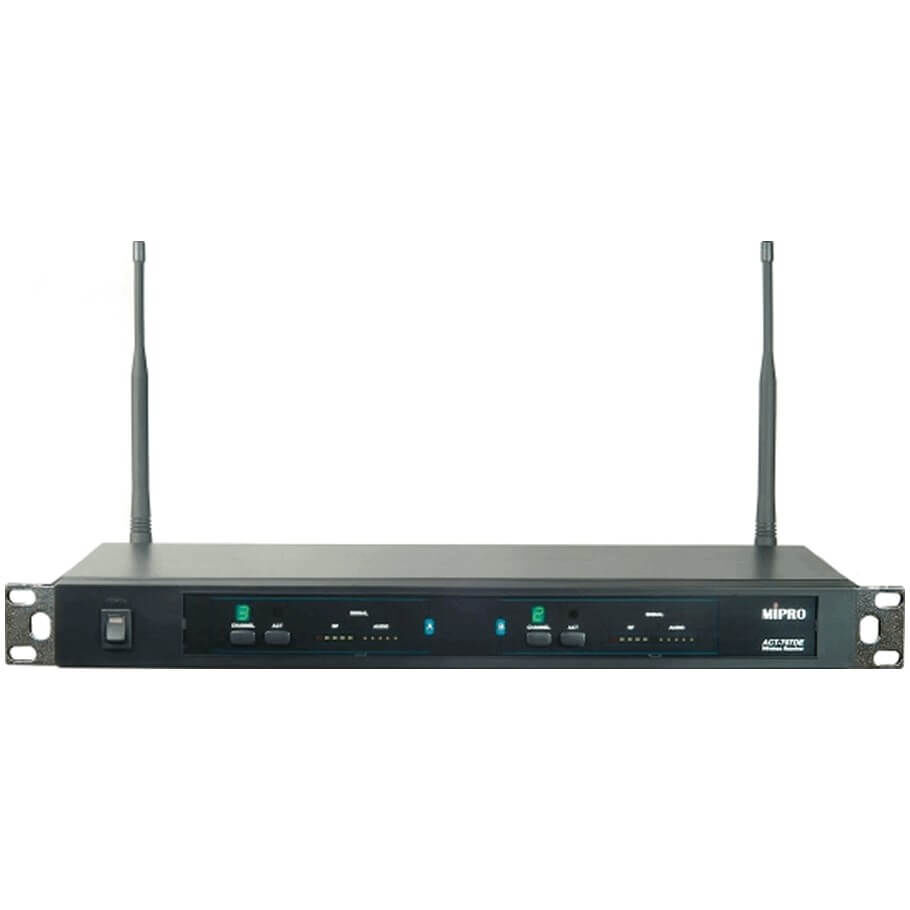

• ACT-707DE is a 1-rack receiver in a compact metal casing.
  • Reliable true diversity reception for maximum range with dual "Pilotone & NoiseLock" circuit prevents interferences.
  • Bright and easy-to-read LED display shows numeric channel and RF/AF strengths.
  • Press the "SCAN" button and the receiver will auto-scan and lock on to an open, interference-free frequency.
  • Then press the "ACT" button to automatically upload the receiver frequency to the transmitter.
  • Output level and dynamic range are accurately pre-adjusted to equal the microphone capsule's sensitivity, thus ensuring optimal performance of the system.
  • 16 systems can be operated simultaneously in one frequency band.
  • Patented and meets worldwide wireless regulations and approvals.

(ACT-707DE-R)

Main Frame Size  EIA standard 1/2-rack unit
Channels Single-channel
Main Frame Construction  Metal frame, plastic panel
Receiver Module Fixed
Oscillation Mode PLL synthesized
Stability ±0.005% (-10~50℃)
Carrier Frequency Range UHF 620~950MHz
Bandwidth 24MHz
Receiving Mode Diversity receiving
Sensitivity 6dBμV, at S/N>80dB, 40KHz deviation
Max. Deviation Range ±68KHz, with level limiting
S/N Ratio >105dB(A)
T.H.D. <0.5% @ 1KHz
Frequency Response 50Hz~18KHz±3dB, with high-pass filter
Maximum Output Level  Mic-level: -20dBV/100Ω, Line-level: -4dBV/5KΩ
Output Connectors XLR balanced & 6.3φ phone jack unbalanced. Multi-channel system can switch
between separate or mixed output.
Audio Output Adjustment The world's first wireless system with output level accurately pre-adjusted to equal
to the microphone capsule sensitivity and ensure optimal performance.
Squelch Innovative "PiloTone & NoiseLock" dual-squelch circuit.
AC Power Supply External 90~264V AC switching power supply
DC Power Supply  0.5A, 12~15V DC
Dimensions 210(W)×44(H)×206(D)mm / 8.3(W)x1.7(H)x8.1(D)"
Weight  0.9kg / 2.0lbs
Matching Transmitters ACT-707HE, ACT-707H, ACT-707TE, ACT-707T
Note  Specifications on carrier frequency range and maximum deviation vary to comply
with regulations of different countries.



SKU ACT-707DE-R
Barcode # 615678507425
Brand MIPRO
Brand MIPRO
Type Wireless Receiver
Model ACT-707DE
Shipping Cubic 0.017794000m3
