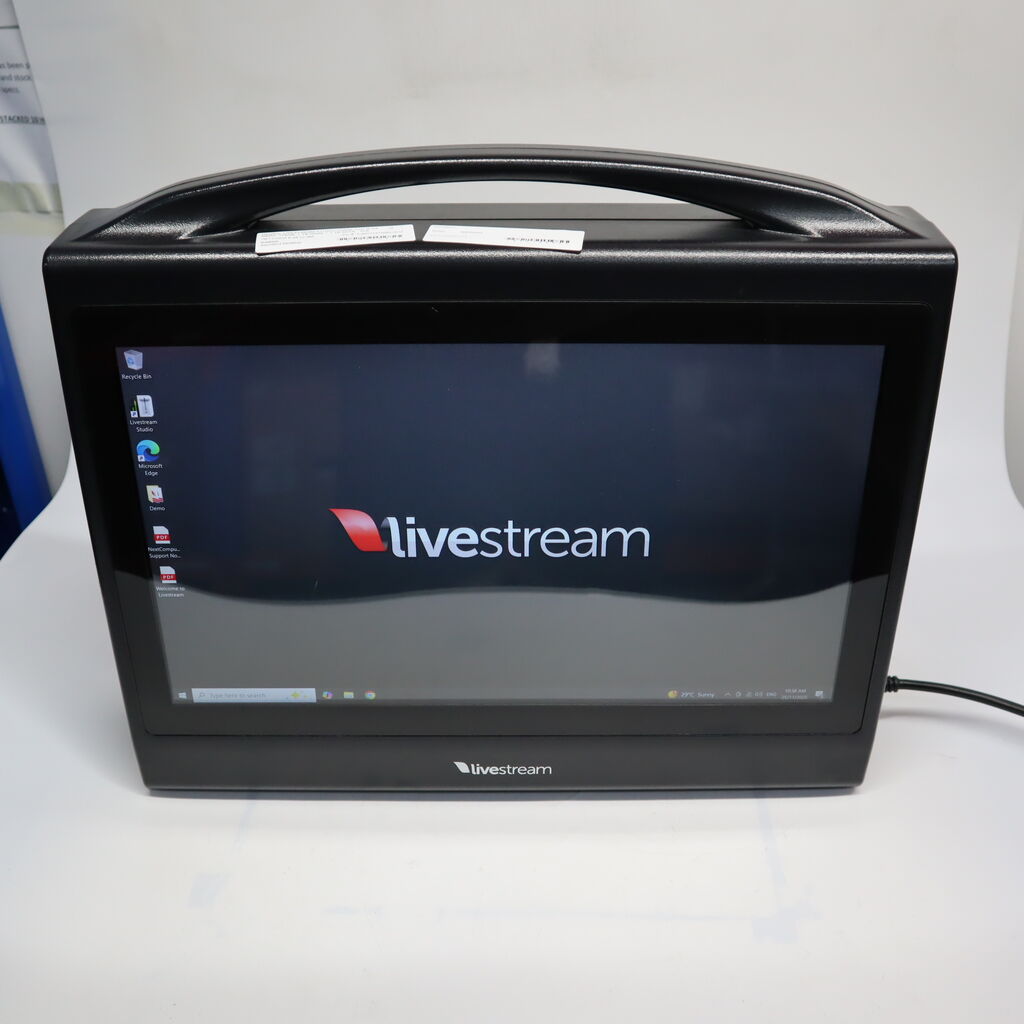

Livestream Studio HD550 Live Production Switcher SKU: LivestreamStudioHD550-R
ON SALE
Livestream Studio HD550 Live Production Switcher SKU: LivestreamStudioHD550-R
$1,399.00
SAVE $600.00 (30%)
Note: Used, Tested and Working Condition, Includes Livestream HD550 Production Switchers and Carry Bag
Equipped with all the features of Livestream Studio 3.0 but offered in a compact companion-like form factor, the Livestream Studio HD550 is a truly portable all-in-one live production suite that can be easily carried anywhere. Just grab it by the handle or place it in the included carry bag and take it with you wherever you need, including on a plane.
Features include ten remote cameras, two media tracks, four ISO recorders, and three graphics tracks with up to 20 hours of broadcast recording onto internal storage. Five built-in Blackmagic DeckLink Mini Recorder cards and one Mini Monitor card provide a variety of video and audio outputs, including five switchable SDI/HDMI inputs. Ingest sources in up to 1080p resolution and apply effects and on-screen T-Bar duration adjustable transitions. Use the HD550 for in-venue broadcasting, live to tape production, and network and local television programming with or without streaming live to the web.

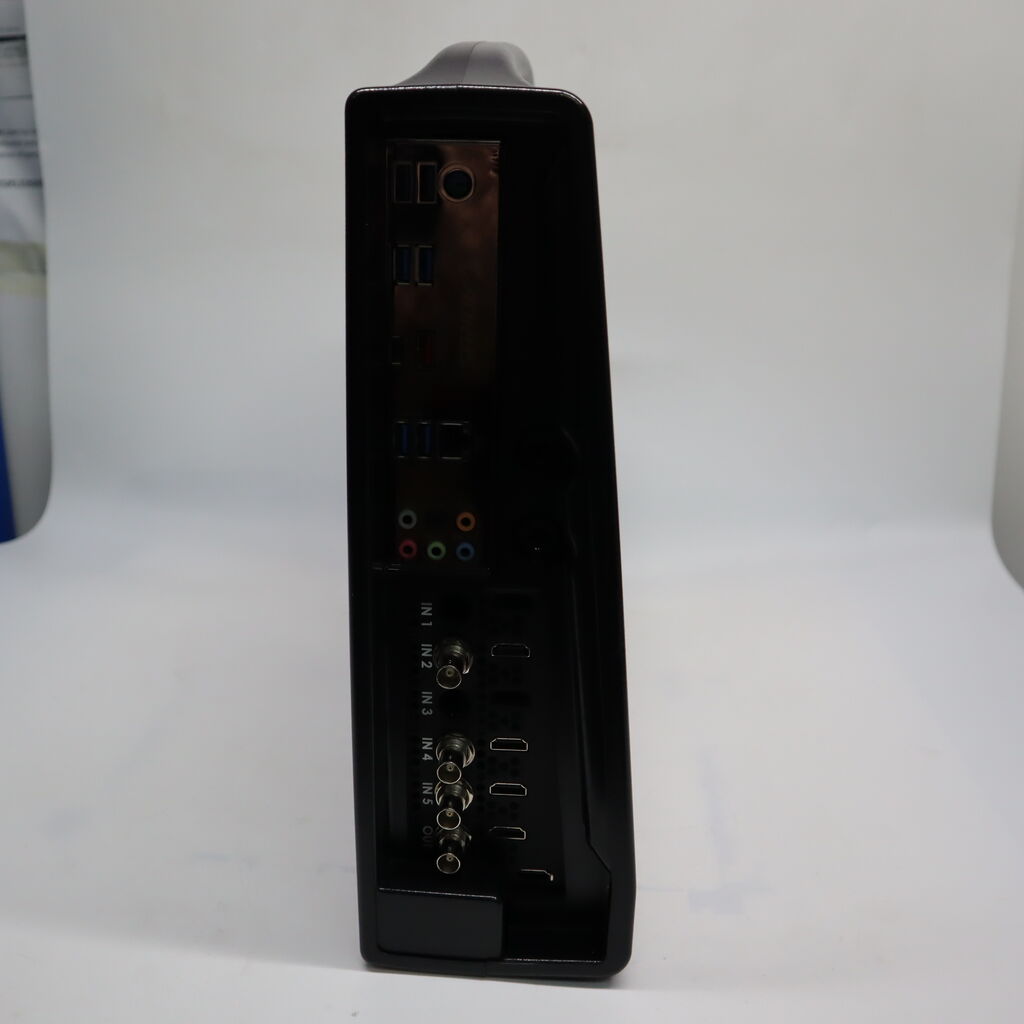

Input / Output
- DeckLink Mini Recorder input cards
- Blackmagic Design DeckLink Mini Monitor output card
- Five HDMI/SDI switchable inputs
- Five stereo / 40 mono HD-SDI embedded audio switchable inputs
- 1/8" analog audio input
- SDI/HDMI switchable output (extended screen output using HDMI)
- 1/8" analog audio monitoring output
Effects / Transitions
- Mixer and Effects Bank (M/E) with no upstream keyer
- SMPTE Wipe transition
- Cut & Fade auto transition with adjustable duration in frames (via on-screen T-Bar or keyboard shortcuts)
- Three graphics DSK channels
- One GFX1 channel and one GFX2 channel
- Independent or locked transition controls (fade/cut)
Other Features
- Built-in broadcast quality format converter for every input, with automatic format detection
- Allows the use of any camera and video source without matching video formats
- Ten remote camera tracks
- Load JPG or PNG files (full transparency support with PNG files)
- Add text (set position, font, size, color) over any loaded image file within GFX1 or GFX2
- Interlacing and timecode support
- Full compatibility with Blackmagic Design Media Express and Adobe Premiere
- Presets in up to 720p HD
- Incorporated follow feature with audio crossfade support when fading two video sources
(LivestreamStudioHD550-R)
| HD-SDI Inputs | 5 |
|---|---|
| Embedded Audio Input | 5 Stereo or 40 Mono HD-SDI embedded audio inputs |
| Audio Monitoring (1/8”) | 1 |
| HDMI Inputs | 5 |
| HDMI Outputs | 1 |
| Standard/High Definition SDI Output | 1 |
| Composite Input (BNC) | 0 |
| Composite Output (BNC) | 0 |
| S-VIDEO Input | 0 |
| S-VIDEO Output | 0 |
| Component Input | 0 |
| Component Output | 0 |
| Analog Audio (1/8”) Input | 1 |
| Analog Audio (1/8”) Output | 1 |
| Analog Audio (1/4”) Input | 0 |
| Analog Audio (1/4”) Output | 0 |
| AES/EBU Input | 0 |
| AES/EBU Output | 0 |
| Additional AES/EBU OR Analog Audio Output | 0 |
| Custom Carry Bag | Included |
| Livestream Studio™ Keyboard | Included |
| Media Sources | 7 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 3 GFX (graphics), 2 Color Bars / Background Color |
| Remote Camera | 10 x Remote camera module for ingesting video/audio over local WiFi or Ethernet network, downlinking streams, and Interviews via WebRTC. |
| Format Converter | Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats |
| Built-In Multiview | On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens. |
| External Multiscreen | 1x Extended Screen output using HDMI |
| Video Switcher/Mixer | Mixer & Effects Bank (M/E) with no upstream keyer. transitions : SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts) |
| Graphics Downstream Key | 3 x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2 and onechannel for GFX 3. Independent or locked transition controls (fade/cut/wipe). Preview on multiview |
| Graphics & Titling | Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2 or GFX3 |
| Video Clip Playback | 2 Media Players - Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition |
| Recording | Up to 4 simultaneous isolated source recordings. MJPEG with uncompressed audio. Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere. |
| Recording Capacity | ~20 hours at 1080i (Using 1 TB built in Hard Drive with recorder set to record at 100Mbps MJPEG AVI) |
| Live Streaming | HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to HD 720p. Multiple simultaneous bit-rates, including mobile quality for playback over 3G on mobile devices (iPhone/Android). Integrated live streaming to Livestream or any other RTMP compatible service including Ustream, YouTube Live, Akamai, Wowza Media Server, Twitch. |
| Audio Mixing | Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones. Incorporated video switcher follow feature with audio crossfade support when fading two video sources. |
| Supported Formats | 4k*HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60SD: 625/25 PAL, 525/29.97 NTSC*The pre-installed Blackmagic Design capture devices in the HD31/HD51/HD510/HD550/HD1710 do not support 4k |
| Playback Media Formats | GFX: JPEG or PNG image files with transparency support. DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3 |
| Record Media Formats | AVI MJPEG with uncompressed audio |
| Operating System | Windows 10 Pro |
| Built-in Display | Integrated 17” (1920x1200) HD LED LCD |
| CPU | Intel Core i9-9900X 10-Core Processor |
| Graphics Card | Nvidia GeForce GT 610 |
| Storage | 1TB HDD and 1TB SSD |
| RAM | 128GB 8 total DDR4 2666 MHz RAM |
| Processing | Video: 4:2:2, 10 bit Color (REC 601, REC 709) Audio: 48 kHz, 24-bitrEF IN/Genlock (Requires genlocking the two Blackmagic Design cards via two separate connectors) |
| Built-in Video Input/Output Cards | 5 Blackmagic Design DeckLink Mini Records (PCI), 1 Blackmagic Design DeckLink Mini Monitor (PCI) |
| SKU | LivestreamStudioHD550-R |
| Barcode # | 615678702387 |
| Brand | Livestream |
| Brand | Livestream |
| Type | Live Video Production Switcher |
| Model | HD550 |
| Shipping Cubic | 0.017794000m3 |
