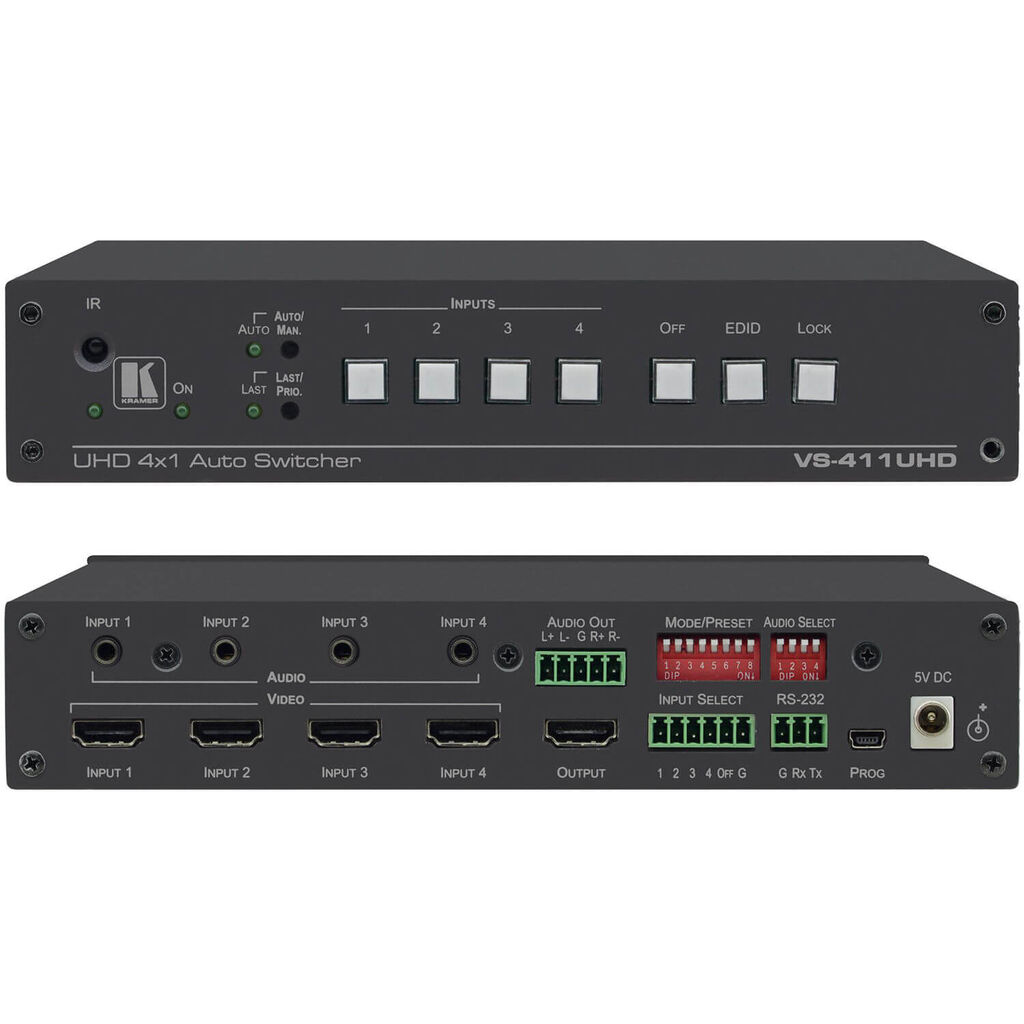

VS−411UHD is an automatic switcher for 4K@60Hz (4:2:0) HDMI and analog audio signals. VS−411UHD automatically switches one of four HDMI inputs to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher−priority video signal is detected. They also support Kramer’s Step−in over HDMI technology

Features

  • Max. Data Rate 8.91Gbps (2.97Gbps per graphic channel).
  • Max. Resolution 4K@60Hz (4:2:0).
  • Compliance HDCP and DVI 1.0.
  • Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
  • Features Kramer reKlocking Technology Rebuilds the digital signal to travel longer distances.
  • HDTV Compatible.
  • Customized Audio Output Embed a companion analog audio signal into its HDMI input signal, de-embed the audio from the HDMI input and route it to the balanced stereo audio line out, de-embed HDMI ARC from the output and route it to the balanced stereo audio line out, or route the analog audio inputs directly to the stereo audio line out.
  • Automatic Video Input Detection & Selection.
  • Auto Power Off When no HDMI input for 10 seconds (selectable).
  • Step-In Over HDMI Technology.
  • Active Switching Selectable manual or fast auto switching according to last connected or preset priority.
  • Selectable HDCP Switching.
  • EDID Configuration Options.
  • Default EDID.
  • Contact Closure For remote manual switching override.
  • Lock Button
  • Firmware Upgrade Over RS232, miniUSB.
  • Software Support Protocol 3000, EDID Designer, KUpload via RS232.
  • Varied Control Options Front panel buttons, contact closure, IR, RS232 Protocol 3000.
  • Easy Installation Compact MegaTOOLS fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

(KramerVS-411UHD-R)

INPUTS 4 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks
OUTPUTS 1 HDMI connector, 1 balanced stereo audio on 5−pin terminal block
PORTS 1 RS−232 on a 3−pin terminal block, 1 mini USB for programming
COMPLIANCE WITH HDMI STANDARD Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels, CEC
MAX DATA RATE 8.91Gbps (2.97Gbps per graphic channel)
SUPPORTED RESOLUTIONS Up to 4K x 2K, 4K@60Hz (4:2:0)
CONTROLS Front panel buttons, contact closure, IR, RS−232 Protocol 3000
SOFTWARE SUPPORT Protocol 3000, EDID Designer, K−Upload
POWER CONSUMPTION 5V DC, 500mA
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE −40° to +70°C (−40° to 158°F)
HUMIDITY 10% to 90%, RHL non−condensing
Product Dimension 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
Product Weight 0.9kg (2.0lbs) approx



SKU KramerVS-411UHD-R
Barcode # 615678969872
Brand Kramer
Brand Kramer
Type HDMI Switcher
Model VS-411UHD
Shipping Cubic 0.017794000m3
