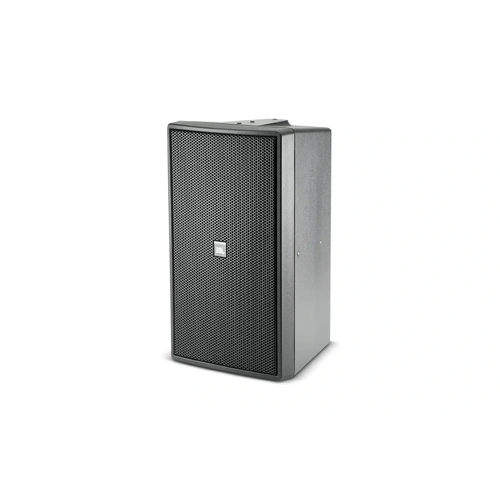

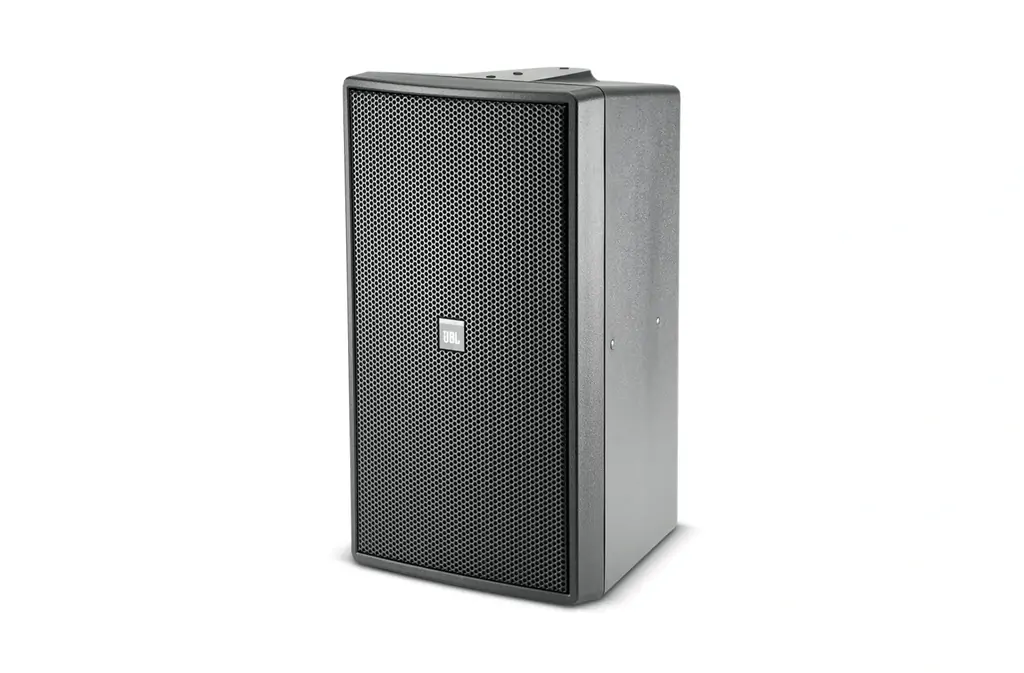

The Control 29AV-1 provides improved voicing for extremely flat, high-fidelity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.

The rotatable high-frequency horn allows use of the speaker in either vertical or horizontal orientation. Consistent coverage ensures excellent sound character throughout the listening area. Moderate magnetic shielding allows use of the speaker as close as 230 mm (9) to video monitors.

The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 8Ω impedance allows use of multiple speakers on a loudspeaker line.

Features

  • Extended bandwidth, extremely smooth frequency response.
  • 110° x 85° HF coverage, rotatable horn.
  • 110 W transformer for 70 V or 100 V lines, with 8 ohm thru.
  • SonicGuard™ overload protection.
  • 200 mm (8 in) Kevlar cone woofer,
    25 mm (1 in) titanium diaphragm compression driver.
  • Sealed input panel cover and screwdown input terminals.

(JBLControl29AV-R)

Frequency Range 37 Hz 18 kHz (-10 dB)
Power Capacity 300 W Continuous Program Power; 150 W Continuous Pink Noise
Transformer Taps 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal
Frequency Response 45 Hz 18 kHz ( 3 dB)
Maximum SPL @ 1m Short-Term: 120 dB; Long-Term: 114 dB
Nominal Sensitivity 90 dB (2.83V / 1m)
Nominal Coverage Angle 110 H x 85 V, rotatable
Directivity Factor (Q) 7.2 dB, averaged 500 Hz to 16 kHz
Directivity Index (DI) 8.6 dB, averaged 500 Hz to 16 kHz
Nominal Impedance 8 ohms
Minimum Impedance 6.3 ohms @ 230 Hz
Crossover Network 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
Low Frequency 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
High Frequency 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure Material High impact polystyrene
Grille Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
Environmental

IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.

Terminations Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
Safety Agency Rating Transformer is listed per UL1876
Colors Black
Dimensions (H x W x D) 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
Net Weight (ea) 12.2 kg (26.8 lb.)
Shipping Weight (ea) 14.0 kg (30.8 lb.)
Optional Accessories MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
SKU JBLControl29AV-R
Barcode # 615678720350
Brand JBL
Brand JBL
Type PA Speaker
Colour Black
Model Control 29AV
Connectivity Wired
Number of Channels 2
Power 100 watts
Audio Inputs Dynamic Driver
Supported Modes 70V, 100V, and 8-ohm operation
Shipping Cubic 0.065720000m3
