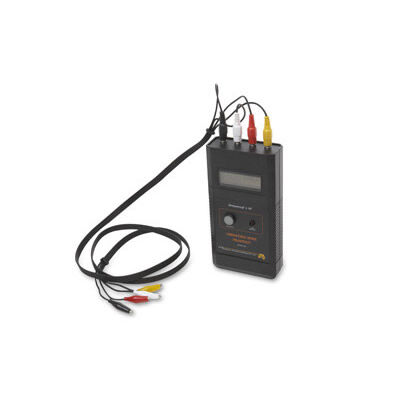

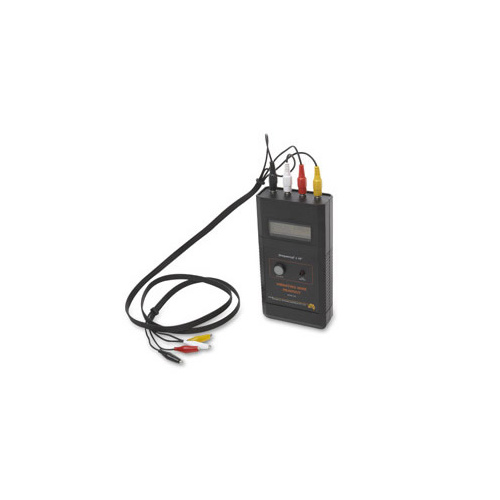

The Model 9120 Vibrating Wire Readout is an easy-to-use readout device intended for “pluck” type vibrating wire sensors. The readout offers excellent resolution and accuracy. Readings are displayed in frequency squared units compatible with all sensor calibration data and reads thermistors.

Application

Measurement of:

  • Vibrating Wire Piezometers
  • Vibrating Wire Strain Gauges
  • Vibrating Wire Stress Cells
  • Vibrating Wire Pressure Cells
  • Vibrating Wire Temperature Gauges

Features

  • Stable readout
  • High resolution
  • Excellent sensitivity
  • Long term stability
  • Easy operation
  • Direct reading in -frequency squared units
  • Low power CMOS design
  • Large character LCD display
  • Low battery indicator
  • Protective vinyl carry case

(Geo9120VWR)

Specifications

  • Range: 250 to 25000 Hz2 x 10-3
  • Accuracy: ± 0.05 % full scale
  • Resolution: 0.01% full scale
  • Excitation: 4 volt p-p square wave
  • Cable length: 1500 metres maximum
  • Operating temperature: -10 to 70C (0 to 50 recommended)
  • Battery life: Min of 16 hours continuous operation
  • Dimensions: 200mm x 100mm x 45mm
  • Weight: 500 g
SKU Geo9120VWR
Barcode # 634855090543
Brand HMA
Brand HMA
Type Vibrating Wire Readout
Model 9120
Shipping Cubic 0.017794000m3
