Untested, Sold as is

Includes HiTi CS-310 ID Card Printer, Type-B - USB Cable and IEC Cable ONLY, Does NOT include Ribbon or Manual

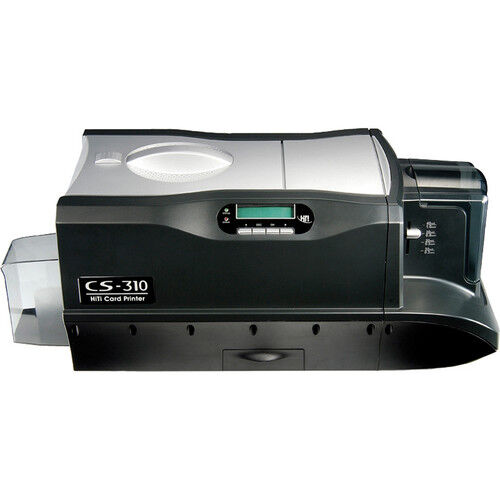

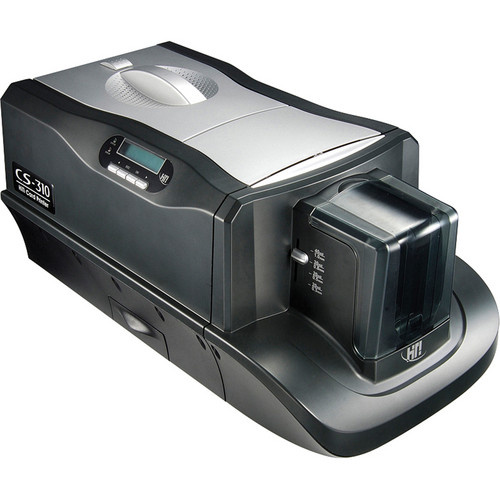

The CS-310 ID Card Printer from HiTi Digital, Inc. is a color dye sublimation and monochrome thermal transfer printer which is easily operated to produce high-quality ID cards.

It has a lever to easily select between media of different thicknesses which you may require to print membership cards, student, corporate and security photo ID cards. The CS-310 incorporates color performance technology allowing accurate color reproduction for true-to life skin tones, backgrounds and text. The color dye sublimation process uses ribbons instead of ink which results in up to 16.7 million continuous, rich colors. In the final step of the dye-sub process a clear film overcoat is applied, rendering your cards scratch-, fade- and water-resistant.

The HiTi CS-310 comes with the highly productive CardDésirée CS software which provides the necessary tools (for example, templates, and batch printing management) necessary to create professional ID cards which stand out from others with unique layouts and bar coding. The CS-310 also comes with an embedded module to encode contact smart cards.

Enrichment Color Performance

  • High definition dye-sublimation thermal transfer technology
  • Up to 16.7 million colors in continuous tone
  • HiTi color technology provides photo realistic quality on every print

Reliability and Durability

  • High speed single-sided, color or monochrome card printing
  • Continuous printing without duty cycle control
  • Ribbon breakage protection technology

Versatile Module Design

  • Embedded contact smart card encoding module
  • Optional contactless smart card encoding module

Easy-to-Use Features

  • Two-line and multi-language LCM display with printer status and operation command and option display
  • Included bundle software supports customized templates and batch printing management
  • Smart chip embedded for consumable identification and counterfeit ribbon prevention

(HiTiCS-310-BGrade)

Printing Method
Type

Single-sided Card Printer

Printing Technology

Color Dye Sublimation / Monochrome Thermal Transfer

Maximum Resolution

300 X 300 dpi

Ink Palette

CMYKO (O = Overcoat)

Performance
Ribbon Options

YMCKO (200 prints)
Resin K (1000 prints)
KO (500 prints)

Print Speed

Speed Mode: 24 sec per YMCKO single side
Premium Photo Mode: 32 sec per YMCKO printing

Memory

32MB
1MB Flash

Printer Duty Cycle

None

Print Archival Life

Not Specified by Manufacturer

Paper Handling
Card Sizes

CR-80: 3.38 (L) x 2.14" (W) (86 x 54mm)

Media Thickness

0.3 - 1.0 mm (12 - 40 mil)

Capacity

Input:
100 Cards (0.76 mm, 30 mil thickness)
Output:
100 Cards (0.76 mm, 30 mil thickness)

Ink Type

Dye sublimation ribbon

Connectivity
Interface

USB 1.1
USB 2.0 full speed

Driver

Windows 2000 / XP, Mac OS 10.2 and above

Modules

Contactless Smart Card Encoding Module (Mifare ISO 14443 type A available)
Magnetic stripe card encoder (Tracks 1, 2, 3)*

Physical
Status Display

Liquid Crystal Monitor (LCM)

Image Preview Display

No

Front Panel Controls

Yes

Power Requirements

100 ~ 240VAC; 50 ~ 60Hz

Dimensions

10.83 x 20 x 9.9" (275 x 508 x 251 mm)

Weight

20 lb (9.1 kg)

SKU HiTiCS-310-BGrade
Barcode # 601527710016
Brand HiTi
Brand Datacard
Type Card Printer
Model CS-310
Shipping Cubic 0.017794000m3
