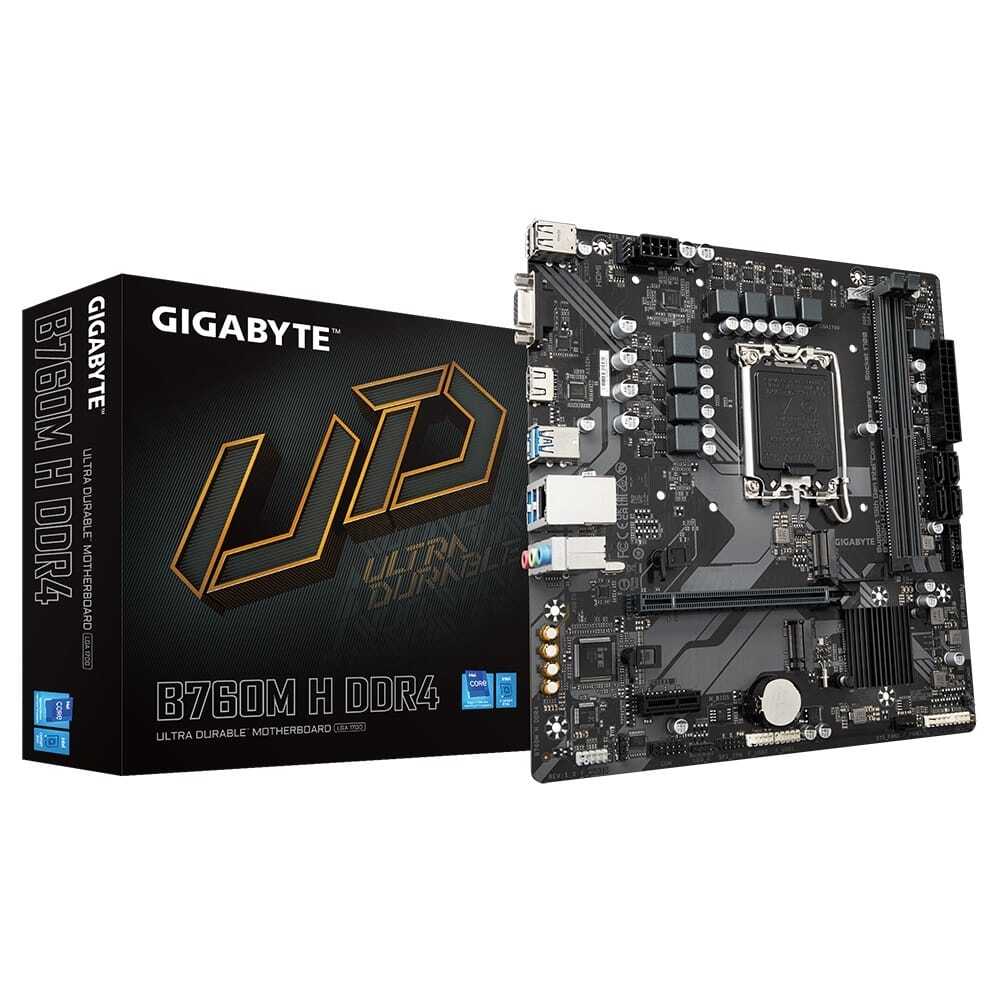

Gigabyte B760M H DDR4 Intel LGA 1700 m-ATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0,FEATURES:CPU: LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPUChipset: Intel® B760 Express Chipset.Memory:Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer 'Memory Support List' for more information.)Onboard Graphics:Integrated Graphics Processor-Intel® HD Graphics support:- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for HDMI 2.0 version and HDCP 2.3.
Expansion Slots:CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1Storage Interface:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumperBack Panel Connectors:2 x USB 2.0/1.1 ports1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacksOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorMicro ATX Form Factor; 23.0cm x 21.5cm

(MBG-B760MHDDR4)
