B-Grade Item, Corroded Battery Terminal

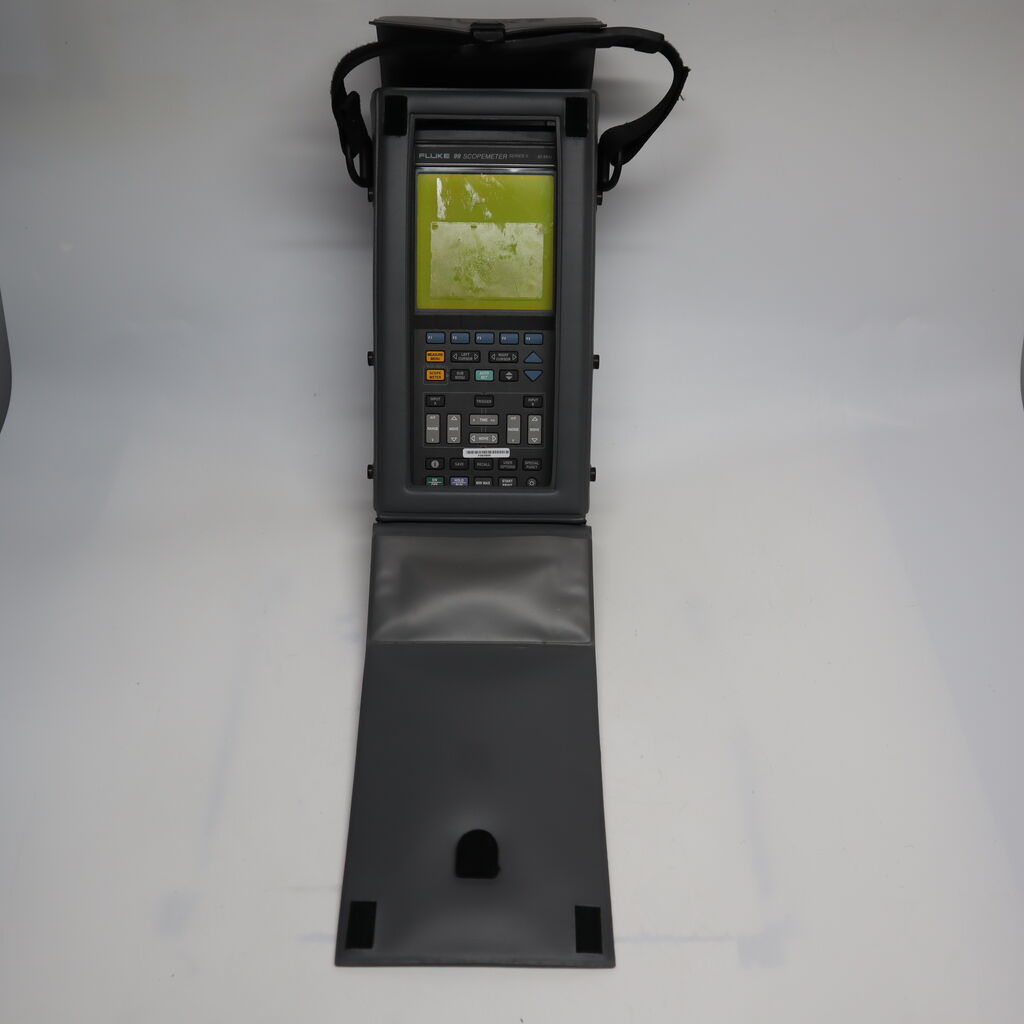

Fluke 99 ScopeMeter Series II
Your ScopeMeter test tool combines the capabilities of an easy-to-use digital storage oscilloscope with the versatility of a digital multimeter. When you select a measurement function, the test tool automatically chooses the best setup to analyze and compare complex waveforms, or simply to read voltage levels.

Features:

  • Digital Storage Oscilloscope
  • 3 2/3-digit, 5-MHz Digital MultiMeter (DMM).
  • Battery power.
  • Measure menu for quick setup.
  • Continuous Auto Set function for hands-off signal probing.
  • Large memory for front panel Setups, Waveforms, and Screens.
  • Min Max TrendPlot function with time stamp for long term recording.
  • Optical to RS-232 interface port, 600V isolation
  • Instant Information key.

(Fluke99Scopemeter-BGrade)

Vertical
Frequency Response, -3 dB DC to >50 MHz
AC coupled <10 Hz direct, <1 Hz with 10:1 probe
Coupling AC, DC, Ground
Rise Time <7 ns
Sensitivity 1 mV to 100 V/div to 1 kV/div with 10:1 probe
Current probe scaling 1 mA/div to 100,000 A/div
Modes A, -A, B, -B, A+B, A-B, A=x B=y
Input Impedance 1 M?//25 pF direct, 10 M?//15 pF with 10:1 probe
Vertical Resolution 8 bit (256 levels)
Accuracy ±(2% +1 pixel), add 3% for 1 and 2 mV/div
Horizontal
Modes Recurrent, Single Shot, Roll
Recurrent 10 ns to 1 s/div
Dual input alternating 5 ns (10 ns) to 20 µs/div
Dual input chopped 50 µs to 1 s/div
Single Shot 100 ns to 1 s/div
Dual input alternating 100 ns to 20 µs/div
Dual input chopped 50 µs to 1 s/div
Roll 2 s to 60 s/div
Dual input chopped 2 s to 60 s/div
Accuracy +(0.1% + 1 pixel)
Record Length 256 or 512 samples (10 or 20 division)
GENERAL
Display Super Twisted Liquid Crystal
Size 84 x 84 mm (4.7" diagonal)
Resolution 240 x 240 pixels, 25 pixels/div. in SCOPE mode
Contrast User adjustable
Backlight Electroluminescent
Power
Internal Battery Pack NiCad 4.8V nominal
Operating Time Typical 4 hours
Power Adapter/Battery Charger Charging Time: Typical 16 hours
Alternate battery 4 Alkaline C cells (nonrechargable)
External Supply 8 to 20V DC, 5W typical via 5 mm jack
Memory back-up battery CR2032
Environmental
Temperature Operating: 0 °C to 50 °C
Storage: -20 °C to 70 °C
Humidity Operating: 20 °C to 30 °C, 90% RH noncondensing
30 °C to 50 °C, 70% RH noncondensing
Storage: 95% RH
Altitude Operating: 3 km (10,000ft)
Storage: 12 km (40,000ft)
Shock and Vibration per MIL-T-28800 for Class 3
Electromagnetic Interference per MIL STD 461
Mechanical
Size excluding holster 60 x 130 x 260 mm (2.4 x 5.1 x 10.2 inches)
Size including holster 65 x 140 x 275 mm (2.5 x 5.5 x 10.8 inches)
Weight excluding holster 1.5 kg (3.3 lbs)
Weight including holster 1.8 kg (4.0 lbs)
Safety
MAX. Input voltage on INPUT A or INPUT B 300V rms, 600V rms with 10:1 probe
MAX. Input voltage on EXTernal input 300 V rms
Surge Protection 4 kV, 6 kV with 10:1 probe per IEC 664 and ANSI/IEEE C62.41 test method
Maximum Isolation to Earth 600V rms from any terminal
Optical Interface Optically Isolated to 600V rms
SKU Fluke99Scopemeter-BGrade
Barcode # 634855138719
Brand Fluke
Brand Fluke
Type Multimeter
Model 99 Scopemeter
Shipping Cubic 0.017794000m3
