The USB Extender Plus Series extends and switches USB signals from peripheral devices to a host computer up to 1,980 feet (600m) through a Gigabit Ethernet network or up to 330 feet (100m) point-to-point over one CATx cable. It supports USB 2.0 through 1.0 devices with data rates up to 480 Mbps and it is compatible with USB 3.0 devices that can operate at USB 2.0 data rates. The transmitter includes USB peripheral emulation to enable trouble-free booting of a host computer that is not connected to a keyboard or mouse. The receiver features a built‑in, active four‑port hub. The controller provides simple setup and control for creating a distributed USB matrix switching system over an Ethernet network. The USB Extender Plus Series supports USB peripherals such as keyboards, mice, mass storage devices, and webcams in pro AV environments.

Features

  • Extends USB peripherals up to 1,980 feet (600 meters) through a Gigabit Ethernet network
  • Extends USB peripherals up to 330 feet (100 meters) point-to-point over one CATx cable
  • Supports USB 2.0 through 1.0 devices with data rates of up to 480 Mbps. Compatible with USB 3.0 devices that can operate at USB 2.0 data rates
  • Choice of rack-mountable and architectural form factors
  • USB switching controller lets you easily create small or large USB switching systems

(USB-Extender-Plus-R-T-R)

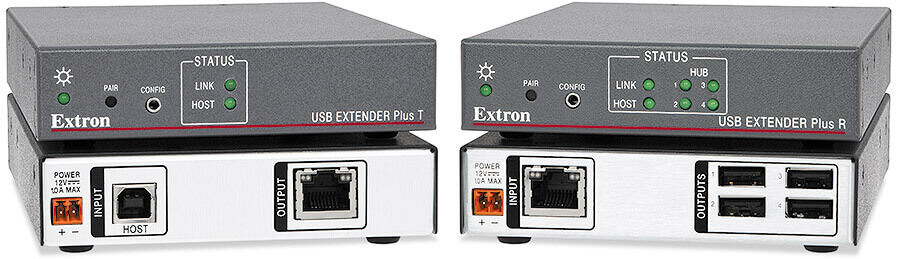

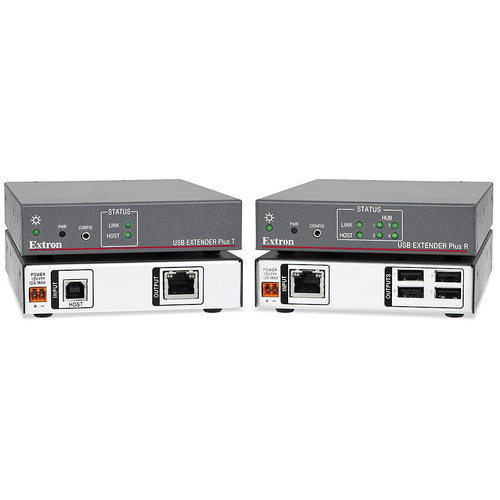

USB Extender Plus T/R
   USB extension
      USB standards  USB 2.0, USB 1.1, USB 1.0 compatible
      USB host support  xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
      USB data rates  Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
      Data transfer types  Bulk, Control, Interrupt, and Isochronous
   USB host — Tx units
      Number/signal type  1 USB
      Connectors  1 female USB type B
      Maximum built-in USB hubs  2
      Minimum built-in USB hubs  0
      Optional built-in USB hubs  Peripheral emulation enabled: 1
1:n network pairing enabled: 1

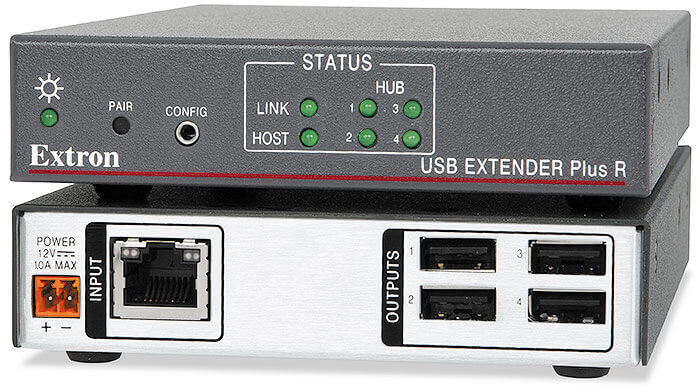

   USB device ports — Receiver
      Number/signal type  (1) 4-port, USB hub
      Connectors  4 female USB 2.0 type A
      Maximum built-in USB hubs  1
      Minimum built-in USB hubs  1
      Available USB power  500 mA per port
   Interconnection between transmitter and receiver
       NOTE     This product supports the four types of data transfer defined by USB: bulk, control, interrupt, and isochronous transfers.
      Connectors  1 female RJ-45 per unit
      Termination standards  TIA 568B
      Signal transmission distance
         Point to point  Up to 330' (100 m)
         Over the network  Up to 1980' (600 m)**
          NOTE     **Over the network distance is through connection of up to five network switches.
       NOTE     The transmission distance varies depending on the type of cable used in the system.
   Network
      Protocol  Ethernet
      Transport  TCP/IP, UDP
      All supported  IPv4, UDP, DHCP, Unicast
      Standards  IEEE 802.3u (100Base-T), IEEE 802.3ab (1000Base-T)
      IP Configuration  Static IP (default) or DHCP

General — USB Extender Plus T/R
   Power supply  External
      Transmitter  Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 watts
      Receiver  Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 watts
   Receiver HUB power output  5 VDC, 500 mA per port
   Power consumption
      Transmitter
         Device  2.5 watts
         Device and power supply  3.4 watts
      Receiver
         Device  12.4 watts
         Device and power supply  14.9 watts
   Enclosure type   Metal
   Enclosure dimensions
      USB Extender Plus Rack Mount  ​1.0" H x 4.3" W x 6.0" D (quarter rack width)
(25 mm H x 109 mm W x 152 mm D)
(Depth excludes connectors.)
      USB Extender Plus AAP
         Faceplate  1.4" H x 3.5" W x 0.1 " D
(36 mm H x 89 mm W x 2.5 mm D)
Double-space AAP
         Device  1.4" H x 2.7" W x 1.8" D
(36 mm H x 69 mm W x 46 mm D)
      USB Extender Plus D
         Faceplate  2.6" H x 1.3" W x 0.1 " D
(66 mm H x 33 mm W x 2.5 mm D)
         Device  2.7" H x 1.7" W x 1.6" D
(69 mm H x 43 mm W x 41 mm D)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance  UL, c-UL, CE, FCC Class A, C-Tick, RoHS, WEEE, KC*
*Only USB Extender Plus T, USB Extender Plus R, and USB Extender Plus AAP R models
SKU USB-Extender-Plus-R-T-R
Barcode # 615678928688
Brand Extron
Brand Extron
Type USB Extender
Model USB Extender Plus T/R
Shipping Cubic 0.017794000m3
