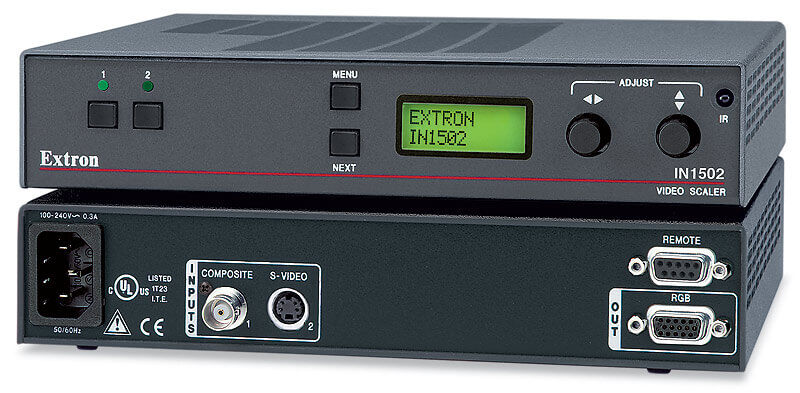

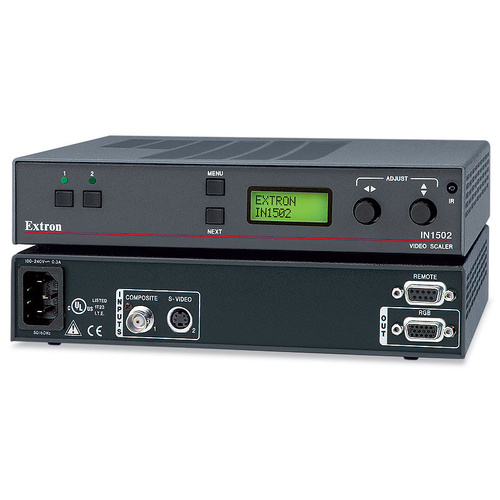

The Extron IN1502 Two Input Video Scaler provides high performance scaling of composite video and S-video signals. A host of integrator friendly features, including input source autoswitching, comprehensive picture controls, and RS-232 control make the IN1502 ideal for integrated systems in corporate, education, and medical environments where simple conversion of standard definition NTSC or PAL video to high resolution RGB video is desired.

Key Features

  • Scales composite video and S-video sources
  • Selectable RGB output rates from 640x480 to 1366x768
  • Autoswitching between inputs
  • Frame rate conversion
  • Quad standard video decoding
  • DMI™ - Dynamic Motion Interpolation

(IN1502-R)

Video input
   Number/signal type  1 S-video
1 composite video
   Connectors  (1) 4-pin mini DIN female (S-video)
1 BNC female (composite video)
   Nominal level  1 Vp-p for Y of S-video and for composite video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  Analog: 0.0 V to 1.0 Vp-p with no offset
   Impedance  75 ohms
   Horizontal frequency  NTSC 3.58, NTSC 4.43, PAL, SECAM
   Vertical frequency  NTSC 3.58, NTSC 4.43, PAL, SECAM
   Resolution range  NTSC 3.58, NTSC 4.43, PAL, SECAM
   Return loss  <-25 dB @ 5 MHz
   DC offset (max. allowable)  1.5 V

Video processing
   Decoder  9 bit digital
   Digital sampling  24 bit, 8 bits per color; 13.5 MHz standard
   Colors  16.78 million

Video output
   Number/signal type  1 scaled RGBHV, RGBS
   Connectors  1 female 15-pin HD
   Nominal level  0.7 Vp-p for RGB
   Minimum/maximum levels  0.0 V to 0.7 Vp-p
   Impedance  75 ohms
   Scaled resolutions  640x4801,2, 800x6001,2, 848x4801,2, 852x4801,2, 1024x7681,2, 1280x7681,2, 1360x7651,2, 1366x7681,2
1 = at 50 Hz, 2 = at 60 Hz

Sync
   Output type  RGBHV, RGBS
   Standards  NTSC 3.58, NTSC 4.43, PAL, SECAM
   Input level  0 V to 1.0 Vp-p
   Output level  TTL: 5.0 Vp-p, unterminated
   Input impedance  75 ohms
   Output impedance  75 ohms
   Max. input voltage  5 Vp-p
   Max. propagation delay  20 ns
   Polarity  Negative

Control/remote — decoder/scaler
   Serial control port  RS-232, 9-pin female D connector
   Baud rate and protocol  9600 baud, 8 data bits, 1 stop bit, no parity
   Serial control pin configurations  2 = TX
3 = RX
4 = input 1 select (contact closure)
5 = GND
6 = input 2 select (contact closure)
   Contact closure  9-pin female D connector (same as RS-232 connector)
   Contact closure pin configurations  See pins 4, 5, and 6 above.
   IR controller module  Extron IR 901 (optional)
   Program control  Extron's Simple Instruction Set (SIS)

General
   Power  100 VAC to 240 VAC, 50/60 Hz, 30 watts, internal
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing
   Rack mount  Yes, with optional 1U, 9.5" deep rack shelf, part #60-190-01 (RSU 129) or 60-604-01 (RSB 129)
   Enclosure type   Metal
   Enclosure dimensions  1.75" H x 8.75" W x 9.5" D (1U high, half rack wide)
(4.4 cm H x 22.2 cm W x 24.1 cm D)
(Depth excludes connectors and knobs.  Width excludes rack ears.)
   Product weight   3.3 lbs (1.5 kg)
   Shipping weight   6 lbs (3 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Listings  UL, CUL
   Compliances  CE, FCC Class A, VCCI, AS/NZS, ICES
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU IN1502-R
Barcode # 601527677272
Brand Extron
Brand Extron
Type Video Scaler
Model IN1502
Shipping Cubic 0.017794000m3
