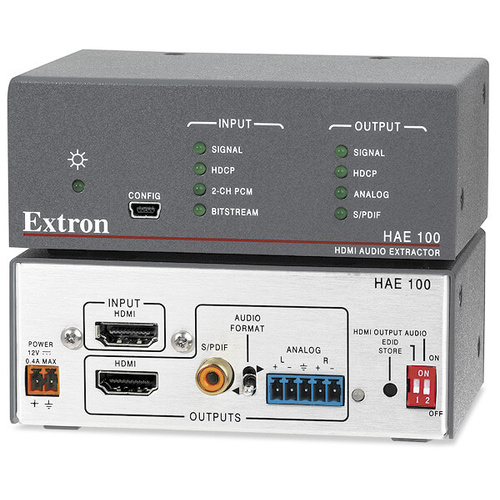

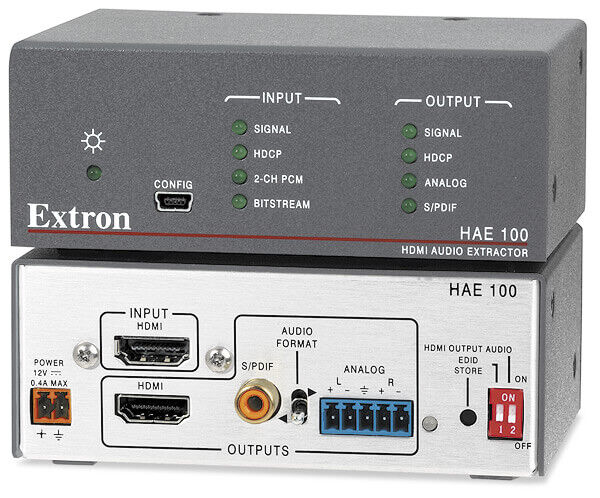

The Extron HAE 100 is an audio de-embedder that extracts the audio from the HDMI signal and provides outputs for analog stereo and digital S/PDIF audio. The HAE 100 supports data rates up to 6.75 Gbps for compatibility with HDMI Deep Color up to 12-bit. It is HDCP compliant and compatible with HDTV 1080p/60 or computer-video resolutions up to 1920x1200. The HAE 100 is equipped with several integrator-friendly features, including a buffered HDMI video output with EDID Minder® for simplified EDID management between the input source and the display, plus input cable equalization and comprehensive LED status display.

Key Features

  • HDMI audio de-embedding with analog stereo and digital S/PDIF audio outputs
  • Supported HDMI specification features include data rates up to 6.75 Gbps and Deep Color up to 12-bit
  • HDCP compliant
  • De-embeds audio with or without HDMI output connected
  • EDID Minder® automatically manages EDID communication between connected devices
  • Automatic input cable equalization

(HAE-100-R)

Video
   Maximum data rate  6.75 Gbps (2.25 Gbps per color)
   Maximum pixel clock  225 MHz
   Resolution range  Up to 1920x1200 or 1080p @ 60 Hz, 12-bit color
   Formats  RGB and YCbCr digital video
   Standards  DVI 1.0, HDMI, HDCP 1.2, EDID 1.3

Video input
   Number/signal type  1 single link HDMI
   Connectors  1 female HDMI type A
   Equalization  Automatic for up to -12 dB of cable loss
   Input cable length   Up to 25' (7.6 m)
    NOTE     The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphics card, and display used in the system.

Video output
   Number/signal type  1 single link HDMI
   Connectors  1 female HDMI type A
   Output cable length  Up to 15' (5 m)

Audio
   S/N  >90 dB, balanced, at maximum output

Audio input
   Source formats  PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS‑ES Matrix 6.1, DTS‑ES Discrete 6.1

Audio output — analog
   Number/signal type  1 stereo balanced/unbalanced
   Connector  (1) 3.5 mm captive screw connector, 5 pole
   Impedance  Stereo: 50 ohms unbalanced, 100 ohms balanced
   Maximum level (Hi-Z)  >16 dBu, balanced; >7.8 dBV, unbalanced at 1% THD+N

Audio output — digital
   Number/signal type  1 S/PDIF
   Connectors  1 female RCA jack (tip, ring)
   Impedance  75 ohms

Control/remote
   USB control ports  1 front panel female mini USB B
   USB standards  USB 2.0, low speed
   Program control  Extron Simple Instruction Set (SIS)

General
   External Power supply  External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, regulated
   Power input requirements   12 VDC, 0.4 A
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Thermal dissipation
      115 VAC, 60 Hz  7.3 BTU/hr
      240 VAC, 50 Hz  8.1 BTU/hr
   Mounting
      Rack mount  Yes, with optional 1U rack shelf
      Furniture mount  Yes, with optional mini under-desk mounting kit
   Enclosure type   Metal
   Enclosure dimensions  1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(4.2 cm H x 11.0 cm W x 7.6 cm D)
(Depth excludes connectors and switches.)
   Product weight   0.6 lbs (0.3 kg)
   Shipping weight   2 lbs (1 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, KCC, VCCI
SKU HAE-100-R
Barcode # 615678891821
Brand Extron
Brand Extron
Type HDMI Audio De-Embedder
Model HAE 100
Shipping Cubic 0.017794000m3
