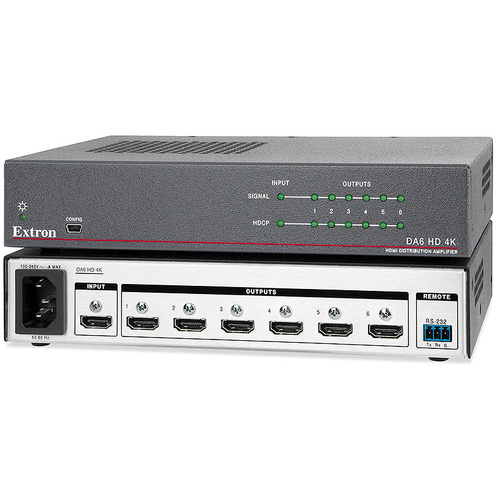

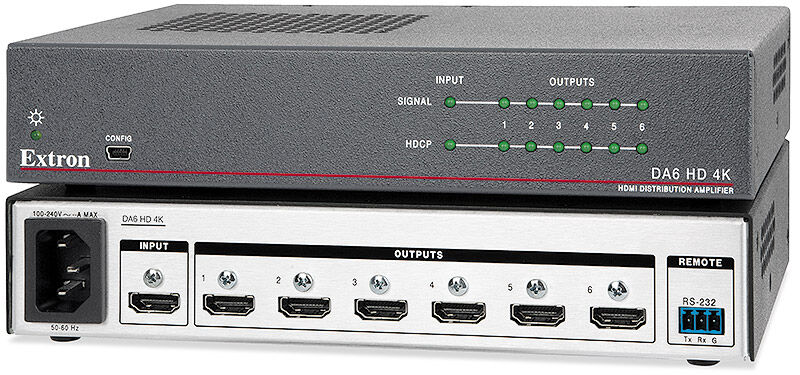

The Extron DA HD 4K Series  includes one input, multiple output distribution amplifiers for HDMI signals at resolutions up to 4K. They support data rates up to 10.2 Gbps, 3D, and HD lossless audio formats, along with integrator-friendly features such as automatic input cable equalization, automatic color bit depth management, and selectable output muting. They also feature Extron EDID Minder® and Key Minder® technologies to maintain continuous EDID communication between connected devices and ensure simultaneous distribution of HDCP-encrypted source content. The DA HD 4K distribution amplifiers are available in sizes from two to six outputs, and are ideal for applications that require reliable distribution of a single HDMI source signal to multiple displays.

Key Features

  • Supports computer and video resolutions up to 4K
  • Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
  • EDID Minder® automatically manages EDID communication between connected devices
  • HDCP compliant
  • Automatic input cable equalization to 50 feet (15 meters) when used with Extron HDMI Pro Series cable
  • Selectable output muting via RS‑232

(DA6-HD-4K-R)

Video
   Maximum data rate  10.2 Gbps (3.4 Gbps per color)
   Maximum pixel clock  300 MHz
   Resolution range  Up to 1920x1200 or 1080p @ 60 Hz, 12-bit color,
4K (4096x2160) @ 30 Hz, UHD (3840x2160) @ 30 Hz
   Formats  RGB and YCbCr digital video
   Standards  DVI 1.0*, HDMI 1.4, HDCP 1.4
    NOTE     Extron strongly recommends compatibility testing while designing, and before installing any 3D system.  There are several unique 3D formats in use by source devices and display manufacturers.  The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices.  Please contact an Extron Application Engineer for more information.
    NOTE     *Appropriate DVI-D to HDMI cables or adapters are required for DVI signal input/output.

Video input
   Number/signal type  1 single link HDMI (or DVI-D*)
   Connectors  1 female 19-pin HDMI type A

Video output
   Number/signal type
      DA2 HD 4K  2 single link HDMI (or DVI-D*)
      DA4 HD 4K  4 single link HDMI (or DVI-D*)
      DA6 HD 4K  6 single link HDMI (or DVI-D*)
   Connectors
      DA2 HD 4K  2 female 19-pin HDMI type A
      DA4 HD 4K  4 female 19-pin HDMI type A
      DA6 HD 4K  6 female 19-pin HDMI type A

Control/communications
   Serial control port  RS-232, 3.5 mm, 3-pole captive screw connector
   Baud rate and protocol  9600 baud, 8 data bits, 1 stop bit, non-parity
   Serial control pin configuration  1 = Tx, 2 = Rx, 3 = GND
   USB control port  1 front panel, female, mini USB B
   USB standards  USB 2.0, low speed
   Program control  Extron Simple Instruction Set (SIS™)

General
   Power
      DA2 HD 4K  External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A 6 watts
      DA4 HD 4K and DA6 HD 4K  Internal
Input: 100-240 VAC, 50-60 Hz
   Power consumption
      DA2 HD 4K
         Device   3.3 watts
         Device and power supply   4.3 watts
      DA4 HD 4K  8 watts
      DA6 HD 4K  10 watts
   Ambient temperature/humidity  Storage: -40 to +158°F (-40 to +70°C) / 10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) / 10% to 90%, noncondensing
   Cooling  Convection, vents on top
   Thermal dissipation
      DA2 HD 4K
         Device   8.9 BTU/hr
         Device and power supply   12.4 BTU/hr
      DA4 HD 4K  23.5 BTU/hr
      DA6 HD 4K  28.2 BTU/hr
   Mounting
      Rack mount  Yes, with optional rack shelf kit
   Enclosure type   Metal
   Enclosure dimensions
      DA2 HD 4K  1.0" H x 4.3" W x 3.0" D (one quarter rack wide)
2.5 cm H x 10.9 cm W x 7.6 cm D (depth excludes connectors)
      DA4 HD 4K and DA6 HD 4K  1.75" H x 8.75" W x 6.0" D (1U high, half rack wide)
4.4 cm H x 22.2 cm W x 15.2 cm D (Depth excludes connectors)
   Product weight
      DA2 HD 4K  0.35 lbs (0.2 kg)
      DA4 HD 4K and DA6 HD 4K  1.6 lbs (0.7 kg)
   Regulatory compliance  CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, AS/NZS, RoHS, WEEE
   Product warranty  3 years parts and labor
   Everlast power supply warranty  7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU DA6-HD-4K-R
Barcode # 601527606210
Brand Extron
Brand Extron
Type Distribution Amplifier
Model DA6 HD 4K
Shipping Cubic 0.017794000m3
