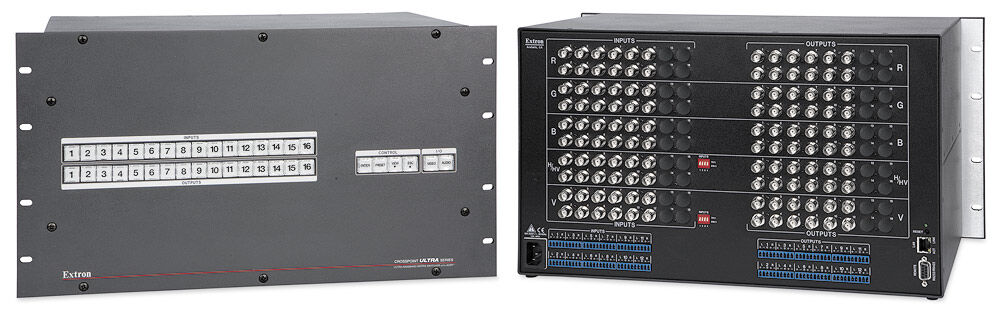

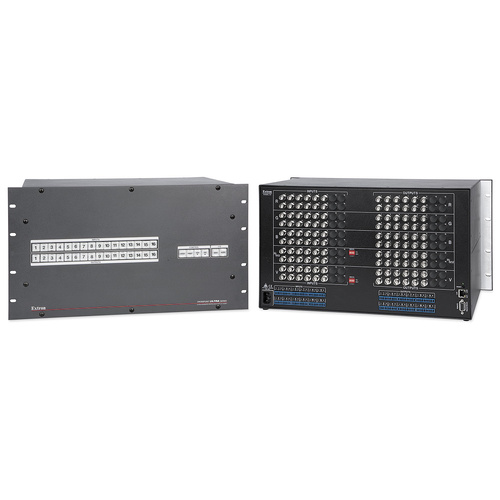

Tested to power on, assign/switch Input/Output. Includes CrossPoint Ultra 1212 HVA, power cable. Does NOT include BNC cables/adaptors, Pheonix connectors.

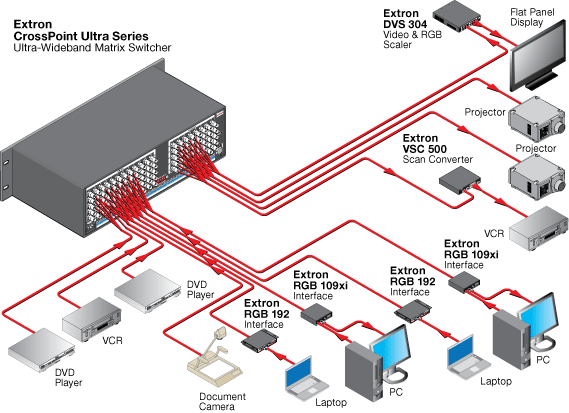

The CrossPoint Ultra 1212 is a 12x12 ultra-wideband matrix switcher designed to deliver exceptional performance in the most demanding, very high resolution computer-video and stereo audio routing systems. CrossPoint® Ultra sets a new standard for engineering excellence in all critical measures of matrix switcher performance, including bandwidth, frequency response, efficiency, reliability, power consumption, and control. CrossPoint Ultra is ideal for complex AV routing applications that require efficient, reliable operation at the highest computer-video resolutions without signal loss or degradation.

Key Features

  • Ultra-wideband performance - 525 MHz to 600 MHz (-3 dB), depending on model
  • Ultra-flat frequency response - ±0.5 dB from 0 to 130 MHz
  • Ultra-low crosstalk – (-56) dB or better at 100 MHz
  • Ultra-low power consumption – Less than 55 watts at full load
  • Ultra-flexible control

(CrossPointUltra1212HVA-R)

Video
   Routing
      84 Series  8 x 4 matrix
      88 Series  8 x 8 matrix
      128 Series  12 x 8 matrix
      1212 Series  12 x 12 matrix
      168 Series  16 x 8 matrix
      1616 Series  16 x 16 matrix
   Gain  Unity
   Bandwidth
      84/88/128 Series  600 MHz (-3 dB), fully loaded
         0 - 10 MHz  No more than ±0.1 dB
         0 - 130 MHz  No more than ±0.3 dB
      1212/168/1616 Series  525 MHz (-3 dB), fully loaded
         0 - 10 MHz  No more than ±0.30 dB
         0 - 130 MHz  No more than ±0.50 dB
   Crosstalk
      84/88/128 Series  -85 dB @ 1 MHz
-73 dB @ 5 MHz
-70 dB @ 10 MHz
-63 dB @ 30 MHz
-56 dB @ 100 MHz
      1212/168/1616 Series  -92 dB @ 1 MHz
-80 dB @ 5 MHz
-78 dB @ 10 MHz
-75 dB @ 30 MHz
-70 dB @ 100 MHz
   Switching speed  200 ns (max.)

Video input
   Number/signal type  8, 12, or 16 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video, S-video, composite video
   Connectors
      84/88 Series  8 x 5 female BNC
      128/1212 Series  12 x 5 female BNC
      168/1616 Series  16 x 5 female BNC
   Nominal level  1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and R-Y and B-Y of component video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  Analog: 0.2 V to 2.25 Vp-p with no offset
   Impedance  75 ohms
   Horizontal frequency  15 kHz to 150 kHz
   Vertical frequency  30 Hz to 150 Hz
   Return loss  <-40 dB @ 5 MHz
   DC offset (max. allowable)  1.47 V

Video output
   Number/signal type  4, 8, 12, or 16 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video, S-video, composite video
   Connectors
      84 Series  4 x 5 female BNC
      88/128/168 Series  8 x 5 female BNC
      1212 Series  12 x 5 female BNC
      1616 Series  16 x 5 female BNC
   Nominal level  1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and R-Y and B-Y of component video
0.3 Vp-p for C of S-video
   Minimum/maximum levels  0 V to 1.8 Vp-p (follows input)
   Impedance  75 ohms
   Return loss  -40 dB @ 5 MHz
   DC offset  ±7 mV with input at 0 offset
   Switching type  Triple-Action™

Sync
   Input type  RGBHV, RGBS, RGsB, RsGsBs
   Output type  RGBHV, RGBS, RGsB, RsGsBs (follows input)
   Input level  0.5 V to 5.0 Vp-p, 4.0 Vp-p normal
   Output level  AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated
   Input impedance  Inputs 1 to 4: 75 or 510 ohms, switchable
Inputs 5 to 8, 12, or 16: 510 ohms
   Output impedance  75 ohms
   Max. input voltage  5.0 Vp-p
   Max. propagation delay  <120 ns
   Max. rise/fall time  4 ns
   Polarity  Positive or negative (follows input)

Audio — audio models only
   Routing
      84 Series  8 x 4 stereo matrix
      88 Series  8 x 8 stereo matrix
      128 Series  12 x 8 stereo matrix
      1212 Series  12 x 12 stereo matrix
      168 Series  16 x 8 stereo matrix
      1616 Series  16 x 16 stereo matrix
   Gain  Unbalanced output: -6 dB; balanced output 0 dB
   Frequency response  20 Hz to 20 kHz, ±0.05 dB
   THD + Noise  0.01% @ 1 kHz at nominal level
   S/N  >105 dB, balanced, at maximum output (21 dBu), unweighted
   Crosstalk  <-89 dB @ 1 kHz, fully loaded
   Stereo channel separation  >-105 dB @ 1 kHz
   CMRR  >-83 dB @ 20 Hz to 20 kHz

Audio input — audio models only
   Number/signal type  8, 12, or 16 stereo, balanced/unbalanced
   Connectors  (8, 12, or 16) 3.5 mm captive screw connectors, 5 pole
   Impedance  >10k ohm, balanced/unbalanced, DC coupled
   Nominal level  +4 dBu (1.228 Vrms)
   Maximum level  +21 dBu, (balanced or unbalanced) at 0.01% THD+N
   Input gain adjustment  -18 dB to +24 dB (default = 0 dB), adjustable per input by RS-232/422, Ethernet, or front panel
    NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output — audio models only
   Number/signal type  4, 8, 12, or 16 stereo, balanced/unbalanced
   Connectors  (4, 8, 12, or 16) 3.5 mm captive screw connectors, 5 pole
   Impedance  50 ohms unbalanced, 100 ohms balanced
   Gain error  ±0.1 dB channel to channel
   Maximum level (Hi-Z)  >+21 dBu, balanced or unbalanced at 1.0% THD+N
   Maximum level (600 ohm)  >+20 dBm, balanced or unbalanced at 1.0% THD+N
   Output volume range  0 to 64 (-75.8 dB to 0 dB) in 1 dB increments from steps 1 to 64, in 12 dB increment from step 0 to 1; default = 64 = 0 dB

Control/remote — switcher
   Serial host control port  1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector
1 bidirectional RS-232, front panel 2.5 mm mini stereo jack
   Baud rate and protocol  9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit, no parity
   Serial control pin configurations
      RS-232  9-pin D connector: 2 = Tx, 3 = Rx, 5 = GND
Mini stereo jack: tip = Tx, ring = Rx, sleeve = GND
      RS-422  9-pin D connector: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+
   Ethernet control port  1 female RJ-45 connector
   Ethernet data rate  10/100Base-T, half/full duplex with autodetect
   Ethernet protocol  ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet
   Ethernet default settings  Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
   Web server  Up to 200 simultaneous sessions
1.24 MB nonvolatile user memory
   Program control  Extron control/configuration program for Windows®
Extron Simple Instruction Set™ (SIS™)
Microsoft® Internet Explorer®, Telnet

General
   Power  100 VAC to 240 VAC, 50-60 Hz, internal
      84/88/128 Series  35 watts (typical)
38 watts (loaded)
      1212/168/1616 Series  45 watts (typical)
52 watts (loaded)
   Ambient temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
   Cooling  Convection, no vents
   Mounting
      Rack mount  Yes
   Enclosure type   Metal
   Enclosure dimensions (Depth excludes connectors. Width excludes rack ears.)
      84/88/128 Series  5.25" H x 17.0" W x 9.4" D (3U high, full rack wide)
(13.3 cm H x 43.2 cm W x 23.9 cm D)
      1212/168/1616 Series  10.5" H x 17.0" W x 9.7" D (6U high, full rack wide)
(26.7 cm H x 43.2 cm W x 24.6 cm D)
   Product weight
      84/88/128 Series  14.4 lbs (6.5 kg)
      1212/168/1616 Series  19.4 lbs (8.8 kg)
   Shipping weight
      84/88/128 Series  21 lbs (10 kg)
      1212/168/1616 Series  26 lbs (12 kg)
   DIM weight, international
      84/88/128 Series  25 lbs (12 kg)
      1212/168/1616 Series  34 lbs (15.5 kg)
   Vibration   ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
      Safety  CE, c-UL, UL
      EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI
   Product warranty  3 years parts and labor
   Everlast power supply warranty  7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
SKU CrossPointUltra1212HVA-R
Barcode # 601527735781
Brand Extron
Brand Extron
Type Matrix Switcher
Model CrossPoint Ultra 1212 HVA
Shipping Cubic 0.032292000m3
