Includes EB-S6 projector, power cable. Does NOT include remote.

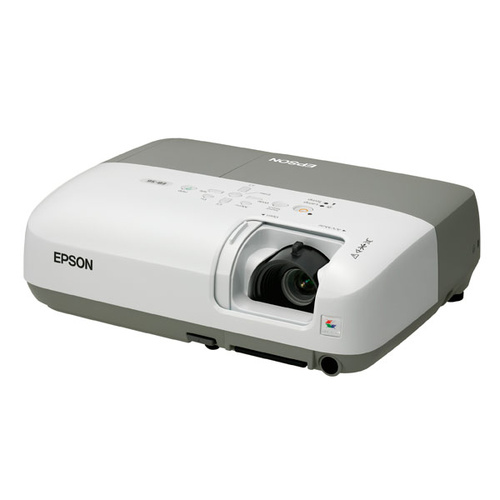

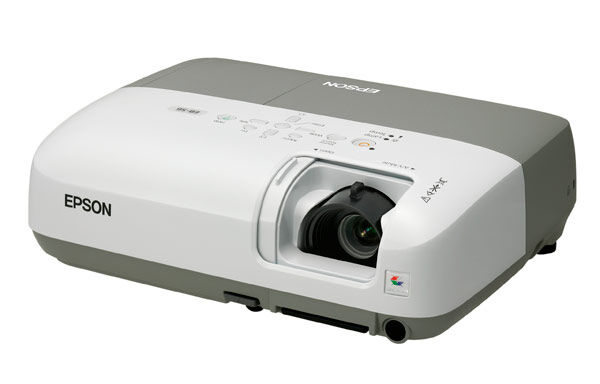

The Epson Europe EB-S6 Projector is a SVGA Conference Room Projector. This lamp based projector is capable of displaying 2,200 Lumens at its brightest setting with a native resolution of 800x600 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut.

  • 3 x Brighter Colours and Reliable Performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
  • Amazing Colour Brightness – 2,200 lumens colour and 2,200 lumens white brightness.
  • Crisp, Clear Resolution – Featuring SVGA resolution for sharp images.
  • Easy Maintenance – Both lamp and filter cycle for 3,000/4,000hrs (normal/ECO).
  • Built in Speaker – Presenting is easy with a built in speaker.

*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.

(EpsonEB-S6-B)

PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.55 inches without MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 480,000 pixels (800 x 600) x 3
  Native resolution SVGA
  Aspect ratio 4:3
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Digital zoom / Manual focus
  F-number 1.44
  Focal length 16.6
  Zoom ratio 1.0 ~ 1.35 Digital
LAMP Type 170W UHE
  Life 4000Hr ( Low Brightness )# 3000Hr ( High Brightness )#
#Subject to operation and environmental conditions.
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 23 to 260 inch [0.87 to 10.5m] (Zoom: Tele),
30 to 350 inch [0.87 to 10.5m] (Zoom: Wide)
BRIGHTNESS
  High Brightness Mode 2200 Lumens
(Colour mode: Game, Zoom: Wide)
  Low Brightness Mode 1750 Lumens
(Colour mode: Game, Zoom: Wide)
CONTRAST 2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY Simple Interlace-Progressive conversion
SOUND OUTPUT 1W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 108MHz up to UXGA 60Hz
HORIZONTAL 15KHz to 69KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
FOOT ADJUSTER Front-centre
TILT ANGLE 0 to 11 degrees
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees
PASSWORD PROTECTED FUNCTION
(security function)
Implemented
OTHER FUNCTION
USB Display USB Display Ver.1.40 (for  Windows)
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 800 x 600 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
INPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
  Audio RCA x 1 (White/Red)
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
  Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin (Blue moulding)
  Audio RCA x 2 (White/Red )
CONTROL I/O
USB I/O Type B x 1 (for mouse control)
OPERATING TEMPERATURE 5°C to 35°C (41°F to 95°F) > (20%-80% Humidity )
COOL-DOWN PERIOD "Instant off"
START-UP PERIOD Approx. 5 seconds (warm up 30 seconds)
POWER SUPPLY VOLTAGE 100-240V AC±10% 50/60Hz
POWER CONSUMPTION 100-240VAC 2.8-1.5A 50/60Hz Lamp
246W/231W (Lamp on) 3.0W/4.3W (standby)
DIMENSION
EXCLUDE FEET 245(D) x 327(W) x 92(H) mm
MAXIMUM DIMENSION 245(D) x 327(W) x 101(H) mm
WEIGHT Approx. 2.7kg
FAN NOISE
LOW BRIGHTNESS MODE 28dB
HIGH BRIGHTNESS MODE 35dB
SKU EpsonEB-S6-B
Barcode # 615678992870
Brand Epson
Brand Epson
Type Projector
Model EB-S6
Shipping Cubic 0.017794000m3
Unit Of Measure ea
