Untested, Sold as is

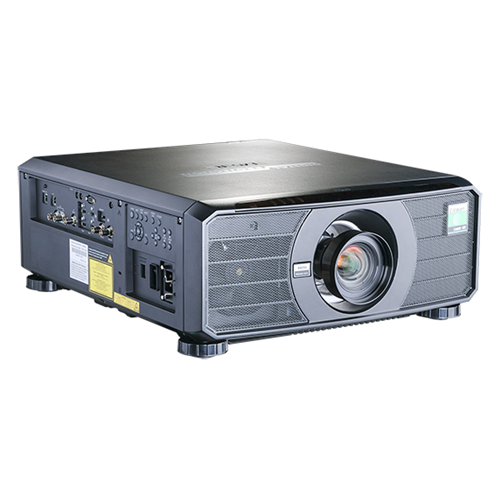

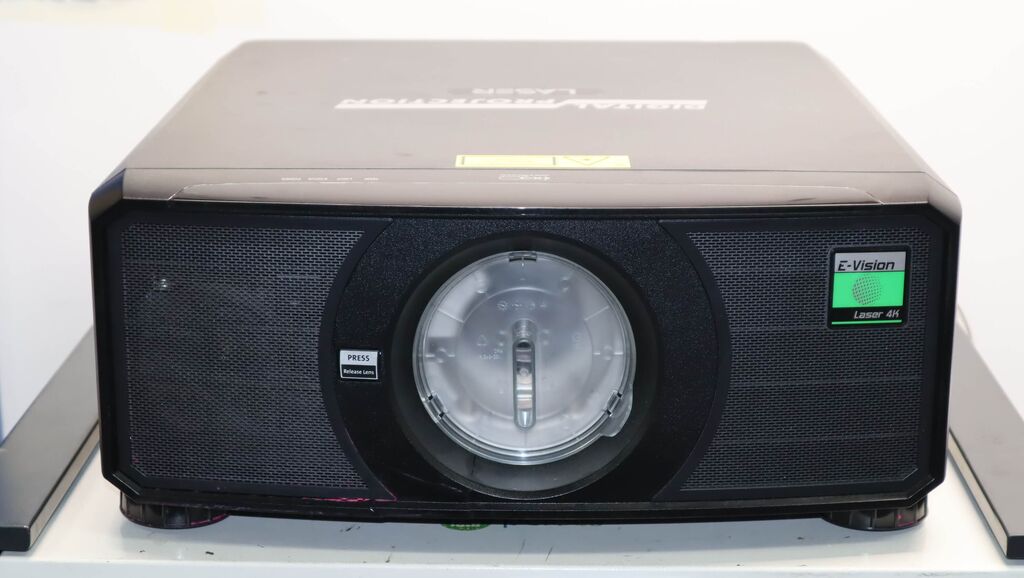

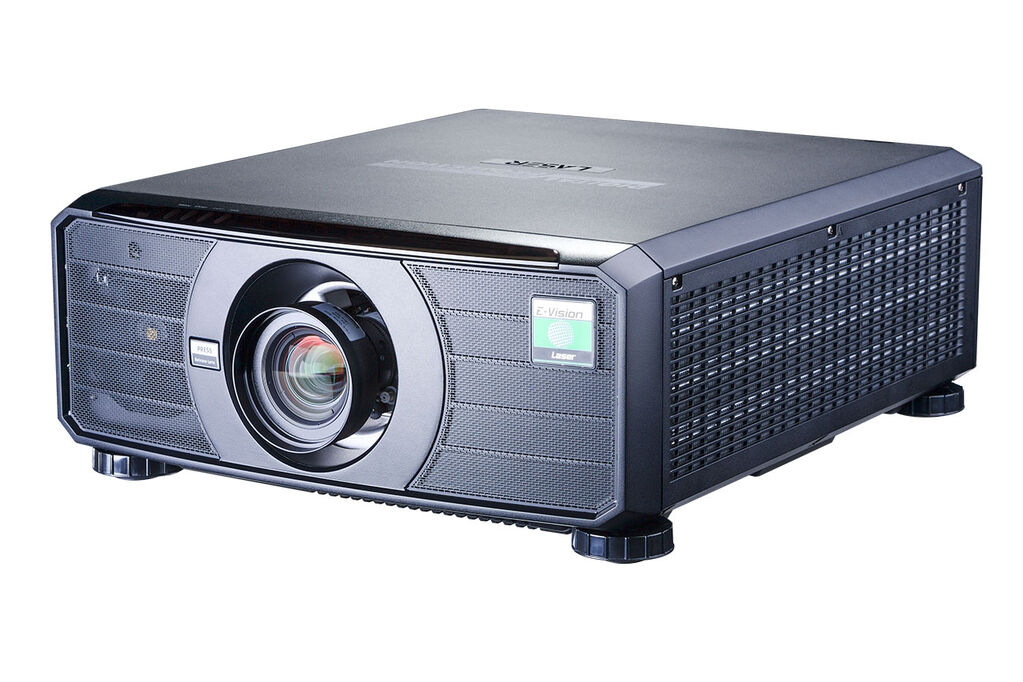

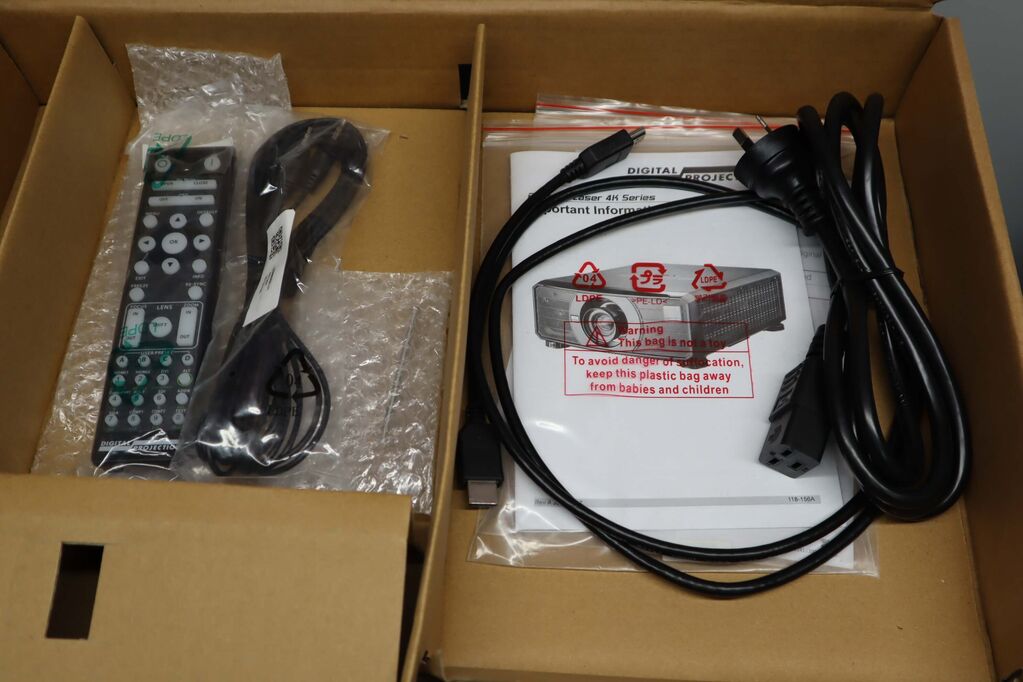

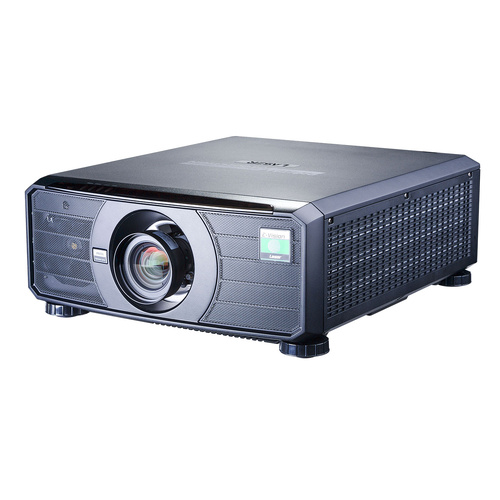

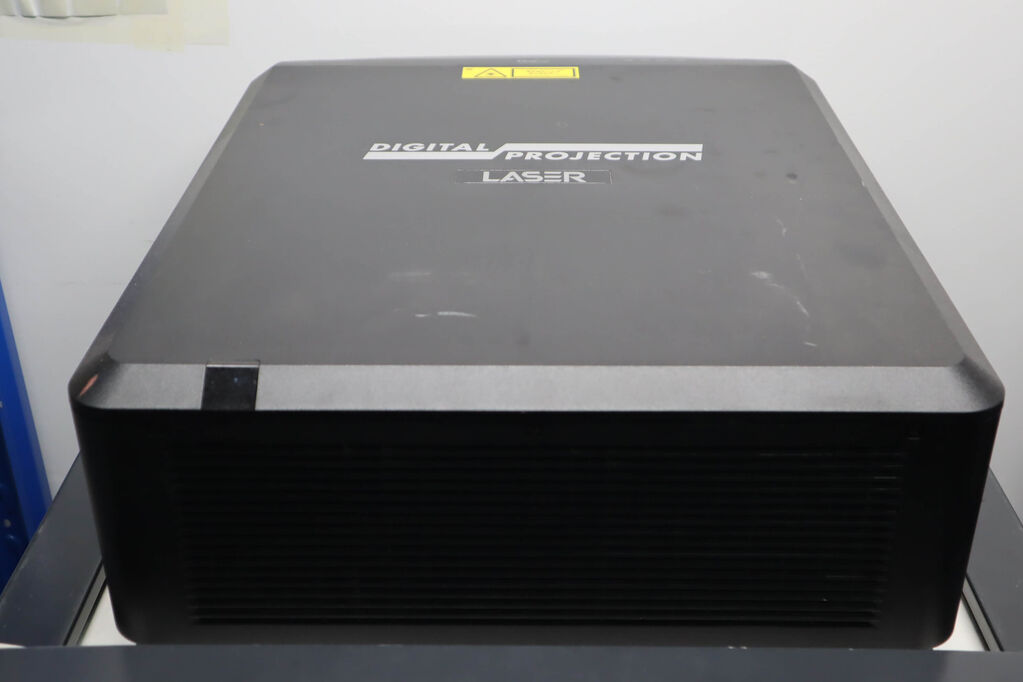

Includes Digital Projection E-Vision Laser 4K-UHD Venue Projector, Power Cable, Audio Cable and Manual ONLY, Does NOT include Lens

7,500 lumens of solid-state illumination at a resolution of 3840 × 2160
The E-Vision Laser 4K-UHD delivers a stunning 7,500 lumens from a stable solid-state light source, capable of producing over 20,000 hours of illumination. The 4K UHD resolution delivers stunning detail and image subtlety that only 4K-UHD powered by Texas Instruments DLP chip can. This single chip projector was developed with Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout the lifetime of the display.

Equally compelling is the lack of lamp replacements due to the solid state illumination system. By bypassing regular lamp replacement cycles, almost all costs related to the E-Vision Laser are incurred at time of purchase. This key characteristic allows the E-Vision Laser 4K-UHD to have a much lower cost of ownership over the lifespan of the display.

Combine the exceptional bright, long-life illumination source with a host of other precision features, and you have a projector solution that’s perfectly suited to a diverse range of professional venues. HDMI 2.0 comes as standard as well as HDMI 1.4b for when you need Frame Sequential and Dual Pipe 3D.


Flexible Mounting Orientation

For maximum flexibility, the E-Vision Laser 4K-UHD can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between


Built in Edge Blend

Superbly capable edge blending and multi-projector tiling is provided by way of high bit depth processing that ensures a seamless, contiguous image can be created from multiple projectors.


Lamp Free Projector

The E-Vision Laser 4K-UHD is a lamp-free projector meaning extensive savings on expensive maintenance and replacement cycles.


Projector Control Software

Projector Controller software allows full management and operation of multiple projectors from a single centralized PC-based application. Ideal for use in large installations or where projectors are installed in multiple locations within a building, the software can dramatically reduce the time required for set up and configuration. This free piece of software is available for download here.


3D Capable

Dual Pipe
Frame Sequential


DisplayPort 1.2

Graphics standards up to 3840 x 2160 resolution at 60Hz via HDMI, DisplayPort and HDBaseT.


HDBaseT

Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable. This allows projector to be placed up to 80m from source with low cost cabling.


20,000 hours illumination

The laser light source last for 20,000 hours, giving stable and predictable illumination that far exceeds any lamp based product


DICOM Simulation Mode

The Digital Imaging and Communications in Medicine (DICOM) standard for distributing and viewing any kind of medical image regardless of the origin.

(E-VisionLaser4KUHD-BGrade)

Key Features

  • Video & Graphics Processing
  • Two projectors in one - 4K-UHD and WQXGA+.
  • DisplayPort 1.2.
  • 2 x HDMI 2.0.
  • 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.
  • Sequential Processing: 3D via single HDMI 1.4b input.
  • Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.
  • Synchronisation of active glasses.
  • 3G-SDI with loop-through.
  • DICOM simulation mode.




Geometry Correction

  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
  • Non-linear warp.
  • Digital zoom, pan and scan.
  • Blanking control for custom input window sizing.
  • Scaling available for fixed aspect ratio screens.
  • Unscaled processing for pixel mapped display.


Edge Blending

  • Blending control available for all sides with width control.
  • Correction for non-active pixels at the edge of the display.


Picture in Picture

  • Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.


HDBaseT® Interface

  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 100m from source with low cost cabling.
  • Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4


Colour Processing

  • Four colour modes available.
  • Powerful seven point colour correction for accurate colour matching with presets.
  • Easy colour temperature selection.
  • Manual seven point colour adjustment.
  • Traditional lifts and gains.


Projector Controller Software

  • Intuitive user interface for network control.
  • Simultaneous control of user-defined groups of projectors.
  • At-a-glance monitoring of projector status.


Projector Automation

  • Real-time clock provides daily on/off automation.
  • E-mail alerts for system status.

Source Compatibility:

  • 2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
  • 3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
  • 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

WQXGA+ mode

  • 2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
  • 3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.

4K-UHD mode

  • 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.

Auto mode

  • Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
  • Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.

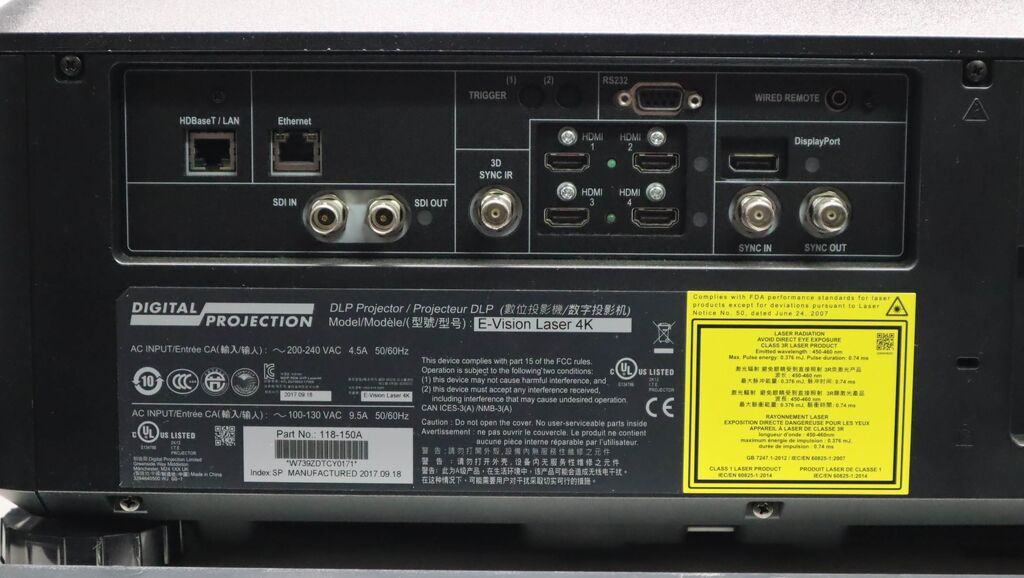

Inputs/Outputs

Video & Computer

DisplayPort 1.2 (2D) x1
HDMI 1.4b (3D) x2
HDMI 2.0 (2D) x2
3G-SDI in (2D) x1
3G-SDI out x1
HDBaseT (see LAN) (2D) x1

Communication & Control

3D Sync Out x1
3D Sync In x1
LAN x2
RS232 x1
Wired Remote x1
12V Trigger x2
3D Sync IR Out x1

NOTE: One of the LAN ports is shared with HDBase-T.

3D Formats Supported


  • Frame Sequential
  • Dual-Pipe

HDTV Formats Supported

  • 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
  • 1080i (50Hz, 60Hz)
  • 720p (50, 60Hz)
  • 2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
  • 4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

Computer Compatibility

2D

  • 4K-UHD up to 60Hz.
  • WQXGA+ up to 120Hz.

3D

  • Supported formats will be displayed within WQXGA+.

Bandwidth

  • 498 megapixels per second via DisplayPort and HDMI 2.0.

Remote Control

  • Addressable IR remote control, wireless and wired.

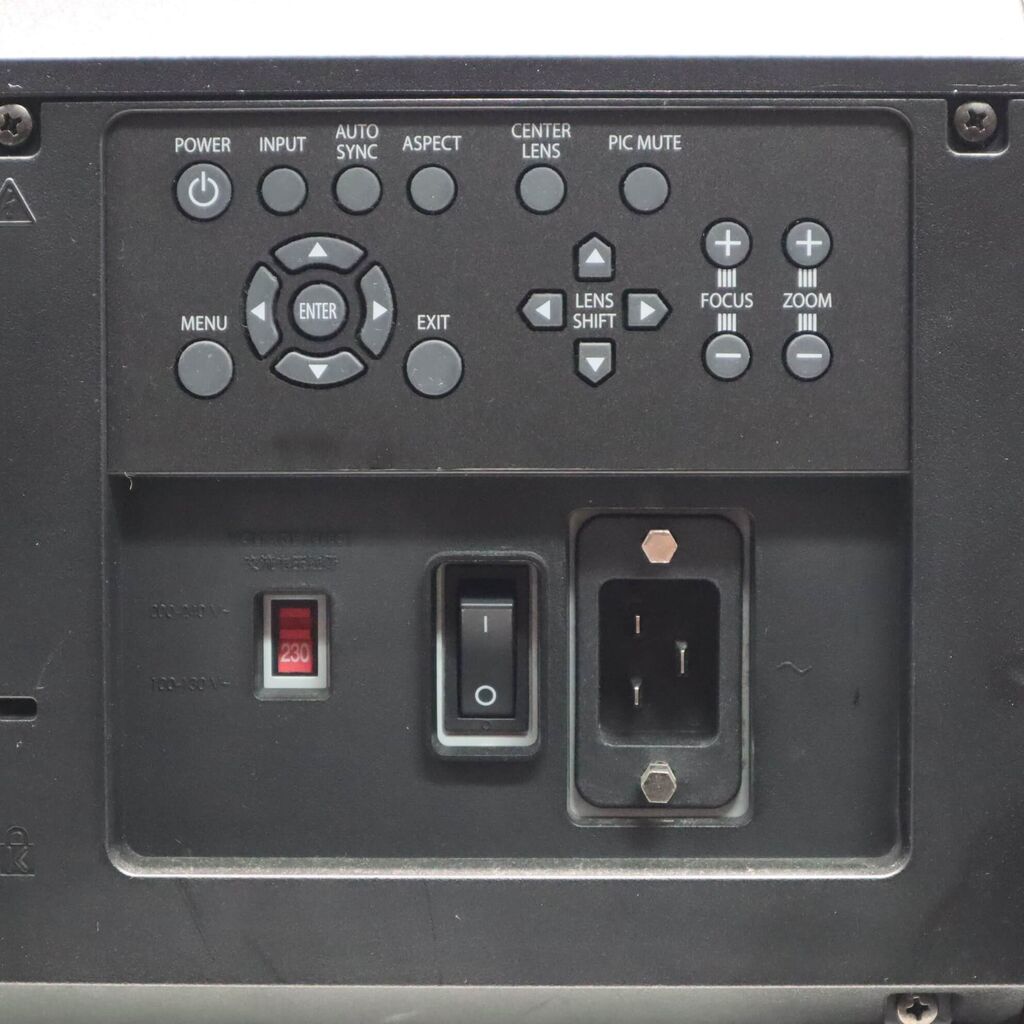

  • On-Board keypad

Automation Control

  • Crestron RoomView® Connected
  • PJLink Class 1
  • LAN
  • RS232
  • AMX (Device Discovery)
  • Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)

Colour Temperature

  • 3200K to 9300K

illumination Type

  • Laser Light Source

Typical illumination Life

  • 20,000 hours

Lens Mount

  • Motorised and programmable shift, zoom and focus.
  • Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

  • Front/Rear Table
  • Front/Rear Ceiling
  • Adjustable Front/Rear Feet

Orientation

  • Table Top or Inverted: Yes
  • Pointing Up: Yes
  • Pointing Down: Yes
  • Roll (Portrait): Yes


Weight (Chassis Only)

  • 28.15 kg

Dimensions

  • L: 58.0 cm W: 50.0 cm H: 21.1 cm
  • L: 22.8 in W: 19.7 in H: 8.3 in

Safety & EMC Regulations

  • CE, FCC Class A, CCC, UL/cUL, FDA CB, KC, EAC, CEL, CECP
SKU E-VisionLaser4KUHD-BGrade
Barcode # 634855085167
Brand Digital Projection
Brand Digital Projection
Type Projector
Model E-Vision Laser 4K
Shipping Cubic 0.114400000m3
Unit Of Measure ea
