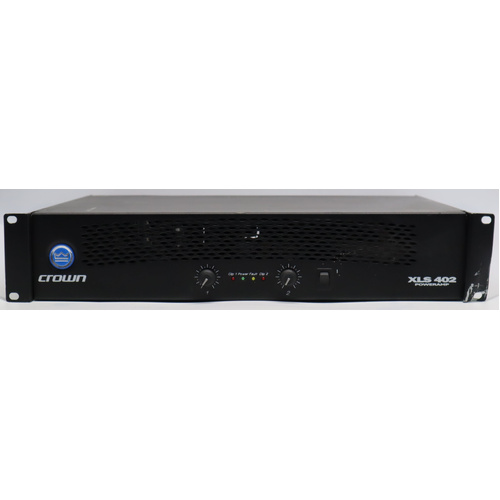

The XLS Series of power amplifiers from Crown represents a new era in affordable, quality power amplification. The line consists of three models in a uniform, rugged chassis, incorporating the best of tried-andtrue design principles and innovative features.

XLS Series amplifiers are professional stereo power amplifiers engineered to meet demanding audio requirements—reliably and within budget.

With over five decades of experience designing and building rock-solid products, Crown is the standard in amp technology. So check out the affordable, Crown XLS Series. They are a powerful argument for quality and value!

(Crown-XLS-402-BGrade)

The following applies to units in Stereo mode with 8-ohm loads and rated input sensitivity unless otherwise specified.

Performance

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.025
Frequency Response (at 1 watt) 20 Hz to 20 kHz: ±0.75 dB
Phase Response (degrees at 1 watt) at 10 Hz: –10
at 20 kHz: +19
Signal-to-Noise Ratio (20 Hz to 20 kHz) A-weighted, below rated power: >100 dB
No weighting, below rated power: >97 dB
Total Harmonic Distortion (THD) at full bandwidth power, from 20 Hz to 1 kHz: < 0.15%
Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) from full rated output to –40 dB: < 0.3%
Damping Factor (8 ohm) 10 Hz to 400 Hz: >200
Crosstalk (below rated power) at 1 kHz: –82 dB
at 20 kHz: –58 dB
Voltage Gain (at maximum output): 31 dB

Power

Output Power: (1kHz Power: refers to maximum average power in watts at 1kHz ith 0.1% THD) 2-ohm Stereo (per channer): 570W
4-ohm Stereo (per channer): 400W
8-ohm Stereo (per channer): 260W
Load Impedance: Safe with all types of loads. Rated for 2 to 8 ohms in Stereo, 8 ohms in Bridge-Mono
AC Line Voltages Available (±10%): 120 and 230 VAC
Line Frequency: 50/60 Hz

Controls

Level: Two front-panel, black rotary level controls, one for each channel
Power: Front-panel switch; on when in the UP position
Filter Switches: One per channel; three-position back-panel switches set the frequency for internal high-pass filters. Frequency setting is 30 Hz when switch is in left position; 15 Hz when switch is centered; and bypassed when switch is in right position
Limiter Switch: Back-panel switch offers loudspeaker protection against moderate amplifier clip when set to the “IN” position
Fuse: Provides overload protection

Indicators

Clip: Two front-panel red LEDs, one for each channel, illuminate when the channel’s output signal is being overdriven
Power: Green front-panel LED indicates amplifier has been turned on and AC power is available
Fault: Yellow front-panel LED illuminates when amplifier is in protect mode. Also illuminates briefly during normal power-up when amplifier is first switched on

Input/Output

Input Connectors: One per channel; backpanel three-pin female XLR input connectors are provided
Input Impedance (nominally balanced, nominally unbalanced): 20 k ohms, 10 k ohms
Output Connectors:  One pair of back-panel, 5-way binding posts per channel; accepts banana plugs, spade lugs or bare wire. (European models do not accept banana plugs.)
DC Output Offset (shorted input): ±10 millivolts
Output Signal: Stereo, unbalanced, twochannel

Protection

XLS Series amplifiers provide extensive protection and diagnostic capabilities, including built-in anti-clip limiters, switchable high-pass filters, output current limiting, DC protection, fuses, and special thermal protection for the unit’s transformers.

Construction

Ventilation: Flow-through ventilation from front to back
Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
Air Volume Requirements (per minute per unit): 80.15 ft³ (2.27 m³)
Dimensions: EIA Standard 19-inch (48.3-cm) rack mount width (EIA RS-310-B), 5.25-inch (13.3-cm) height and 12.6-inch (32.0-cm) depth behind the mounting surface

Weight

Net Weight: 31 lbs. (14.0 kg)
SKU Crown-XLS-402-BGrade
Barcode # 615678927599
Brand Crown Audio
Brand Crown Audio
Type Power Amplifier
Model XLS 402
Shipping Cubic 0.017794000m3
