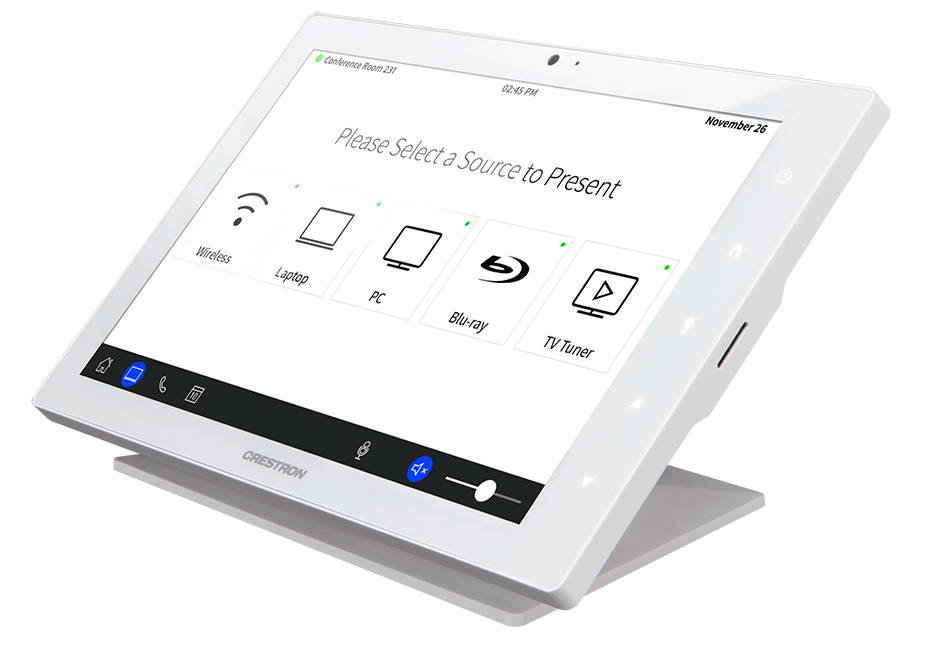

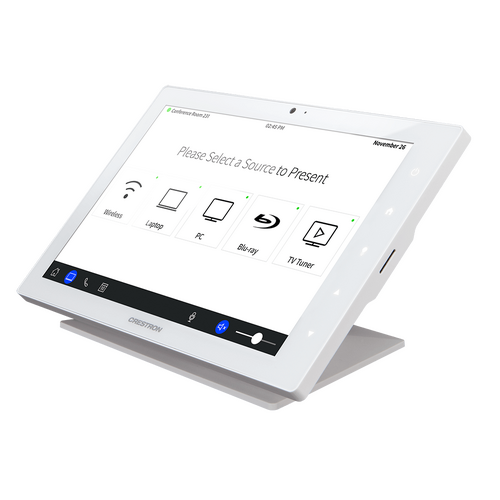

The TSW-1060-TTK provides a stylish and convenient tabletop enclosure for a TSW-1060 Touch Screen. The touch screen is angled when installed in the enclosure. The complete assembly may be placed on any flat, level surface.

An optional swivel mount accessory (TSW-560/760/1060-SMK) is available separately and provides a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.

Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6 mm) diameter such as standard CAT5. The bottom opening measures 29/32 inch (23 mm) diameter, while the swivel mount [1] can accommodate wiring up to 11/16 inch (17 mm) diameter.

Key Features

  • Converts a TSW-1060 to a stylish 10.1” tabletop touch screen
  • Provides a 38° fixed operating angle
  • Allows permanent mounting using the optional swivel mount kit [1]
  • Provides the choice of a rear or bottom wire exit
  1. TSW-560/760/1060-SMK Swivel Mount Kit sold separately.

(TSW-1060-TTK-W-S-OB)

Enclosure

Plastic, black or white;
38° fixed angle device opening;
Freestanding or swivel mount installation[1]

Dimensions

Height 4.12 in (105 mm);
4.25 in (108 mm) with swivel mount[1]
Width 7.86 in (200 mm)
Depth 5.15 in (131 mm)
With touch screen installed:
Height 5.45 in (139 mm);
5.58 in (142 mm) with swivel mount[1
Width 10.23 in (260 mm)
Depth 5.80 in (148 mm)

Weight

17.3 oz (491 g);
41.2 oz (1166 g) with touch screen installed
  1. TSW-560/760/1060-SMK Swivel Mount Kit sold separately.
SKU TSW-1060-TTK-W-S-OB
Barcode # 601527669673
Brand Crestron
Brand Crestron
Type Mounting Kit
Colour White
Model TSW-1060-TTK-W-S
Shipping Cubic 0.017794000m3
