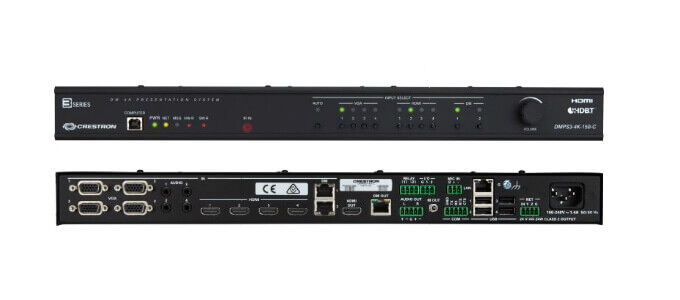

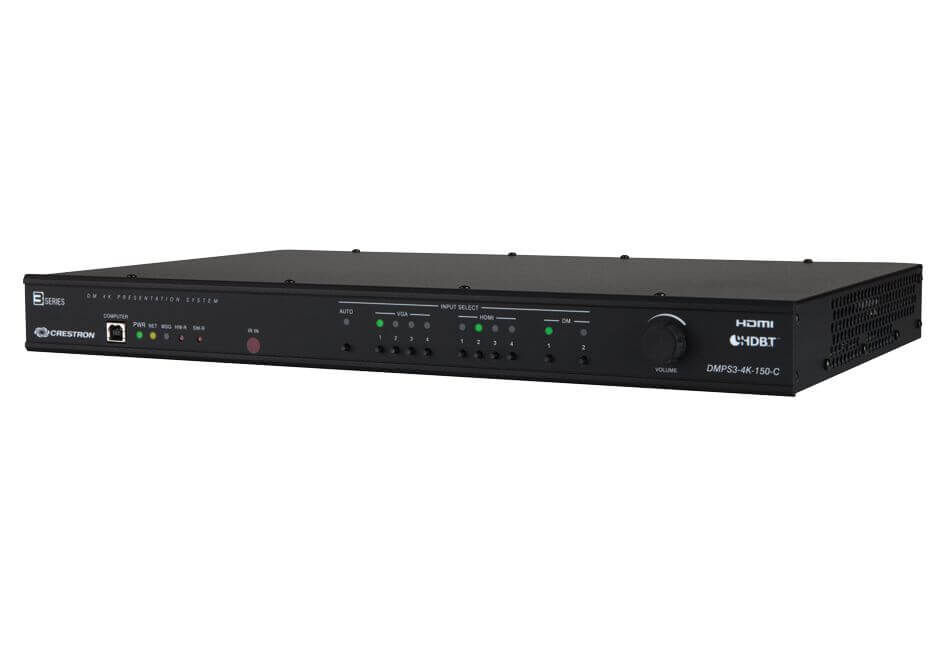

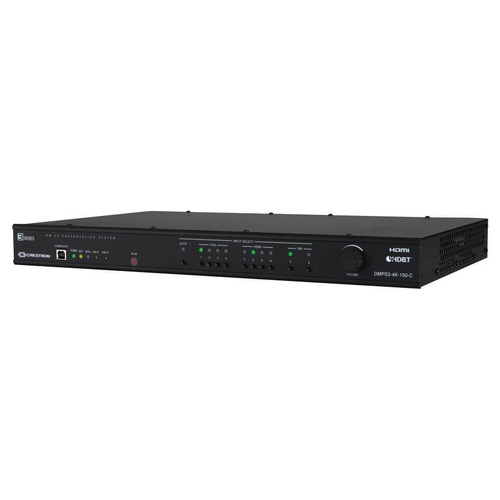

The DMPS3-4K-150-C from Crestron® provides an ultra high-definition presentation switcher and control solution that’s perfect for huddle rooms, conference rooms, and classrooms. It integrates the control system, multi-format switcher, 4K video scaler, mic preamp, and audio DSP all into one compact device that mounts conveniently under a conference table or in an equipment rack. Built-in Crestron Connect It™ functionality affords a complete collaboration solution that’s easy and affordable to deploy in any small to medium sized meeting space. Without requiring any programming, the DMPS3-4K-150-C is easily configurable for a variety of media presentation applications.

Auto-switching HDMI®, VGA, and analog audio inputs provide the essential connectivity needed to manage multiple computers and other media sources. A full-featured microphone input is also included for applications requiring high-quality speech reinforcement. The selected input source and microphone can be mixed and routed to one HDMI output and one stereo analog audio output. Additional DigitalMedia 8G+® inputs and output afford a streamlined, long-distance wiring solution for remote sources, for the display device, and for facility-wide integration as part of a larger media distribution system. Built-in 4K scaling ensures the highest possible image quality, and compatibility with the widest range of sources and displays.



(DMPS3-4K-150-C)

Operating System
  Crestron 3-Series; real-time, preemptive, multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs; preloaded DMPS3 .AV Framework Base Program; out-of-the-box "Crestron Connect It" functionality

Control System Memory
  SDRAM 1 GB
  Flash 4 GB

Communications
  Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1X, SNMP, BACnet™/IP [11], IPv4 or IPv6, Active Directory authentication, IIS v.6.0 web server, SMTP e-mail client, RSTP, Private Network Mode
  Cresnet Cresnet master mode
  USB USB host ports for Crestron Connect It devices and firmware update via USB flash drive; USB device port for computer console (setup); supports USB signal routing via select DM transmitters and receivers, or via USB-EXT-DM extenders [10]
  RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking
  IR/Serial 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud; built-in RC-5 compatible IR receiver
  DigitalMedia DM 8G+, HDCP, EDID, CEC, PoDM, Ethernet
  HDBaseT HDCP, EDID, CEC, RS-232, PoE, Ethernet
  HDMI HDCP, EDID, CEC
  NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI and HDBaseT devices and the control system

Video
  Switcher 10x1 (organized as multi-format 6x1), auto-switching, auto-detecting multi-format digital/analog source inputs, QuickSwitch HD technology
  Scaler 4K video scaler, motion-adaptive deinterlacer, intelligent frame rate conversion, Deep Color support, 3D to 2D conversion [7], content-adaptive noise reduction, widescreen format selection (zoom, stretch, maintain aspect-ratio, or 1:1)
  Input Signal Types HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort compatible [4]); DM 8G+ & HDBaseT w/Deep Color, 3D, & 4K; RGB/VGA (RGBHV, RGBS, RGsB); component (YPbPr); S-Video (Y/C); composite (NTSC, PAL) [5]
  Output Signal Types HDMI w/Deep Color, 3D, & 4K (DVI compatible [4]); DM 8G+ & HDBaseT w/Deep Color, 3D, & 4K
  Analog-To-Digital Conversion 10-bit 165 MHz per each of 3 channels

Maximum Pass-Through Resolutions

Input Type Scan Type Resolution Frame
Rate		 Color
Sampling		 Color
Depth
HDMI, DM,
or HDBaseT		 Progressive 4096x2160 DCI 4K
or
3840x2160 4K UHD		 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit
RGB/VGA Progressive 1600x1200 UXGA 60 Hz n/a
1920x1200 WUXGA 60 Hz n/a
Component [5] Progressive 1920x1080 HD 1080p 60 Hz n/a
Interlaced 1920x1080 HD 1080i 30 Hz n/a
Composite
or S-Video [5]		 Interlaced 480i NTSC or 576i PAL 60 Hz n/a

Maximum Scaler Input Resolutions

Input Type Scan Type Resolution Frame
Rate		 Color
Sampling		 Color
Depth
HDMI, DM,
or HDBaseT		 Progressive 4096x2160 DCI 4K
or
3840x2160 4K UHD		 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit
RGB/VGA Progressive 1600x1200 UXGA 60 Hz n/a
1920x1200 WUXGA 60 Hz n/a
Component [5] Progressive 1920x1080 HD 1080p 60 Hz n/a
Interlaced 1920x1080 HD 1080i 30 Hz n/a
Composite
or S-Video [5]		 Interlaced 480i NTSC or 576i PAL 60 Hz n/a

Maximum Scaler Output Resolutions

Input Type Scan Type Resolution Frame
Rate		 Color
Sampling		 Color
Depth
HDMI, DM,
or HDBaseT		 Progressive 4096x2160 DCI 4K
or
3840x2160 4K UHD		 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
  NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz for digital inputs and outputs, or 165 MHz for analog inputs

Audio – General
  Switcher/Mixer 10x1 (organized as multi-format 6x1) stereo source switcher, auto-detecting digital/analog source inputs, single-channel gated mic preamp w/DSP, two independent mic/source mixers (one for analog output, one for digital outputs), stereo DSP for analog output, 6x1 multichannel source switcher, digital audio mixer bypass mode for multichannel pass-through to digital outputs
  Analog-To-Digital Conversion 24-bit 48 kHz
  Digital-To-Analog Conversion 24-bit 48 kHz
  Frequency Response 20 Hz to 20 kHz ±0.5 dB (digital source);
20 Hz to 20 kHz ±0.5 dB (analog line source);
20 Hz to 20 kHz ±0.7 dB (microphone source)
  S/N Ratio >108 dB, 1 kHz, A-weighted (digital source);
>103 dB, 1 kHz, A-weighted (analog line source)
  THD+N <0.002%, 20 Hz to 20 kHz (digital source);
<0.005%, 20 Hz to 20 kHz (analog line source);
<0.05%, 20 Hz to 20 kHz (microphone source)
  Stereo Separation >108 dB (digital source);
>103 dB (analog source)

Audio – Microphone Input
  Input Signal Type Mono analog mic level
  Phantom Power Enable/Disable
  Gain 0 to +60 dB Gain adjustment, plus Mute
  EQ Center Frequencies

50 to 200 Hz (Band 1);
200 to 800 Hz (Band 2);
800 to 3.2k Hz (Band 3);
3.2k to 12.8k Hz (Band 4)
  EQ Gain ±12.0 dB per band
  Gating Threshold -80 to 0 dB
  Gating Depth (Attenuation) -80 to 0 dB
  Gating Attack 1 to 250 ms
  Gating Release 1 to 1000 ms
  Gating Hold 1 to 200 ms
  Compression Threshold -80 to 0 dB
  Compression Ratio 1:1 to 10:1
  Compression Attack 1 to 250 ms
  Compression Release 1 to 1000 ms
  Compression Hold 1 to 200 ms
  Compression Curve Hard or soft knee

Audio – Source Inputs
  Typical of 10 source input channels (Audio Inputs 1 – 4, HDMI Inputs 1 – 4, & DM Inputs 1 – 2)
  Input Signal Types Analog 2-channel [6], HDMI (Dual-Mode DisplayPort compatible [4]), DM 8G+ & HDBaseT
  Analog Formats Stereo 2-channel
  Digital Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels [8]
  Input Compensation ±10.0 dB [8]

Audio – Analog Line Output
  Output Signal Type/Format Stereo 2-channel
  Mic -80 to +10 dB Level adjustment range, plus Mute and Pan
  Source -80 to +10 dB Level adjustment range, plus Mute and Balance
  Master Volume -80 to +10 dB Level adjustment range, plus Mute and Mono
  Bass ±12.0 dB
  Treble ±12.0 dB
  Equalization 10-band graphic
  GEQ Center Frequencies 31.5, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k Hz
  GEQ Gain ±12.0 dB per band
  Delay 0.0 to 80.0 ms
  Limiter Threshold -80 to 0 dBz
  Limiter Ratio 1:1 to 10:1
  Limiter Attack 1 to 250 ms
  Limiter Release 1 to 1000 ms
  Limiter Curve Hard or soft knee

Audio – Digital Output
  Output Signal Types HDMI, DM 8G+ & HDBaseT
  Formats Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio, LPCM up to 8 channels [8]
  Mic -80 to +10 dB Level adjustment range, plus Mute and Pan [8]
  Source -80 to +10 dB Level adjustment range, plus Mute and Balance [8]
  Master Volume -80 to +10 dB Level adjustment range, plus Mute [8]

Connectors – Audio/Video Inputs
  VGA IN 1 – 4 (4) HD15 female;
Analog VGA/RGB/video inputs;
Signal Types: VGA, RGB, component, S-Video, or composite [5];
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC or PAL;
Input Level: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms nominal;
Sync Detection: RGBHV, RGBS, RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 2.2k Ohms
  AUDIO IN 1 – 4 (4) 3.5 mm TRS mini phone jacks;
Unbalanced stereo line-level analog audio inputs;
Input Impedance: 32k Ohms unbalanced;
Maximum Input Level: 2.8 Vrms unbalanced;
Note: If an HDMI input is selected but no digital audio signal is detected, the corresponding analog audio input is activated (AUDIO 1 for HDMI 1, etc.). Please note, the analog audio inputs do not pass audio if the HDMI video input resolution is higher than 1920x1200.
  HDMI IN 1 – 4 (4) 19-pin Type A HDMI female;
Digital video/audio inputs;
Signal Types: HDMI, DVI, or Dual-Mode DisplayPort [4]
  DM IN 1 – 2 (2) 8-pin RJ45 female, shielded;
DM 8G+ inputs, HDBaseT compliant;
PoDM PSE ports (HDBaseT PoE compatible);
Each connects to the DM 8G+ output of a DM transmitter or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [9]
  MIC IN (1) 3-pin 3.5 mm detachable terminal block;
Balanced microphone audio input;
Input Level: -60 to 0 dBV, 1 Vrms maximum;
Input Impedance: 6.5k Ohms balanced;
Phantom Power: 48 Volts DC, software enabled/disabled

Connectors – Audio/Video Outputs
  HDMI OUT (1) 19-pin Type A HDMI female;
Digital video/audio output;
Signal Types: HDMI, DVI [4]
  DM OUT (1) 8-pin RJ45 female, shielded;
DM 8G+ output, HDBaseT compliant;
PoDM PSE ports (HDBaseT PoE compatible);
Connects to the DM 8G+ input of a DM receiver or other DM device, or to an HDBaseT device, via CAT5e, Crestron DM-CBL-8G, or Crestron DM-CBL-ULTRA cable [9]
  AUDIO OUT (1) 5-pin 3.5 mm detachable terminal block;
Balanced/unbalanced stereo line-level audio output;
Output Impedance: 200 Ohms balanced, 100 Ohms unbalanced;
Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced

Connectors - Control & Power
  RELAY 1 – 2 (1) 4-pin 3.5 mm detachable terminal block;
Comprises (2) normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts
  INPUT 1 – 2 (1) 3-pin 3.5 mm detachable terminal block;
Comprises (2) programmable digital inputs;
Input Voltage Range: 0 to 24 Volts DC, referenced to GND;
Logic Threshold: 2.5 Volts DC nominal with 1 Volt hysteresis band;
Input Impedance: 10k Ohms at >5 Volts, 1M Ohms at <5 Volts;
Pull-up Resistor: 2.2k Ohms per input
  IR OUT (1) 3.5 mm mini-phone jack;
IR/Serial output port;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
  COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
  LAN (1) 8-pin RJ45 female;
10Base-T/100Base-TX Ethernet port
  USB 1 – 4 (4) USB Type A female;
USB 2.0 host ports for TT-100 series Crestron Connect It Cable Caddies[1];
Also enables firmware update via USB flash drive
  G (1) 6-32 screw, chassis ground lug
  NET (1) 4-pin 3.5 mm detachable terminal block;
Cresnet Master port;
Available Cresnet Power: 24 Watts
  100-240V~1.4A 50/60Hz (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
  COMPUTER (front) (1) USB Type B female;
USB computer console port;
For setup only
  IR IN (front) (1) Infrared sensor;
IR Frequency: 36 to 38 kHz;
IR Formats: Crestron format, RC5;
Allows control from IR wireless remotes using the Crestron or RC-5 command sets

Controls & Indicators
  PWR (1) Bi-color green/amber LED, indicates operating power supplied from AC line power, turns amber while booting and green when operating
  NET (1) Yellow LED, indicates Cresnet bus activity
  MSG (1) Red LED, indicates internal control system has generated an error message
  HW-R (1) Recessed pushbutton for hardware reset, reboots the control system
  SW-R (1) Recessed pushbutton for software reset, restarts the software program
  AUTO INPUT SELECT (1) Pushbutton and bi-color green/amber LED, selects auto-switching mode
  VGA INPUT SELECT 1 – 4 (4) Pushbuttons for manual input selection, and (4) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding VGA input
  HDMI INPUT SELECT 1 – 4 (4) Pushbuttons for manual input selection, and (4) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding HDMI input
  DM INPUT SELECT 1 – 2 (2) Pushbuttons for manual input selection, and (2) bi-color green/amber LEDs to indicate the current active input and signal presence at each corresponding DM input
  VOLUME (1) Continuous turn rotary encoder, adjusts the analog audio output volume
  DM IN 1 – 2 (rear) (4) LEDs, green LEDs indicate DM link status, amber LEDs indicate video and HDCP signal presence, for each corresponding DM input
  DM OUT (rear) (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence, for the DM output
  LAN (rear) (2) LEDs, bi-color LED (left) indicates Ethernet speed and activity, green LED (right) indicates Ethernet link status

Power
  Main Power 1.4 Amps @ 100-240 Volts AC, 50/60 Hz
  Power Consumption 42 Watts typical, 27 Watts idle
  Available Cresnet Power 24 Watts
  Power over DM (PoDM) IEEE 802.3at compliant PoDM PSE (Power Sourcing Equipment), each DM IN/OUT port supplies up to 15.4 Watts to power one PoDM (Class 0-3) PD (Powered Device) [12]
  Power over HDBaseT IEEE 802.3at PoE compliant PSE (Power Sourcing Equipment), each DM IN/OUT port supplies up to 15.4 Watts to power one HDBaseT PoE (Class 0-3) PD (Powered Device) [12]

Environmental
  Temperature 41° to 104° F (5° to 40° C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 142 BTU/hr typical, 93 BTU/hr idle

Enclosure
  Chassis Metal, black finish, fan-cooled, vented sides
  Front Panel Metal, black finish with polycarbonate label overlay
  Mounting Freestanding, 1 RU 19-inch rack-mount, or under-table mount (adhesive feet, rack ears, and under-table mounting brackets included)

Dimensions
  Height 1.74 in (45 mm) without feet
  Width 17.28 in (439 mm);
18.94 in (482 mm) with rack ears
  Depth 10.47 in (266 mm)

Weight
  6.4 lb (2.9 kg)
  1. Item(s) sold separately.
  2. The AirMedia Presentation Gateway, model AM-101, requires one HDMI input on the DMPS3-4K-150-C.
  3. Some features and functions described in this spec sheet may not be supported using .AV Framework. For a complete list of capabilities and options supported by .AV Framework, please visit: www.crestron.com/avframework.
  4. HDMI connections require an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
  5. The VGA inputs can accept component, composite, and S-Video signals using an appropriate adapter (not included). However, input sync detection is not provided for composite or S-Video signal types.
  6. When using an analog audio input in combination with an HDMI video input, the source’s video resolution must be 1920x1200 or lower. The analog audio input will not pass audio if the source’s video resolution is higher than 1920x1200.
  7. Automatically passes 3D video if the display device supports it (reverts to pass-through mode without scaling). Provides automatic 3D-to-2D conversion (with scaling) if the display device does not support 3D.
  8. Routing of a multichannel audio signal via a digital input and output (HDMI or DM) requires the input to be set for “mixer bypass” mode. When that input is selected, all audio controls on the digital output are disabled and the ability to route the microphone signal to that output is defeated. Mixer bypass mode also disables the Input Compensation control on that input.
  9. The maximum cable length for DigitalMedia 8G+ (DM 8G+) or HDBaseT is dependent upon the type of cable and resolution of the video signal. Refer to the “DM 8G+ & HDBaseT Maximum Cable Lengths” table for a detailed overview. Crestron legacy cable models DM-CBL DigitalMedia Cable and DM-CBL-D DigitalMedia D Cable support the same resolutions and cable lengths as CAT5e. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
  10. Manages the routing of USB HID signals between peripheral DM devices that are equipped with USB HID ports. The USB ports onboard the DMPS3-4K-150-C are not usable for USB signal routing. Also programmable to manage the routing of USB signals between Crestron USB over Ethernet Extender modules (USB-EXT-DM, sold separately). Refer to the USB-EXT-DM spec sheet for more information.
  11. License required. The DMPS3-4K-150-C supports a maximum of 500 BACnet objects when dedicated for BACnet use only. Actual capabilities are contingent upon the overall program size and complexity.
  12. Due to the inherent power loss that occurs over CATx cable, a maximum of 12.95 Watts is delivered at each PoDM or HDBaseT PoE powered device. Any wiring that is connected to a PoDM or HDBaseT PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
SKU DMPS3-4K-150-C
Barcode # 601527627710
Brand Crestron
Brand Crestron
Type Presentation Switcher
Colour Black
Model DMPS3-4K-150-C
Shipping Cubic 0.017794000m3

Be The First To Review This Product!

Help other Australian Computer Traders users shop smarter by writing reviews for products you have purchased.

Write a product review

Frequently Bought Together

Laptop Bag Laptop Bag

Laptop Bag

WAS $15.00
$12.00

Save $3 Grade A

Similar Items

Buying refurbished laptops not only gives you savings it helps reduce the environmental impact of e-waste

Find Out More
