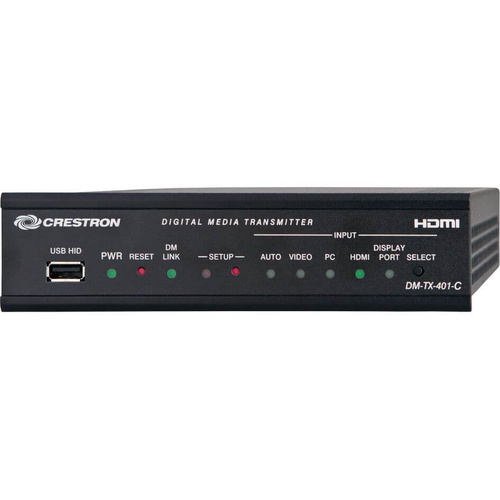

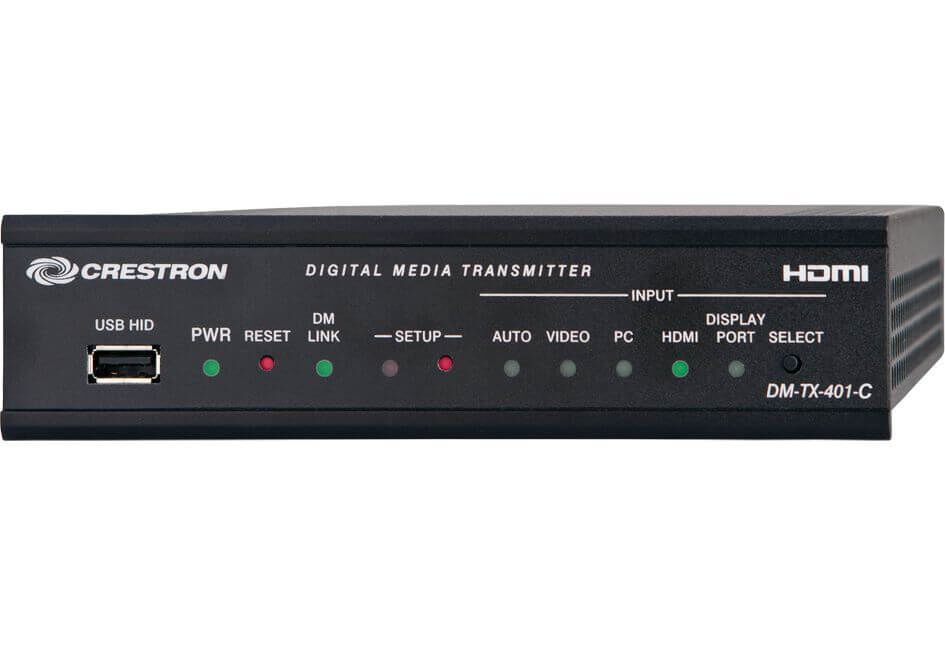

The DM-TX-401-C provides a versatile interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It functions as a DM 8G+® transmitter and switcher, providing DisplayPort™, HDMI®, VGA, composite video, and analog audio inputs. It also functions as a control module, providing RS-232 and IR control ports, plus Ethernet and USB HID ports for a total connectivity solution. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It can be rack-mounted, placed on a shelf, or attached under a table [1], and connects to the head end or display location using a single CAT type twisted pair cable.[2]

Installed in a stationary podium or equipment rack, the DM-TX-401-C offers an ideal solution for integrating rack-mounted sources, switchers, and AV receivers into the DigitalMedia system. Mounted under a table or in a movable lectern or AV cart, it affords a simple means for connecting mobile devices, computers, cameras, and other "BYOD" sources. In a conference center or auditorium, a portable DM-TX-401-C can be connected to the system through wall plates and floor boxes as needed, requiring just a single DM 8G+ jack (MP-WP181-C or MPI-WP181-C) at each location.

Key Features

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 4x1 AV switcher with front panel input selection, auto-switching, and analog audio-breakaway
  • QuickSwitch HD™ technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable [2]
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e [2]
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides DisplayPort™, HDMI®, RGB/component, and composite video inputs [3,5]
  • Also supports DVI sources [4]
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, and uncompressed 7.1 linear PCM audio
  • Includes RCA and mini-TRS stereo analog line-level audio inputs
  • Allows embedding of stereo 2-channel analog audio signals
  • HDCP compliant
  • Detects and reports detailed video and audio input information
  • Performs automatic AV signal format management via EDID
  • Includes advanced analog video processing and time base correction
  • Provides a 10/100 Ethernet LAN connection
  • Enables device control via CEC, IR, RS-232, and Ethernet
  • Enables USB HID signal extension for a local keyboard/mouse
  • Compatible with Crestron® USB over Ethernet Extenders [8]
  • Compatible with Crestron Connect It™ Cable Caddies [9]
  • Allows quick, easy setup and diagnostics
  • Single-space, half-width 19-inch rack-mountable [1]
  • Under-table mountable [1]
  • Powered via the DM connection or PW-2407WU power pack (sold separately) [6,7]
  1. The ST-RMK Rack Mount Kit and UTK-1U-HALF Under-Table Mounting Kit are sold separately.
  2. For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia 8G Cable or third-party CAT5e (or better) UTP or STP. (Crestron legacy DM-CBL DigitalMedia Cable or DM-CBL-D DigitalMedia D Cable may also be used.) The maximum wire length for DM 8G+ is 330 ft (100 m) between devices. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
  3. The DisplayPort input only supports native DisplayPort signals. To connect an HDMI source to this input, an active HDMI-to-DisplayPort converter must be used.
  4. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
  5. The PC input can actually accept component, composite, and S-Video signals through an appropriate adapter (not included), or via direct interface to Crestron MPS Series products. However, input sync detection is not provided for composite or S-Video signal types through this connection.
  6. To power the DM-TX-401-C using PoDM (Power over DigitalMedia) requires connection to a DM switcher or other equipment that has a PoDM PSE port. Any wiring that is connected to a PoDM PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
  7. To power the DM-TX-401-C using HDBaseT PoE requires connection to a switcher or other equipment that has an HDBaseT PoE PSE port. Any wiring that is connected to an HDBaseT PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
  8. USB-EXT-DM USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM spec sheet for more information.
  9. TT-100 series cable caddies are sold separately. Refer to the TT-100 spec sheet for more information.

(DM-TX-401-C-R)

Video
  Switcher 4x1 auto-switching, auto-detecting multi-format digital/analog inputs; Crestron QuickSwitch HD technology
  Input Signal Types DisplayPort, HDMI w/Deep Color & 3D (DVI & Dual-Mode DisplayPort compatible [4]), RGB/VGA (RGBHV, RGBS, RGsB), component (YPbPr), S-Video (Y/C), composite (NTSC, PAL) [5]
  Output Signal Types DM 8G+ & HDBaseT w/Deep Color & 3D [2]
  Resolutions, DisplayPort, Progressive 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1152@60Hz, plus any other resolution allowed by DisplayPort up to 165 MHz pixel clock
  Resolutions, DisplayPort, Interlaced 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by DisplayPort up to 165 MHz pixel clock
  Resolutions, HDMI, Progressive 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165 MHz pixel clock
  Resolutions, HDMI, Interlaced 720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165 MHz pixel clock
  Resolutions, RGB 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1152@60Hz
  Resolutions, Component [5] 480i, 576i, 480p, 576p, 720p50, 720p60, 1080p24, 1080i25 (1125 lines), 1080i30, 1080p30, 1080p50 (1125 lines), 1080p60
  Resolutions, Composite & S-Video [5] 480i, 576i
  Analog-To-Digital Conversion 12-bit 170 MHz per each of 3 channels

Audio
  Switcher 4x1 with auto-detecting digital/analog inputs and analog audio breakaway
  Input Signal Types DisplayPort, HDMI (Dual-Mode DisplayPort compatible), analog stereo
  Output Signal Types DM 8G+ & HDBaseT
  Digital Formats, DisplayPort Dolby Digital®, Dolby Digital EX, DTS®, DTS-ES, DTS 96/24, LPCM up to 8 channels
  Digital Formats, HDMI Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels
  Analog Formats Stereo 2-channel
  Analog-To-Digital Conversion 24-bit 48 kHz
  Analog Input Level Compensation ±10 dB
  Analog Performance Frequency Response: 20 Hz to 20 kHz ±0.75 dB;
S/N Ratio: >90 dB, 20 Hz to 20 kHz A-weighted;
THD+N: <0.05% @ 1 kHz;
Stereo Separation: >90 dB

Communications
  Ethernet 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
  USB Supports signal extension of USB HID class devices, expandable to support virtually any USB 1.1 or 2.0 device using Crestron USB-EXT-DM USB over Ethernet Extenders [8]; supports a TT-100 series cable caddy [9]
  RS-232 2-way device control and monitoring up to 115.2k baud with hardware and software handshaking (via control system)
  IR/Serial 1-way device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5 Volts) up to 19.2k baud (via control system)
  DigitalMedia DM 8G+, HDCP, EDID, CEC, PoDM, Ethernet
  HDBaseT HDCP, EDID, PoE, Ethernet
  DisplayPort HDCP, EDID, CEC
  HDMI HDCP, EDID, CEC
  NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI device and a control system

Connectors
  VID (1) RCA female;
Composite video input;
Input Level: 1 Vp-p nominal;
Input Impedance: 75 Ohms nominal
  PC (1) HD15 female;
Analog VGA/RGB/video input;
Signal Types: VGA, RGB, component, S-Video, or composite [5];
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL;
Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms;
Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 510 Ohms
  AUDIO IN (1) 3.5 mm TRS mini phone jack;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
  AUDIO IN L, R (2) RCA female;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
  HDMI (1) 19-pin Type A HDMI female;
HDMI digital video/audio input;
(DVI & Dual-Mode DisplayPort compatible [4])
  DISPLAY PORT (1) 20-pin DisplayPort female;
DisplayPort digital video/audio input [3]
  COM (1) 5-pin 3.5mm detachable terminal block;
Bidirectional RS-232 port;
Up to 115.2k baud, hardware and software handshaking support
  IR (1) 2-pin 3.5mm detachable terminal block;
IR/Serial port;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 19200 baud
  DM OUT (1) 8-pin RJ45 female, shielded;
DM 8G+ output, HDBaseT compliant;
PoDM PD port (HDBaseT PoE compatible) [6,7];
Connects to the DM 8G+ input of a DM switcher, receiver/room controller, or other DM device, or to an HDBaseT device, via CAT5e or Crestron DM-CBL-8G cable [2]
  24VDC 0.75A (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack (sold separately)
  LAN (1) 8-pin RJ45 female;
10Base-T/100Base-TX Ethernet port
  G (1) 6-32 screw;
Chassis ground lug
  USB HID (front) (1) USB Type A female;
USB 2.0 host port for connection of a mouse/keyboard or other USB HID-compliant device, or for connection of a Crestron TT-100 series device (Crestron Connect It) [9]

Controls & Indicators
  PWR (1) Green LED, indicates operating power supplied via PoDM, HDBaseT PoE, or PW-2407WU power pack (sold separately)
  RESET (1) Recessed pushbutton for hardware reset
  DM LINK (1) Green LED, indicates DM link status
  SETUP (1) Red LED and (1) recessed pushbutton for Ethernet setup
  INPUT AUTO, VIDEO, PC, HDMI, DISPLAY PORT (5) Green LEDs, indicate which input is selected or if auto-switch mode is active
  INPUT SELECT (1) Pushbutton for selecting inputs or activating auto-switch mode
  DM OUT (rear) (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
  LAN (rear) (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity

Power
  Power Pack (sold separately) Input: 100-240 Volts AC, 50/60 Hz;
Output: 0.75 Amps @ 24 Volts DC;
Model: PW-2407WU
  Power over DM (PoDM) IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment) [6]
  Power over HDBaseT IEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PoE PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment) [7]

Environmental
  Temperature 32° to 104° F (0° to 40° C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 45 BTU/hr

Enclosure
  Chassis Metal, black finish, vented top and sides
  Front Panel Metal, black finish with polycarbonate label overlay
  Mounting Freestanding, under-table mountable, or 1 RU half-width 19-inch rack-mountable (adhesive feet attached, under-table and rack mounting kits sold separately)

Dimensions
  Height 1.76 in (45 mm)
  Width 7.07 in (180 mm)
  Depth 8.75 in (223 mm)

Weight
  2.0 lb (0.9 kg)
SKU DM-TX-401-C-R
Barcode # 615678574311
Brand Crestron
Brand Creston
Type Video Extender
Colour Black
Model DM-TX-401-C
