Crestron DM-MD8X8 8x8 DigitalMedia™ Switcher 2017 w/5 Input Cards
SKU: DM-MD8X8-2017-1-R
Crestron DM-MD8X8 8x8 DigitalMedia™ Switcher 2017 w/5 Input Cards SKU: DM-MD8X8-2017-1-R
$379.00
Refurbished — Grade A View device grading info.

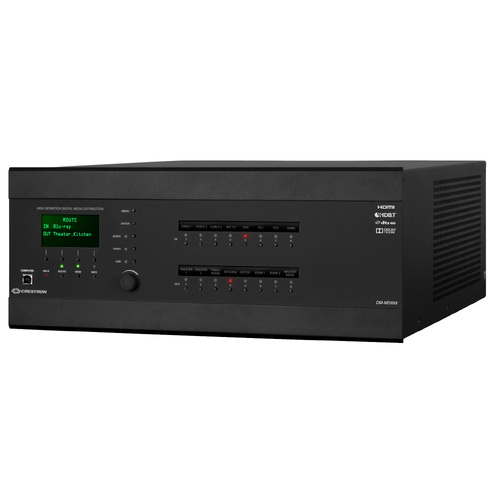

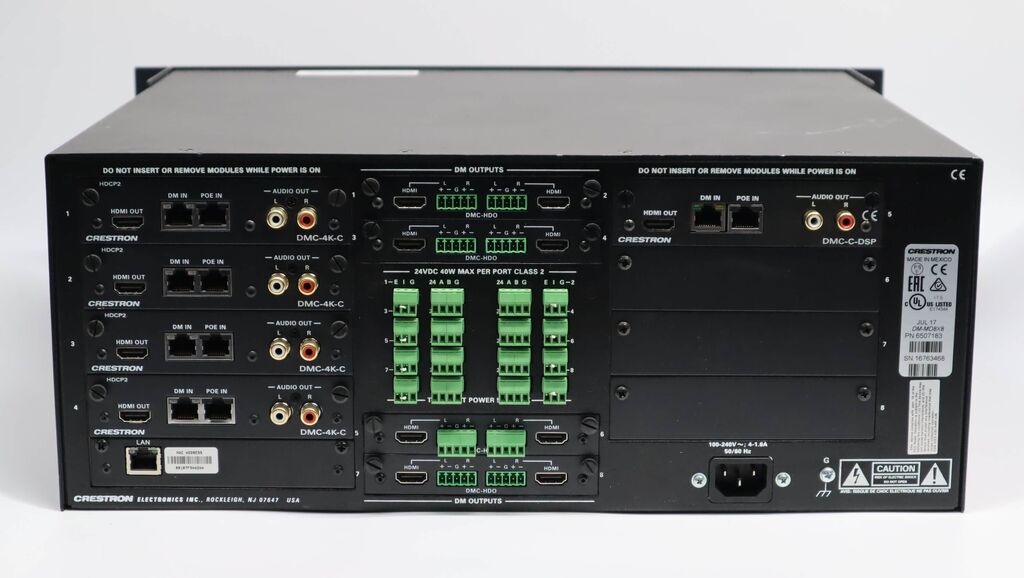

Note: Tested to power on, settings reset. Includes DM-MD8X8 Switcher with 4x DMC-4K-C and 1x DMC-C-DSP input cards, 4x DMC-HDO output cards
A fully modular and expandable 8x8 DigitalMedia matrix switcher offering ultra-fast digital video and audio switching, and lossless HD multiroom signal distribution, for all types of AV sources. Provides complete management for SD, HD, UHD, 2K, 4K, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo audio, H.264 streaming, and a full range of selectable input and output types.
(DM-MD8X8-2017-1-R)
Maximum DM 8G® Cable Lengths |
||||
| Cable Type: | ||||
| Resolution: |
DM-CBL-ULTRA DigitalMedia™ Ultra Cable |
DM-CBL-8G DigitalMedia 8G™ Cable |
Third-Party CAT5e (or better) UTP or STP |
|
| 1080p60 Full HD | 330 ft (100 m) via any DM 8G+ cards |
|||
| 1920x1200 WUXGA | ||||
| 1600x1200 UXGA | ||||
| 2048x1080 2K DCI @24Hz | ||||
| 2048x1080 2K DCI @60Hz | 330 ft (100 m) via "4K" DM 8G+ cards |
230 ft (70 m) via "4K" DM 8G+ cards |
165 ft (50 m) via "4K" DM 8G+ cards |
|
| 2560x1440 WQHD | ||||
| 2560x1600 WQXGA | ||||
| 3840x2160 Ultra HD | ||||
| 4096x2160 4K DCI | ||||
| Cable Type: | |||||
| Resolution: |
CRESFIBER8G CresFiber® 8G Multimode Fiber |
Third-Party OM3 Multimode Fiber |
CRESFIBER8G-SM CresFiber 8G Single-Mode Fiber |
Third-Party G.652.D (or better) Single-Mode Fiber |
|
| 1080p60 Full HD | 1000 ft (300 m) via DM 8G Fiber cards |
500 ft (150 m) via DM 8G Fiber cards |
7.5 miles (12 km) via DM 8G SM Fiber cards |
||
| 1920x1200 WUXGA | |||||
| 1600x1200 UXGA | |||||
| 2048x1080 2K DCI @24Hz | |||||
Video |
||
| Switcher | 8x8 digital matrix, modular input/output cards, Crestron QuickSwitch HD™ | |
| Input Signal Types | Configurable via modular plug-in cards supporting HDMI® (DVI & Dual-Mode DisplayPort compatible [11]), DVI, 3G-SDI, RGB/VGA, component, S-Video, composite (NTSC & PAL), DM 8G+® & HDBaseT®, DM 8G Fiber, DM 8G SM Fiber, DM® CAT (legacy), DM Fiber (legacy), & H.264 streaming | |
| Output Signal Types | Configurable via modular plug-in cards supporting HDMI (DVI compatible [14]), DM 8G+ & HDBaseT, DM 8G Fiber, DM 8G SM Fiber, DM CAT (legacy), DM Fiber (legacy), & H.264 streaming (All input cards also include HDMI pass-through outputs) | |
| Backplane Data Rate | 12.5 Gbps | |
| Note: For additional specifications, please refer to the spec sheet for each input and output card. | ||
Audio |
||
| Switcher | 8x8 digital multichannel audio-follow-video matrix switching, plus independent 8x8 stereo matrix for audio breakaway | |
| Input Signal Types | Configurable via modular plug-in cards supporting HDMI (Dual-Mode DisplayPort compatible [11]), 3G-SDI, analog (stereo 2-channel), SPDIF, DM 8G+ & HDBaseT, DM 8G Fiber, DM 8G SM Fiber, DM CAT (legacy), DM Fiber (legacy), & H.264 streaming | |
| Output Signal Types | Configurable via modular plug-in cards supporting HDMI, analog (stereo 2-channel), DM 8G+ & HDBaseT, DM 8G Fiber, DM 8G SM Fiber, DM CAT (legacy), DM Fiber (legacy), & H.264 streaming (All input cards also include HDMI pass-through outputs, and most digital audio input cards also include analog stereo pass-through audio outputs) | |
| Note: For additional specifications, please refer to the spec sheet for each input and output card. | ||
Communications |
||
| Ethernet | 10/100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Private Network Mode | |
| USB | USB signal routing via select input cards, transmitters, receivers, and extenders [15]; USB computer console port for setup | |
| DigitalMedia | DM 8G+, DM 8G Fiber, DM 8G SM Fiber, DM Fiber, DM CAT, DMNet™, HDCP 2.2 [3], EDID, CEC, PoDM, PoDM+, Ethernet | |
| HDBaseT | HDCP 2.2 [3], EDID, CEC, RS-232, PoH, Ethernet | |
| HDMI | HDCP 2.2 [3], EDID, CEC | |
| NOTE: Supports management of HDCP and EDID; supports management of CEC between connected HDMI and HDBaseT devices and a control system.[13] For additional specifications, please refer to the spec sheet for each input and output card. | ||
Card Slots |
||
| 1 – 8 | (8) DM switcher input card slots; Each slot accepts (1) DMC-series input card |
|
| DM OUTPUTS 1 – 8 | (4) DM switcher output card slots; Each slot accepts (1) DMC-series output card |
|
Connectors |
||
| LAN | (1) 8-pin RJ45 female; 10Base-T/100Base-TX/1000Base-T Ethernet port |
|
| 24ABG / EIG 1 – 8 | (8) sets of (1) 4-pin and (1) 3-pin 3.5 mm detachable terminal blocks; Comprises (8) DMNet ports with "EIG" power selection ports, each set is associated with the corresponding DM CAT output port on any installed DM CAT output card; Each DMNet port provides power and communications for a DM CAT device connected via DM cable; Each EIG port connects to an external power supply [16], or to the internal power source via a jumper, to power the DM CAT device connected to the corresponding DMNet port; Maximum Load: 40 Watts (1.66 Amps @ 24 Volts DC) per port, limited to the available DMNet power from the internal power supply (see "Power Requirements" below) or an external power supply [16] |
|
| 100-240V~4-1.6A 50/60Hz | (1) IEC 60320 C14 main power inlet; Mates with removable power cord, included |
|
| G | (1) 6-32 screw, chassis ground lug | |
| COMPUTER (front) | (1) USB Type B female; USB computer console port (6 ft cable included) |
|

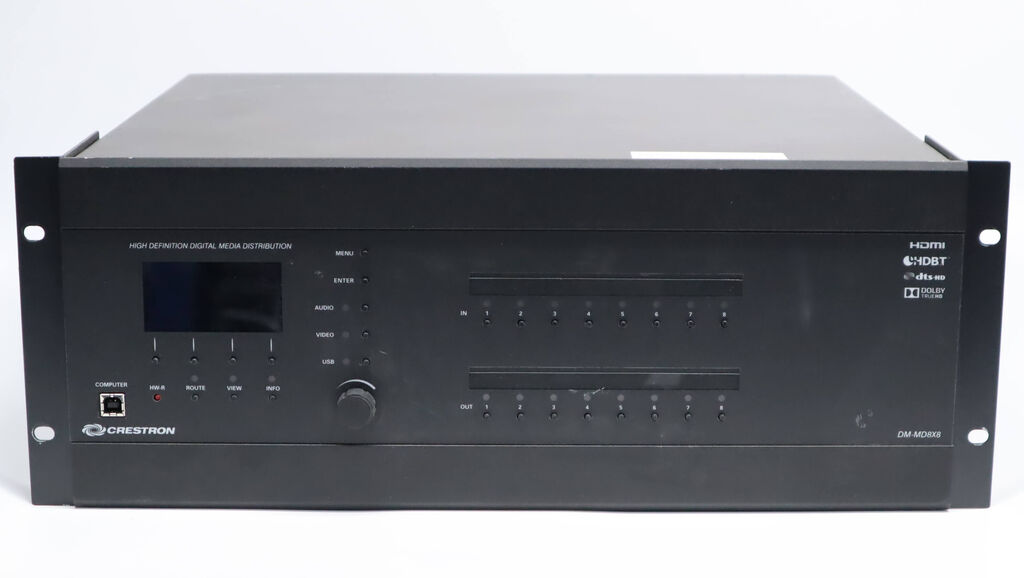

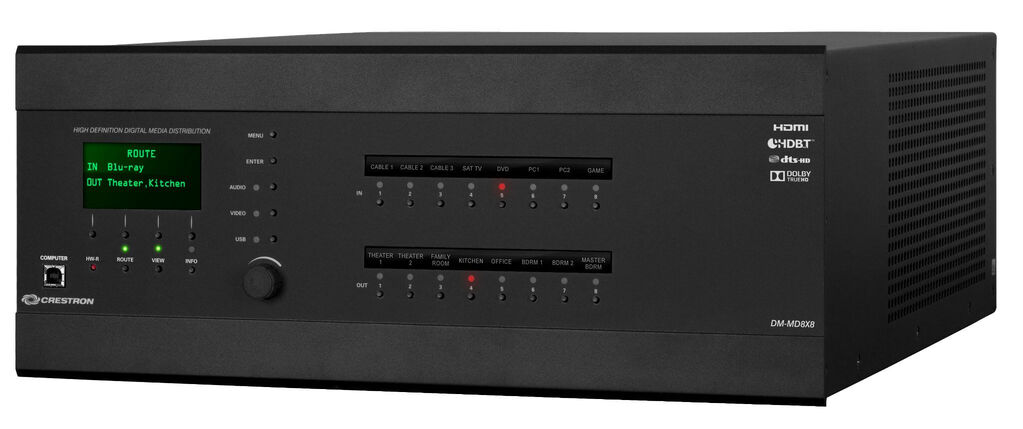

Controls & Indicators |
||
| LCD Display | Green LCD dot matrix, 128 x 64 resolution, adjustable LED backlight, displays inputs/outputs by name, video & audio signal information, Ethernet configuration and setup menus | |
| SOFTKEYS | (4) Pushbuttons for activation of LCD driven functions | |
| HW-R | (1) Recessed pushbutton for hardware reset, reboots the switcher | |
| ROUTE | (1) Pushbutton and red LED, selects ROUTE mode to allow routing changes | |
| VIEW | (1) Pushbutton and red LED, selects VIEW mode for viewing current routes | |
| INFO | (1) Pushbutton and red LED, selects INFO mode for viewing AV and device info | |
| MENU | (1) Pushbutton, steps menu back one level | |
| ENTER | (1) Pushbutton, executes highlighted menu or value | |
| AUDIO | (1) Pushbutton & red LED, selects audio routing view | |
| VIDEO | (1) Pushbutton & red LED, selects video routing view | |
| USB | (1) Pushbutton & red LED, selects USB routing view | |
| Quick-Adjust Knob | (1) Continuous turn rotary encoder, adjusts menu parameters | |
| IN 1 – 8 | (8) Pushbuttons and red LEDs, each selects the corresponding input for routing | |
| OUT 1 – 8 | (8) Pushbuttons and red LEDs, each selects the corresponding output for routing | |
| LAN (rear) | (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity | |
Power Requirements |
||
| Main Power | 4-1.6 Amps @ 100-240 Volts AC, 50/60 Hz | |
| Power Consumption | 220 Watts typical | |
| Available DMNet Power | 55 Watts (2.3 Amps @ 24 Volts DC) from internal power supply | |
| Available PoDM/PoH Power | Refer to the specifications for each DM 8G+ input and output card | |
Environmental |
||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Heat Dissipation | 750 BTU/hr | |
| Ambient Noise | 31.5 to 37 dBA typical; 30 to 30.5 dBA idle |
|
Enclosure |

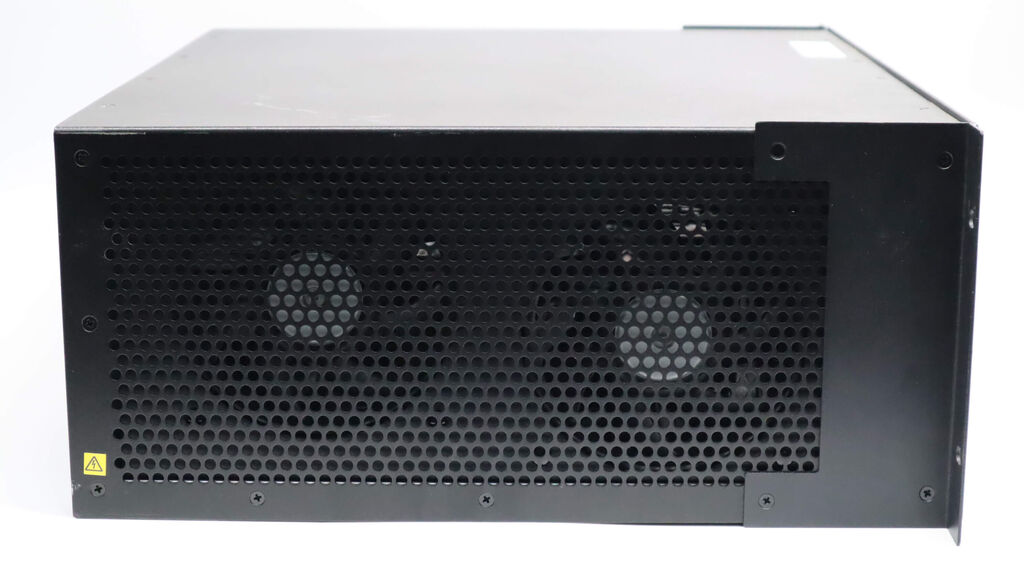

||
| Chassis | Metal with black finish, vented sides, fan-cooled | |
| Front Panel | Metal, black finish with polycarbonate label overlay | |
| Mounting | Freestanding or 4 RU 19-inch rack-mountable (adhesive feet and rack ears included) | |
Dimensions |
||
| Height | 6.97 in (177 mm) without feet | |
| Width | 17.28 in (439 mm), 19.06 in (485 mm) with rack ears | |
| Depth | 15.71 in (399 mm) without cards | |
Weight |
||
| 20.0 lb (9.1 kg) without cards | ||
- All output types are configured in pairs except for streaming (a single streaming output occupies the space of two outputs of any other type). To configure a complete DM switcher with output and input cards, please use the online DigitalMedia Switcher Configuration Tool. Current DM switchers use DMC-series “single-gang” output cards. For older DM switchers with DMCO-series “multi-gang” output cards, please use the online Output Card Additions and Upgrades Tool to update your existing output cards and switcher to the new single-gang output card format.
- Crestron control via the DM network requires a Crestron control system, sold separately.
- 4K, Ultra HD, and HDCP 2.2 are currently supported over HDMI, DM 8G+, and HDBaseT using select input and output cards. Refer to the specifications for each input/output card and each connected device for its full capabilities.
- The maximum cable length for DigitalMedia 8G+ (DM 8G+) or HDBaseT is dependent upon the type of cable, the choice of input/output card, and the resolution of the video signal. Refer to the “Maximum DM 8G Cable Lengths” table for a detailed overview. Crestron legacy cable models DM-CBL DigitalMedia Cable and DM-CBL-D DigitalMedia D Cable support the same resolutions and cable lengths as CAT5e. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment.
- The maximum cable length for DigitalMedia 8G Fiber (DM 8G Fiber) is 1000 ft (300 m) using CRESFIBER8G multimode fiber optic cable, or 500 ft (150 m) using CRESFIBER (legacy), or third-party OM3 multimode fiber optic cable.
- The maximum cable length for DigitalMedia 8G Single-Mode Fiber (DM 8G SM Fiber) is 7.5 miles (12 km) using CRESFIBER8G-SM or third-party G.652.D (or better) single-mode fiber optic cable.
- The maximum cable length for DigitalMedia CAT (DM CAT) is 450 ft (137 m) using DM-CBL DigitalMedia Cable. Actual cable length depends upon multiple factors. Up to two DM Repeaters (Model DM-DR) may be required.
- The maximum cable length for DigitalMedia Fiber (DM Fiber) is 1000 ft (300 m) using CRESFIBER (legacy), CRESFIBER8G, or third-party OM2/OM3 duplex multimode fiber optic cable.
- Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. All wire and cables are sold separately.
- Streaming output supports 2-channel stereo audio only. Multichannel surround sound audio sources cannot be streamed unless downmixed to stereo. Stereo downmix capability requires a “DSP” type DM switcher input card, sold separately.
- Any HDMI input can support a DVI or Dual-Mode DisplayPort signal using a suitable adapter or interface cable.
- Item(s) sold separately.
- Control of third-party HDBaseT devices using CEC is only supported via “4K” DM 8G+ input and output cards.
- DVI output is supported via an HDMI output port using a suitable adapter or interface cable. CBL-HD-DVI interface cables are available separately.
- Manages the routing of USB HID signals between peripheral DM devices and input cards that are equipped with USB HID ports. Also programmable to manage the routing of USB signals between Crestron USB over Ethernet Extender modules (USB-EXT-DM, sold separately). Refer to the USB-EXT-DM spec sheet for more information.
- For external DMNet power, use a Crestron CNPWS-75, C2N-SPWS300, or other Cresnet power supply as required. Do not interconnect DMNet with Cresnet.
| SKU | DM-MD8X8-2017-1-R |
| Barcode # | 601527577428 |
| Brand | Crestron |
| Brand | Crestron |
| Type | Digital Media Switcher |
| Model | DM-MD8X8 |
| Shipping Cubic | 0.035280000m3 |
