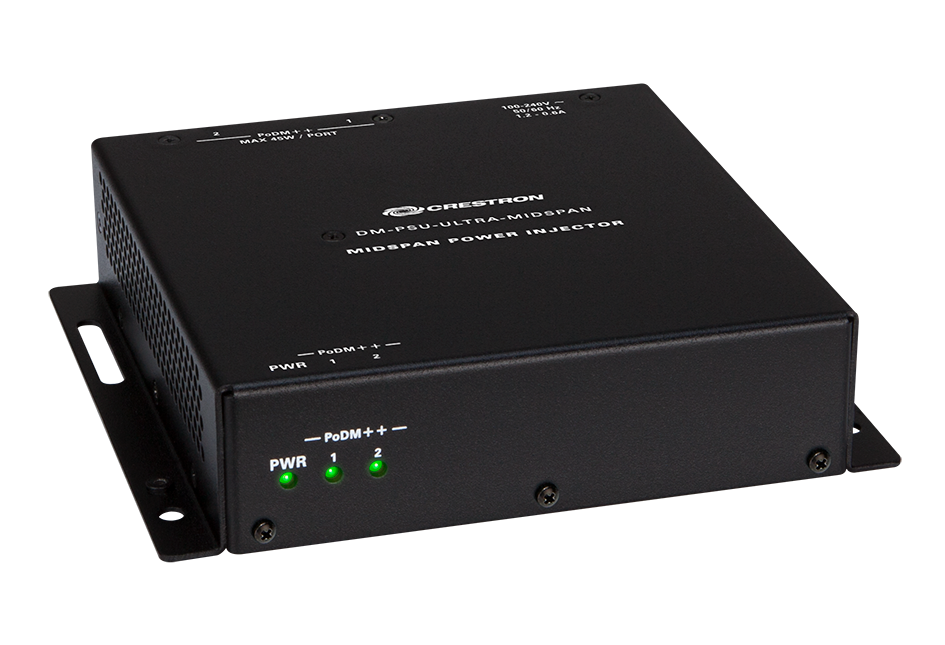

The Crestron® DM-PSU-ULTRA-MIDSPAN provides a single-point, midspan power injector for one or two PoDM-powered DM 8G+® devices. Its ability to deliver power in two directions without impacting the video or data signals passing through is unique in the industry. Its high-output power capacity of 45 Watts per port enables support for PoDM+ and PoDM++ powered devices including the Crestron TS-1542-C touch screen.

Bidirectional Power
The DM-PSU-ULTRA-MIDSPAN installs in line between two DM 8G+ devices and provides power to either or both of those devices. This allows a DM 8G+ transmitter and receiver, such as the DM-TX-4K-302-C and DM-RMC-4K-SCALER-C-DSP, to be paired together to form a custom point-to-point 4K signal extender, all powered from a single midspan power source. The use of a midspan power source with bidirectional powering capability eliminates the need for separate power supplies or electrical outlets at either endpoint.

2-Port PoDM++ Power Supply
For larger systems utilizing a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher, the DM-PSU-ULTRA-MIDSPAN can be used to supply PoDM++ power to two DM 8G+ devices via their connections to the switcher. Instead of installing in line, each port on the DM-PSU-ULTRA-MIDSPAN can be connected to the POE IN port of a DMC-4K-C input card, DMC-4K-C-DSP input card, or DMC-4K-CO-HD output card. Doing so enables the powering of two separate devices, whether transmitters, receivers, or touch screens, through the DM port on each card. A maximum of 45 Watts is available at each port.

HDBaseT® Compatible
The DM-PSU-ULTRA-MIDSPAN is compatible with HDBaseT® Alliance specifications and may be used to supply power to IEEE 802.3at compliant HDBaseT PoE+ powered devices.

Mounting Options
The DM-PSU-ULTRA-MIDSPAN features integral mounting flanges to allow for surface mounting under a table, or attachment to a single rack rail. One or two units may also be installed in a single rack space using the optional rack mount kit (model ST-RMK, sold separately).

Key Features

  • Powers one or two PoDM-powered DM 8G+® devices
  • Supports PoDM+ and PoDM++ powered devices
  • Simultaneously supplies up to 45 Watts from each port
  • Inserts midspan and supplies power to both endpoints
  • Preserves the integrity of 4K video and 10 GB data signals
  • Maintains full 300 ft (100 m) cable length end-to-end
  • Also functions as a 2-port PoDM++ power supply for DMC I/O cards
  • Compatible with HDBaseT® PoE+ powered devices
  • Includes status indicators for basic troubleshooting
  • No configuration or programming required
  • Surface or under-table mountable
  • Attachable to a single rack rail
  • 1 RU rack mount kit option sold separately

(DM-PSU-ULTRA-MIDSPAN-R)

Connectors
  G (1) 6-32 screw;
Chassis ground lug
  100-240V~ 50/60Hz 1.2-0.6A (1) IEC 60320 C14 main power inlet;
Mates with removable power cord, included
  PoDM++ 1 – 2 (2) 8-pin RJ45 female, shielded;
DM 8G+ pass-through ports (HDBaseT compatible);
PoDM++ PSE ports (HDBaseT PoE+ compatible)
Indicators
  PWR (1 bottom/front, 1 top/rear) Green LEDs, each indicates main AC line power is connected and the unit is operating
  PoDM++ 1 – 2 (bottom/front) (2) Green LEDs, each indicates the corresponding port is delivering power to the connected device
  PORT PWR 1 – 2 (top/rear) (2) Green LEDs, each indicates the corresponding port is delivering power to the connected device
Power
  Main Power 1.2 Amp @ 100-125 Volts AC or 0.6 Amp @ 220-240 Volts AC, 50/60 Hz
  Power Consumption 0.7 Watts at idle
  Power over DM (PoDM) IEEE 802.3at compliant PoDM++ PSE (Power Sourcing Equipment); each port supplies up to 45 Watts to power one PoDM (Class 0-3), PoDM+ (Class 4), or PoDM++ PD (Powered Device)
  Power over HDBaseT IEEE 802.3at PoE+ compliant PSE (Power Sourcing Equipment); each port supplies up to 30 Watts to power one HDBaseT PoE or PoE+ PD (Powered Device)
Environmental
  Temperature 32° to 104° F (0° to 40° C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 41 BTU/hr maximum;
8.2 BTU/hr typical;
2.4 BTU/hr idle
Enclosure
  Chassis Metal, black finish, (2) integral mounting flanges, vented sides
  Mounting Freestanding, surface mount, attach to a single rack rail, or 1 RU rack mount (ST-RMK rack mount kit sold separately)
Dimensions
  Height 6.06 in (154 mm)
  Width 6.95 in (177 mm)
  Depth 1.64 in (42 mm)
Weight
  2.6 lb (1.2 kg)
SKU DM-PSU-ULTRA-MIDSPAN-R
Barcode # 615678853270
Brand Crestron
Brand Creston
Type PoDM Injector
Model DM-PSU-ULTRA-MIDSPAN
Shipping Cubic 0.017794000m3
