Professional System Integration

The AMP-2210S includes professional balanced inputs with rear-panel ±10dB input level adjustments to assure compatibility with a wide range of audio sources. Remote power control is enabled for each channel using external contact closures, switches, or control system relays. All input, output, and remote control connections are facilitated via detachable screw-terminal connectors to simplify installation and servicing.

Cool and Compact

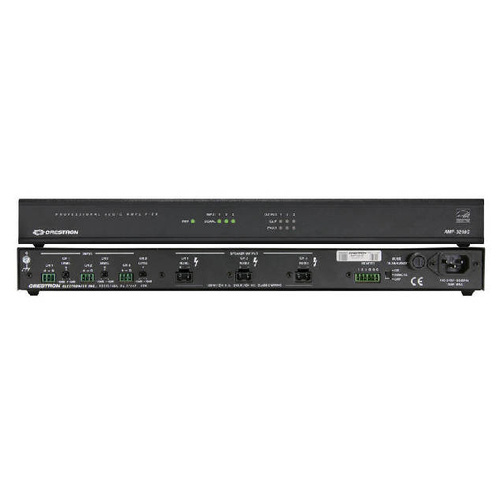

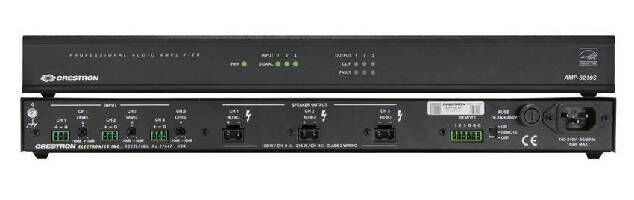

The AMP-2210S features a durable, lightweight chassis that may be placed on a shelf, or rack-mounted using the rack ears provided. At only one rack space high and under 11 inches deep, it is ideal for installations requiring a lot of power in a limited space. Its efficient, cool-running design gives off substantially less heat than comparably rated amplifiers. Convection cooling means there are no noisy fans, allowing the AMP-2210S to be installed in a boardroom lectern or credenza without affecting noise levels.

Rugged and Dependable

All AMP-series amplifiers are designed for ultimate dependability in a wide range of commercial environments. Built-in over current and DC offset protection on each channel helps prevent damage to the amplifier and speakers due to external or internal faults. Discrete thermal protection is also provided on each channel and the power supply. Front panel indicators are provided for each channel to show signal presence, clipping, and fault conditions.

(AMP-2210S-R)

Audio

  • Typical of 2 mono amplifier channels:
  Input Signal Type Balanced or unbalanced analog line-level
  Output Signal Types 4/8 Ohm, 70 Volt, or 100 Volt
  Output Power 120 Watts at 8 Ohms;
210 Watts at 4 Ohms;
420 Watts at 8 Ohms bridged;
120 Watts at 70 or 100 Volts (Transformer isolated)
  Damping Factor >100
  Protection Over Current, Over/Under Voltage, Over Temperature, DC Offset
  Frequency Response 20Hz to 20kHz ±0.5 dB at 4/8 Ohms;
80Hz to 20kHz +0/-3 dB at 70/100 Volts
  THD 0.05% @ 1kHz, full rated power at 4/8 Ohms, 8 Ohms Bridged, or 70/100 Volts;
0.1% @ 20Hz to 20kHz, 120W at 8 Ohms;
0.2% @ 20Hz to 20kHz, 210W at 4 Ohms;
0.1% @ 20Hz to 20kHz, 420W at 8 Ohms Bridged;
0.1% @ 80Hz to 20kHz, 120W at 70/100 Volts
  S/N Ratio >103 dB, A-weighted
  Crosstalk >70 dB @ 1kHz
  Gain 23 dB with INPUT LEVEL control set at 12 o'clock nominal position
  Input Sensitivity 2.22 Vrms for rated output power with INPUT LEVEL control set at 12 o'clock nominal position
  Input Detection Threshold 40 mV RMS @ 1 kHz
  Input Level Adjustment ±10 dB from nominal
Connectors
  G 6-32 screw, chassis ground lug
  INPUT CH 1 – 2 (2) 3-pin 3.5mm detachable terminal blocks;
Balanced/unbalanced line-level audio inputs;
Input Level: 5.3 Vrms maximum with INPUT LEVEL control set at minimum position;
Input Impedance: 24k Ohms balanced, 12k Ohms unbalanced
  SPEAKER OUTPUT CH 1 – 2 (2) 4-pin 7.62mm 15A detachable terminal blocks;
4Ω/8Ω and 70/100V power amplifier outputs;
Wire Size: Terminals accept up to 14 AWG
  REMOTE (1) 6-pin 3.5mm detachable terminal block;
Provides (2) remote control inputs; enables independent power control of each channel via local jumpers or remote contact closures;
inputs may be safely paralleled for global control
  FUSE T6.3AH 250V Main fuse holder;
5x20 mm, 250V, 6.3AH, time-lag, high-rupture rated
  100-240V~50/60Hz (1) IEC C14 male chassis plugs, main power input;
Mates with removable power cord (included)
Controls & Indicators
  PWR (1) dual-color LED, green indicates ACTIVE state, yellow indicates STANDBY state
  INPUT 1 – 2, SIGNAL (2) green LEDs, indicate signal presence on each corresponding channel
  OUTPUT 1 – 2, CLIP (2) amber LEDs, indicate a clipping condition on each corresponding channel
  OUTPUT 1 – 2, FAULT (2) red LEDs; indicate over-temperature, over-current, over or under power supply voltage, or DC offset condition on each corresponding channel
  INPUT CH 1 – 2 LEVEL (rear) (2) Rotary input boost/attenuate adjustments w/center detent at nominal
  SPEAKER OUTPUT CH 1 – 2, 100V / 70V / 4/8Ω (rear) (2) 3-position slide switches, select the output configuration for each corresponding channel
  ON/REMOTE/OFF (rear) (1) 3-position slide switch; selects between all channels powered on, all channels powered off, or remote control of each individual channel
Power Requirements
  Main Power 100-240 Volts AC, 50/60 Hz
  Power Consumption 62 Watts @ 8 Ohms, all channels driven at 1/8th output power;
88 Watts @ 4 Ohms, all channels driven at 1/8th output power;
63 Watts @ 70/100V, all channels driven at 1/8th output power;
26 Watts, all channels idle;
<1 Watt in standby
Environmental
  Temperature 41° to 104°F (5° to 40°C)
  Humidity 10% to 90% RH (non-condensing)
  Heat Dissipation 110 BTU/Hr @ 8 Ohms, all channels driven at 1/8th output power;
121 BTU/Hr @ 4 Ohms, all channels driven at 1/8th output power;
113 BTU/Hr @ 70/100V, all channels driven at 1/8th output power;
89 BTU/Hr, all channels idle;
<3.4 BTU/Hr in standby
Enclosure
  Chassis Metal with black finish, vented top and sides, convection cooled
  Front Panel Metal, black finish with polycarbonate label overlay
  Mounting Freestanding or 1U 19-inch rack-mountable (adhesive feet and rack ears included)
Dimensions
  Height 1.70 in (44 mm)
  Width 17.28 in (439 mm);
19.0 in (483 mm) with rack ears
  Depth 14.59 in (371 mm)
Weight
  15.1 lb (6.9 kg)
SKU AMP-2210S-R
Barcode # 615678528918
Brand Crestron
Brand Crestron
Type Power Amplifier
Model AMP-2210S
Shipping Cubic 0.017794000m3
