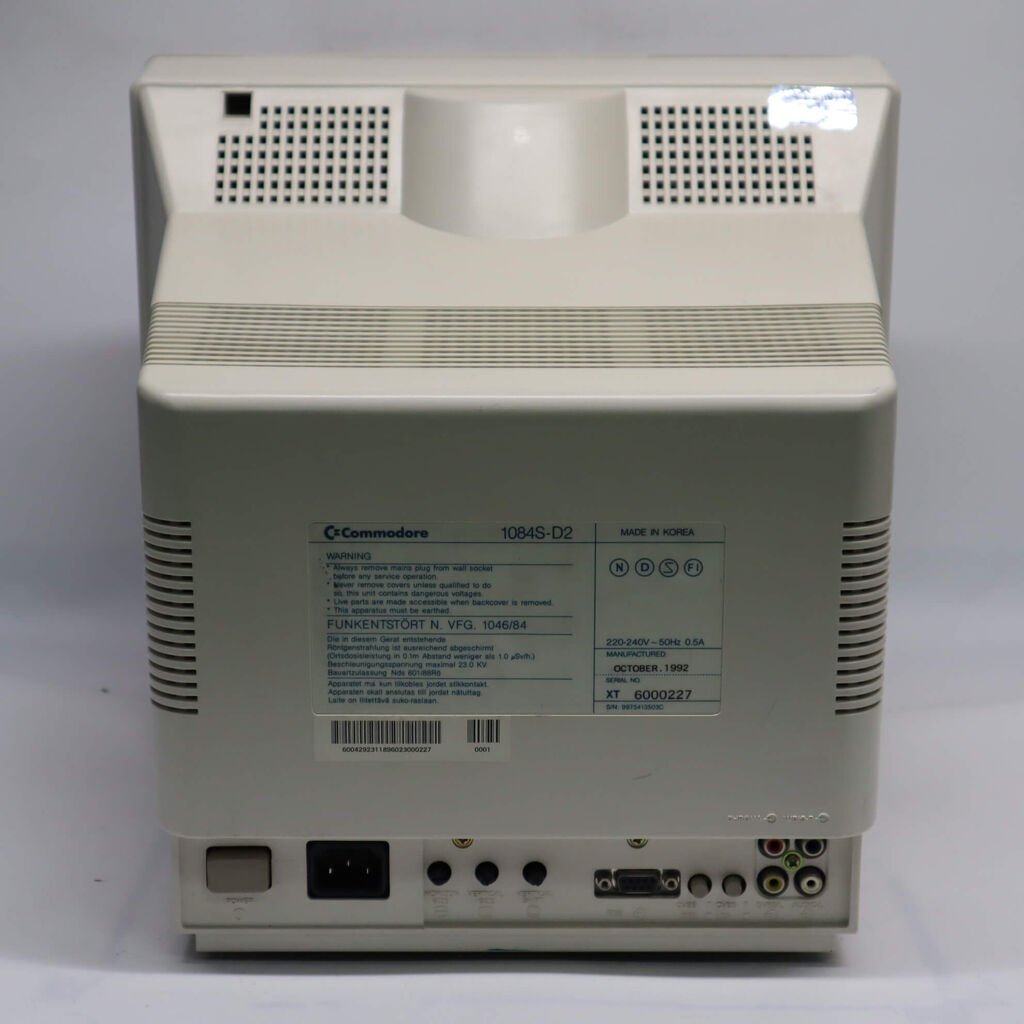

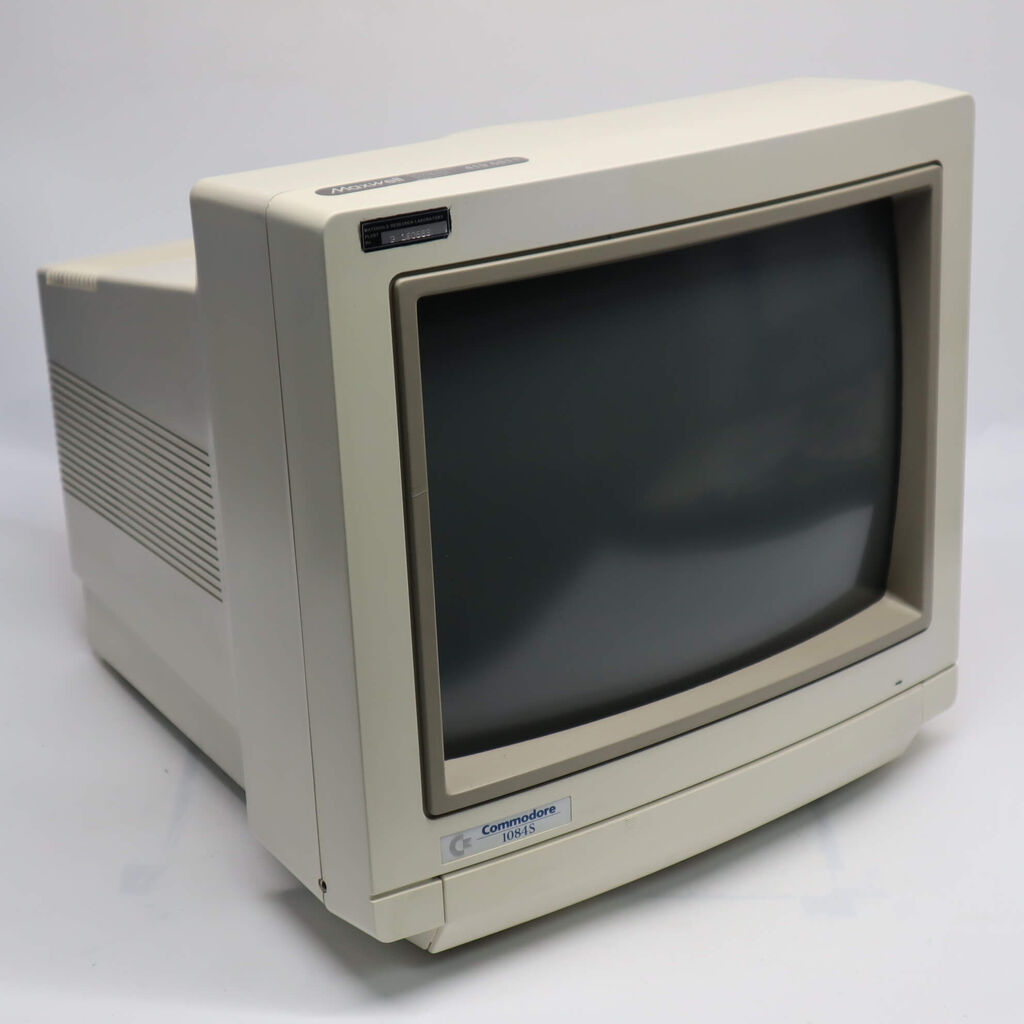

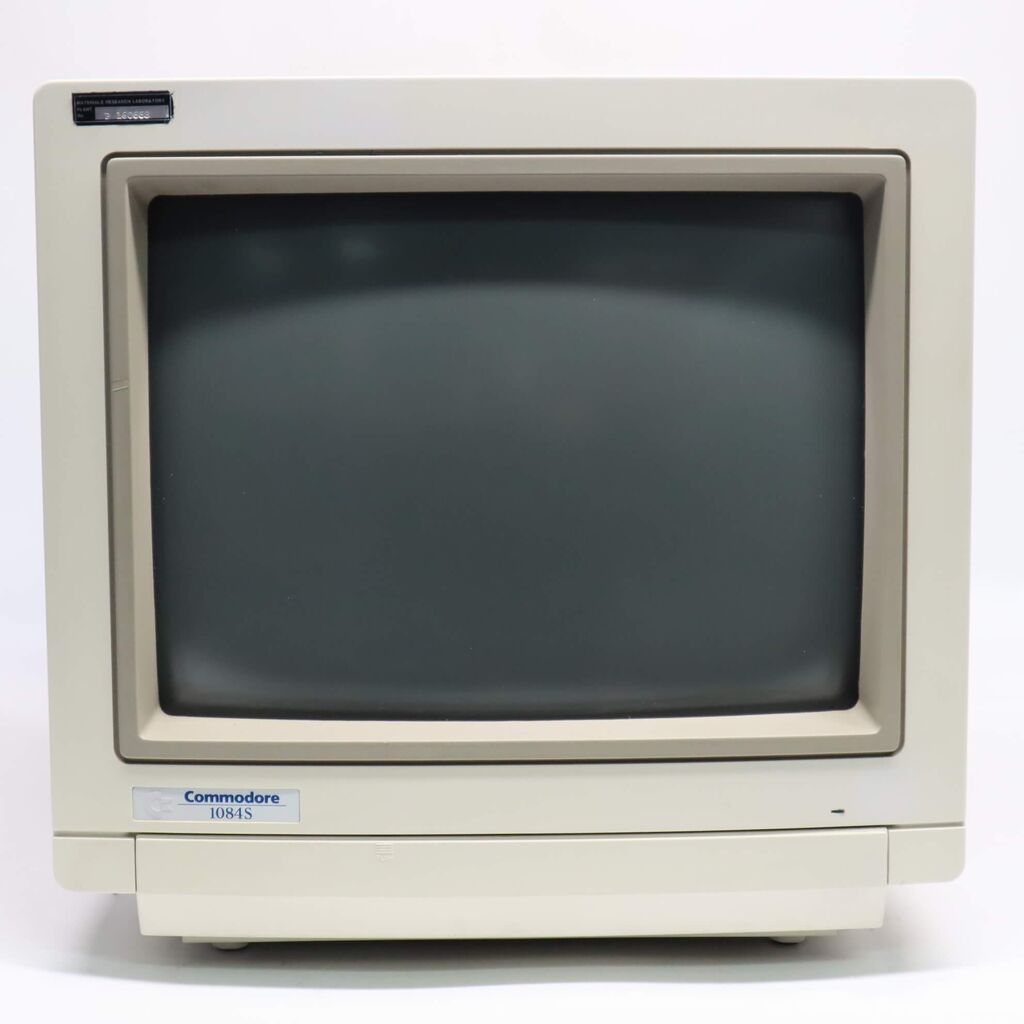

The Commodore 1084S is a full-colour, 13 inch monitor for use with the Commodore 64 and the Amiga family of computers. The monitor provides audio output in stereo for use with computer systems with stereo capabilities (like the Amiga computers).

(Commodore1084S-D2-R)

Picture Tube 14 inch (13 inch viewing area) slotted triplet Dimensions (HxW x D): pitch 0.42 mm
Deflection 90 degrees
Resolution 640 x 256, 640 x 512 (interlaced)
Raster frequency 50Hz
Line frequency 15625 Hz
Character field RGB-- (2000 characters 80 x 25 rows)
Composite Separated LCA-- (1000 characters 40 x 25 rows)
VIDEO (Composite Video) 0.7Vp-p, 75 ohm plus sync. 0.3Vp-p
VIDEO (Luminance Signal) 1.0Vp-p, 75 ohm
CHROMA (chroma Signal) 1.0Vp-p, 75 ohm
9-pin D RGB Analog 0.7Vp-p, 75 ohm with negative composite sync.
Sound output 1.0 W RMS/channel, 5% distortion
Audio input signal 177 mV, 10K ohm
Mans voltage 220-240V, 10%, 50 Hz
Power Consumption: 75W typical
Dimensions (HxW x D) 326x 352 x 376mm
Weight 11 kgs



SKU Commodore1084S-D2-R
Barcode # 615678940109
Brand Commodore
Brand Commodore
Type Monitor
Model Commodore 1084S-D2
Shipping Cubic 0.017794000m3
