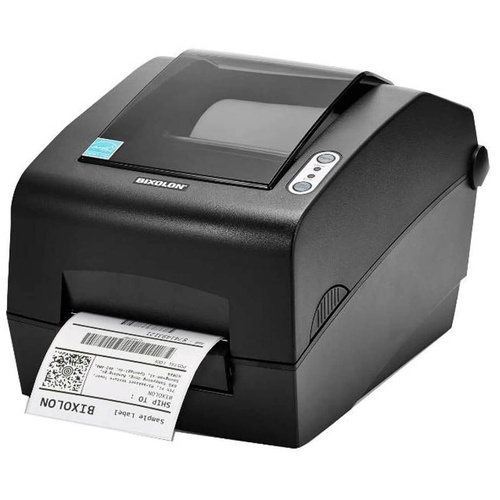

The SLP-DX420 offer a mid-tier 4-inch (110mm) Direct Thermal printing solution with various media handling and connectivity options. Peel dispense and cutter options add to the standard tear-off feature, and use in a range of infrastructures is possible due to its choice of wired and wireless interface configurations. The compact design of the printer ensures fast label throughput and large memory storage for your fonts, formats and graphics, and with inclusive elements such as the free-of-charge Label Artist™ design software, BIXOLON ensures creation of your formats is as swift as the printer installation itself.

(SLP-DX420-NoPSU-R)

Printing Method Direct Thermal
Printing Width SLP-DX420: 108 mm
SLP-DX423: 105.7 mm
Media width Min. 20 mm to Max. 110 mm
Media Thickness Min. 0.06 mm to Max. 0.20 mm
Sensors Transmissive, Reflective (adjustable), Head open
Roll Diameter Max 130 mm
Dot Pitch SLP-DX420: 203 dpi
SLP-DX423: 300 dpi
Printing Speed (Max.) SLP-DX420 Max. 178 mm/sec, 7 ips
SLP-DX423 Max. 127 mm/sec, 5 ips
Bar-code Type 1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font Character Sets:
10 SLCS Resident Bitmap Fonts
One SLCS Resident Scalable Font
16 BPL-Z Resident Bitmap Fonts
One BPL-Z Resident Bitmap Font
5 BPL-E Resident Bitmap Fonts
23 Code Page
Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation SLCS, BPL-Z, BPL-E
BASIC interpreter for data stream processing and ticketing emulations.
Controls Function
CPU TBA
Memory SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB

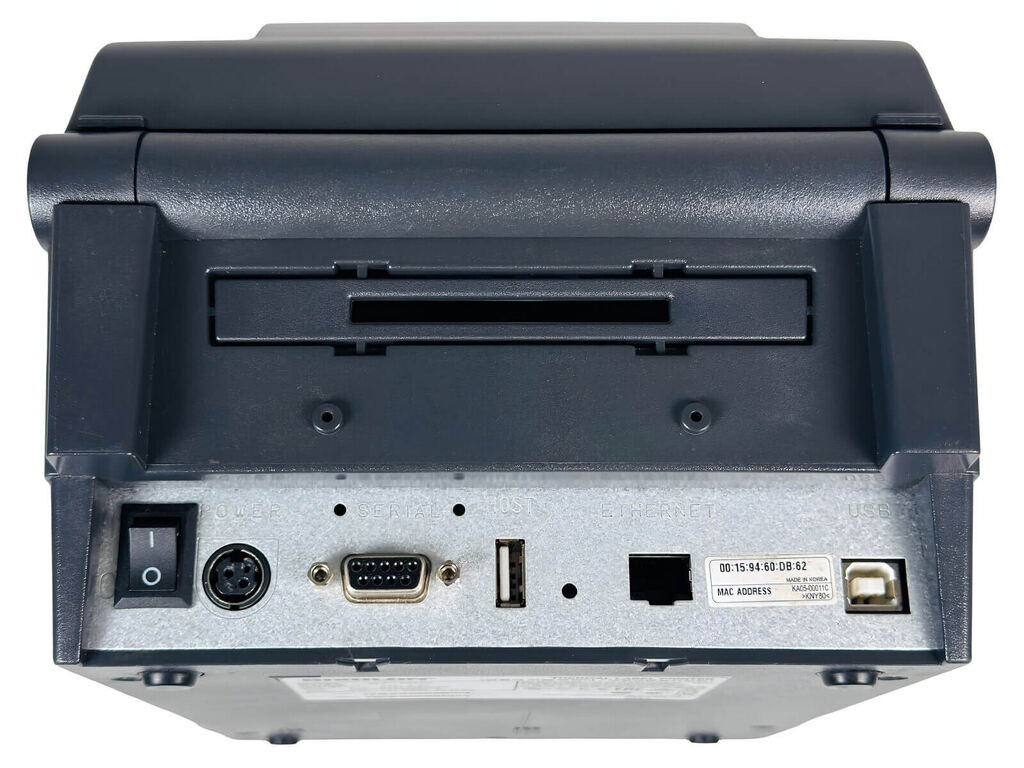

Interfaces USB (2.0 full speed), RS-232C and Parallel interface
or USB (2.0 full speed) and Ethernet (10/100)
Can also have WLAN with USB Dongle
Auto Cutter Optional
Driver available Windows Driver (EURO Plus/Seagull), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist
Android SDK
Operating Environment Temperature: 0 to 40 C
Humidity: 10 to 80% (no condensation)
Storage Environment Temperature: -20 to 60 C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH) 194 x 243 x 171 mm
Weight 2.20 Kg
Power Supply 100-240V 50/60Hz
SKU SLP-DX420-NoPSU-R
Barcode # 601527769748
Brand Bixolon
Brand Bixolon
Type Label Printer
Maximum Resolution 203 x 203 DPI
Connectivity USB, Serial, Ethernet
Technology Thermal
Output Type Black & White
Input Type Monochrome
Supported Paper Size Min. 20 mm to Max. 110 mm
Shipping Cubic 0.070000000m3
