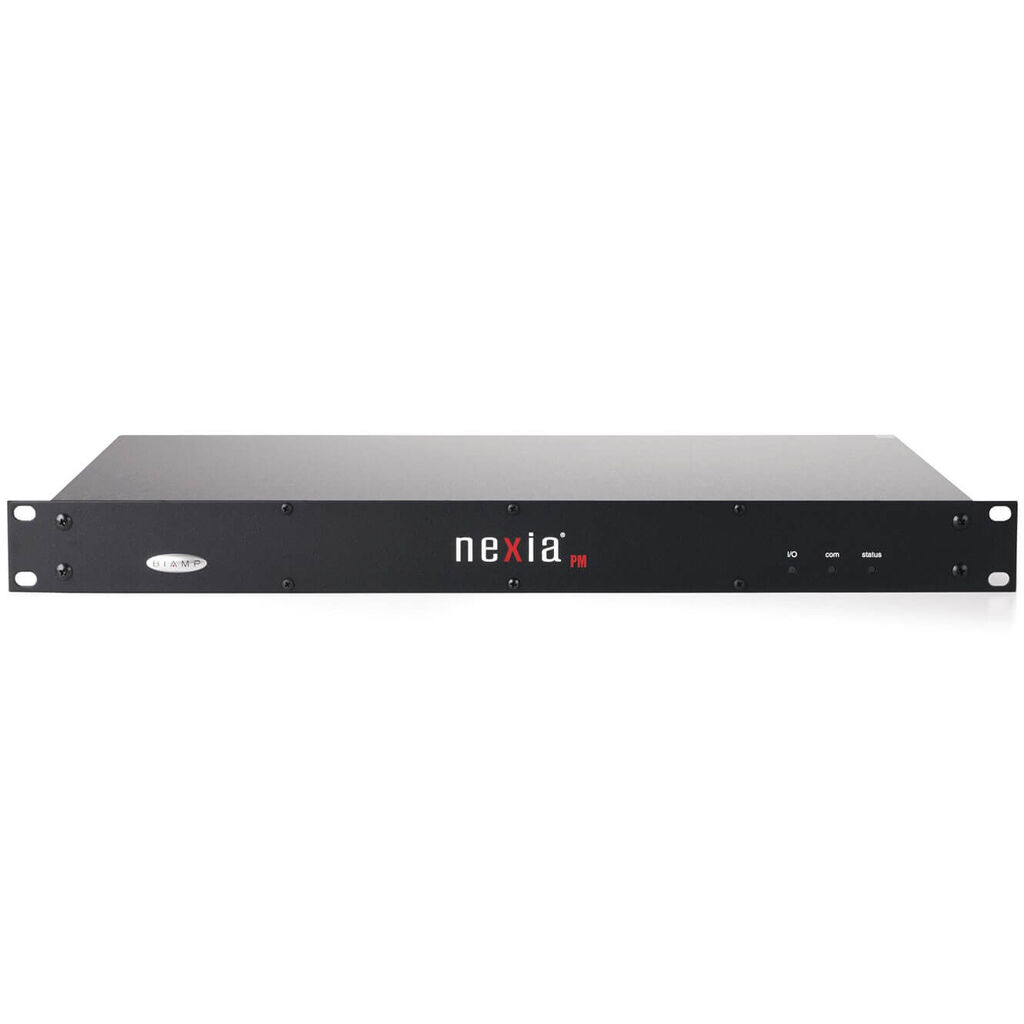

Nexia PM is a digital signal processor with 4 mic/line inputs, 6 stereo line inputs, and 6 line outputs. Intended for multi-media presentation applications requiring both microphone and program content, Nexia PM includes a broad selection of audio components, routing options, and signal processing. The internal system design is completely user definable via PC software, and can be controlled via daVinci™ software screens, RS-232 control systems, and/or a variety of optional remote control devices. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.

FEATURES

  • 4 mic/line inputs & 6 stereo program line inputs
  • 6 line outputs (configurable as stereo pairs)
  • Ethernet port for software configuration/control
  • Serial port for third-party RS-232 remote control
  • Remote control bus for dedicated control panels
  • NexLink ports for multi-unit system designs
  • Nexia software for Windows®
  • Pre-configured I/O with definable processing
  • Mix, route, combine, EQ, delay, control, etc.
  • CE marked, UL listed and RoHS compliant
  • Ability to select, view, and calibrate:
    • Mixers: standard, automatic, matrix, combiners
    • Equalizers: graphic parametric, feedback
    • Filters: HPF, LPF, high shelf, low shelf, all-pass
    • Crossovers: 2-Way, 3-Way and 4-Way
    • Dynamics: leveler, comp/limiter, ducker, ANC
    • Routers: 2x1 ~ 32x32
    • Delays: 0 ~ 2000ms
    • Controls: levels, presets, logic, RS-232, etc.
    • Meters: signal present, peak, RMS
    • Generators: tone, pink-noise, white-noise
    • Diagnostics: transfer function

(BiampNexiaPM-R)

Frequency Response (20 Hz~20k Hz @ +4 dBu) +0/-0.4dB
THD +N (20 Hz~20k Hz @ +4 dBu) Line level: < 0.006%
Mic level: < 0.05%
EIN (20Hz~20kHz, 66dB Gain, 150Ω) 125dBu
Dynamic Range (20 Hz~20k Hz, 0 dB) > 105 dB
Input Impedance Balanced Mic/Line Inputs: 8kΩ
Unbalanced Stereo Line Inputs: 10kΩ
Maximum Input Balanced Mic/Line Inputs: +24dBu
Unbalanced Stereo Line Inputs: +18dBu
Maximum Gain 66dB
Input Gain Range (variable) Balanced Mic/Line Inputs: 0 - 66dB
Unbalanced Stereo Line Inputs: 0 - 18dB
Output Impedance (balanced) 200Ω
Maximum Output +24dBu
Full Scale Output Level (Five Selections) 0dBu ~ +24dBu
Phantom Power +48 VDC; (7mA/input)
Power Consumption 65 W
Dimensions (H x W x D) 1.75" (45 mm) x 19" (483 mm) x 11.2" (283 mm)
Weight 8.6 lbs (3.9 kg)


SKU BiampNexiaPM-R
Barcode # 615678639119
Brand Biamp
Brand Biamp
Type Presentation Mixer
Model Nexia PM
Shipping Cubic 0.007440000m3
