Tested and Powers On

Sold AS IS

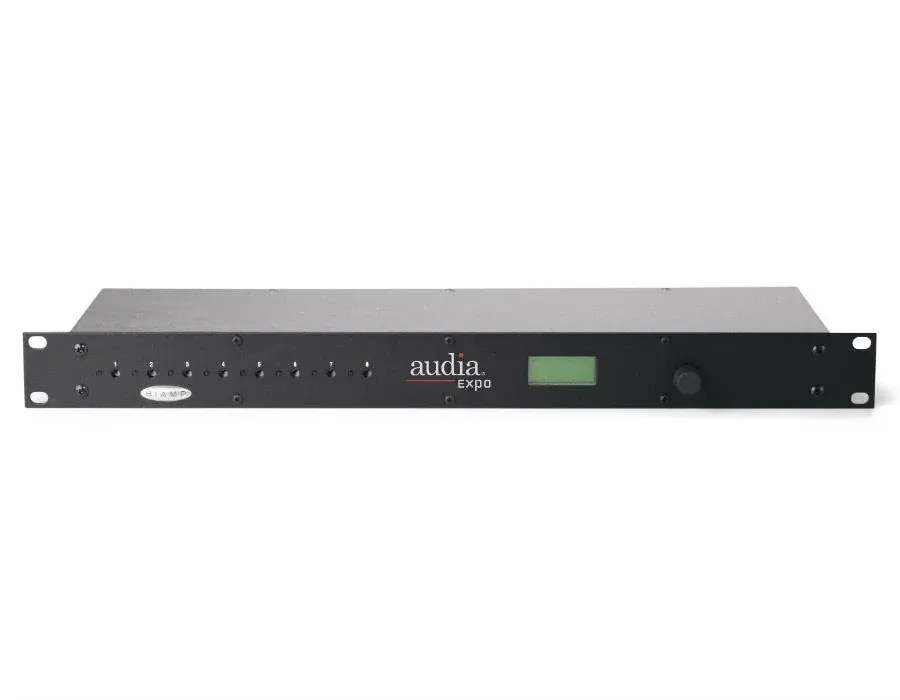

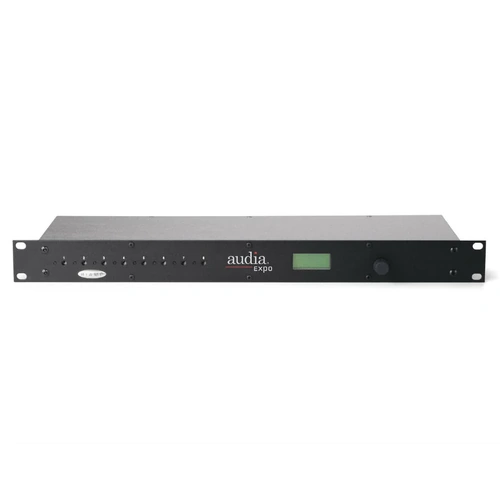

AudiaEXPO offers eight inputs or eight outputs, without the need to purchase and install additional Audia units.

AudiaEXPO is an output expander for Audia,® the benchmark in digital audio systems for demanding professional sound installations. AudiaEXPO accepts eight channels of digital audio input via CobraNet® and provides eight line-level analog audio outputs. AudiaEXPO can simply add outputs to a centralized system, or it can extend system boundaries by providing outputs in remote locations. AudiaEXPO is represented as a block in Audia software, for easy inclusion into any system design. AudiaEXPO may also be used to provide outputs from other CobraNet compliant systems or devices.

  • 8 channels of digital audio input via CobraNet
  • 24-bit D/A converters with 48kHz sample rate
  • 8 line level analog outputs on plug-in barrier strips
  • Front panel adjustable analog output level controls.

• included as block in Audia system design software
• may be used with any CobraNet compliant system
• RoHS compliance and AES grounding practices
• CE marked and UL listed power source

(BiampAudiaEXPO-R)

Frequency Response (20Hz~20kHz @ -20dBFS): +0/-0.4dB

THD+N (20Hz~20kHz @ -20dBFS): < 0.006%

Dynamic Range: 110dB

Crosstalk (channel-to-channel @ 1kHz): < -90dB

Output Impedance (balanced): 200 ohms

Maximum Output (balanced): +24dBu

Output Gain Range (variable trim): -70dB ~ 0dB

D/A Converters: 24-bit (48kHz sampling)

Power Consumption (115/230VAC 50/60Hz): < 25 watts

Dimensions:

height 1.75 inches (44.5mm)

width 19 inches (483mm)

depth 5.75 inches (146mm)

Weight: 4.3 lbs. (2kg)

Compliance: AES48-2005 Grounding & EMC practices EU Directive 2002/95/EC, RoHS directive CE marked UL listed power source

SKU BiampAudiaEXPO-R
Barcode # 601527518995
Brand Biamp
Brand Biamp
Type Output Expander
Model AudiaEXPO
Shipping Cubic 0.007440000m3
