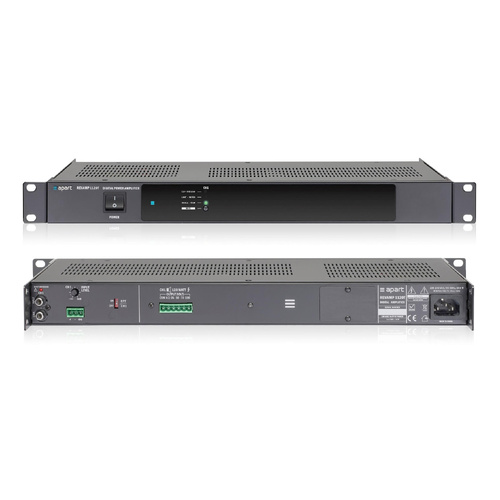

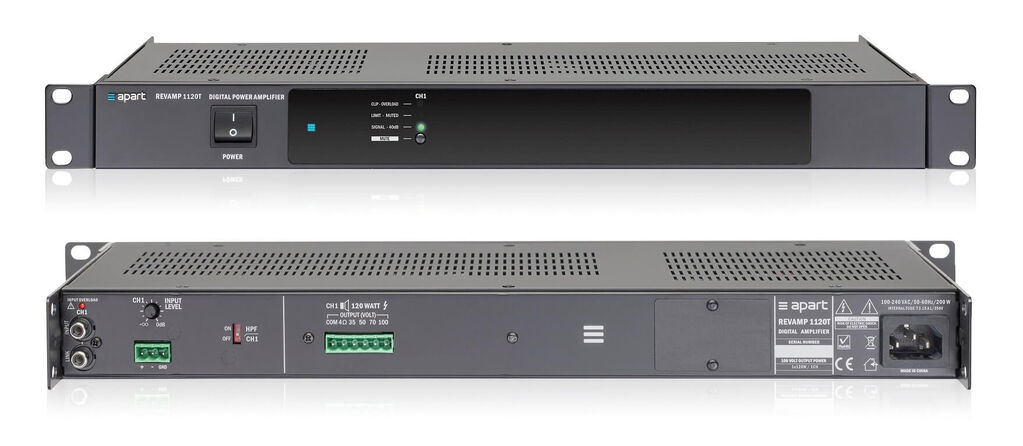

Our newest single channel professional power amplifier the REVAMP1120T is a unique and versatile design with 1 x 120 watts output power @ 100 volts (or @ 4 ohms). The REVAMP1120T is a class-D amplifier with a builtin galvanic separated toroidal output transformer free of external influences and disturbances. Convection-cooled and excluded from cooling fans this amplifier is reliable, maintenance-free, silent and dust-free.

The rear clip LED indication on the input gain together with the ease of installation via multiple input and link connection options make the REVAMP1120T the preferred installer’s choice. Completely built in a 1U chassis without front control the REVAMP1120T is bound to become a reference in the small and mid-sized fixed install audio market.

(REVAMP1120T-R)

Dynamic Output Power 4 ohms in Watts 120
Dynamic Output Power 8 ohms in Watts 60
Output Power RMS 100 volts in Watts 120
Power Consumption (max) in Watts 200
Height- Rack units (1U=44 mm) in U 1
Depth (build in) in mm 230
Power Supply 115 - 230 VAC
Output Voltage Tappings 100 - 70 - 50 - 35 volts - 4 ohms
Line Input Balanced 1
Channel Separation > 65 dB @ 1 kHz
Frequency Response (in Hz) 50 - 20 k
Applicable in 100V Yes
Net Weight product (kg) 4.6
RMS Output Power 4 ohms in Watts 120
RMS Output Power 8 ohms in Watts 60
Minimum Impedance Load per channel in ohms 4
19" (483 mm wide) Rack Mounting yes
Height in mm 44
Depth (incl front) in mm 239
Power Supply Technology Switching Mode Power Supply
Output Channels 1
Line Input Unbalanced 1
Power amp Topology Class-D
Cooling System Convectional
Applicable Low Impedance Yes



SKU REVAMP1120T-R
Barcode # 615678530973
Brand Biamp
Brand Biamp
Type Power Amplifier
Model REVAMP 1120T
Shipping Cubic 0.017794000m3
