B Grade item, sold AS IS. Tested to power on ONLY. Units have scuffs and scratches, may have loud fan noise.

Includes AMDV amplifier, power cable.

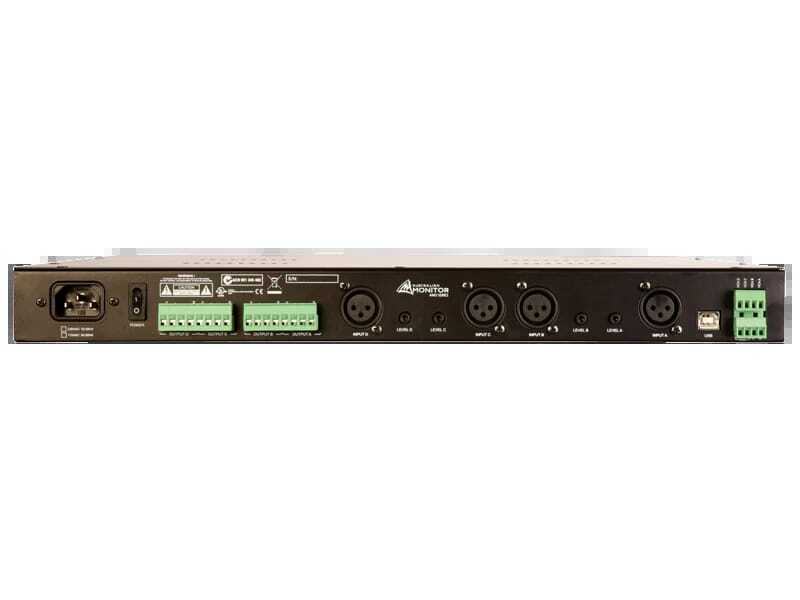

The Australian Monitor AMD4100P is a 1RU four channel power amplifier of class-D design. The Australian Monitor AMD4100P delivers 100 watts per channel into 100 volt, 70 volt or 4 ohms. The AMD4100P features front panel signal presence and fault indication per channel, rear panel volume controls, remote master VCA per channel, low power contact closure and RS232 port for control via a third party control system. An Ethernet port provides PC connectivity for use with the supplied software application, remote control and status monitoring. Input cross mix level, channel input mix mute, channel output level and mute, standby state and amplifier fault indication can all be controlled via the RS232 or Ethernet port. The provided inbuilt DSP processor provides a Crossover/ EQ section, along with a Delay and Dynamics / Compression processor for each of the channels

• 1 RU, class-D design

• 4 x 100 watts @ 100 volt, 70 volt, and 4 ohms

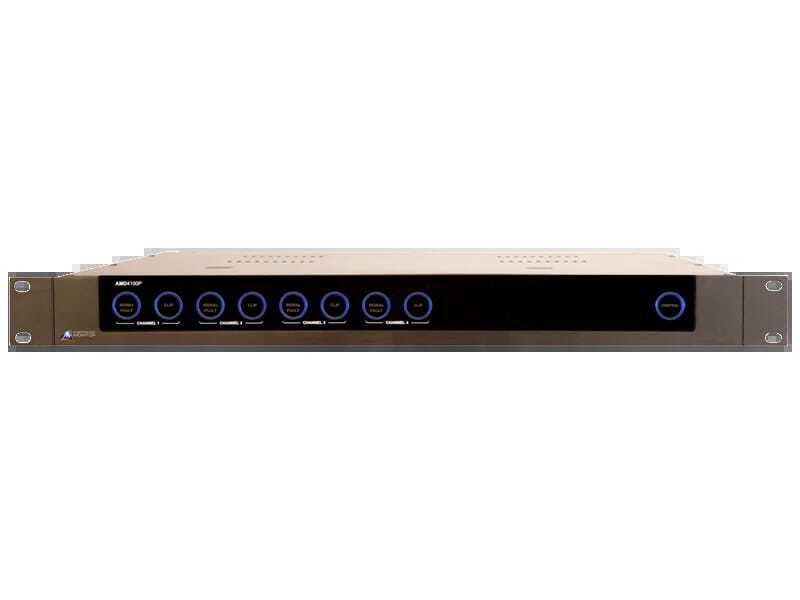

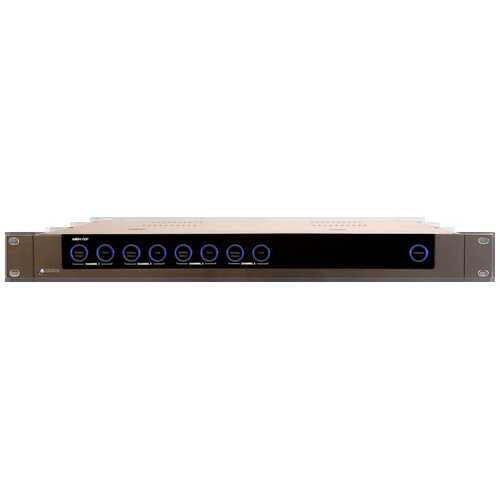

• Signal present and fault indication per channel on front panel

• VCA master control per channel

• Low power standby mode contact closure

• RS232 controllable

• Ethernet control port

• Built in DSP processor

• 24 volt operable

(AM-AMD4100P-BGrade)

AMD4100P Specification               Conditions
Frequency Response 70Hz-20kHz, -3dB Signal Input 2dB Below Clip
Total Harmonic Distortion <0.6dB Signal Input 2dB Below Clip
Input Impedance 11kOhms
Normal Input +1 dBu
Crosstalk Between Channels >60dB 1kHz, Maximum Output
S/N Ratio >100dB A-Weighted 20Hz to 20 kHz

Power Output
4 ohms
70 V
100 V

100W
100W
100W

(20Vrnms)
(49ohms)
(100ohms)
Power Consumption
Standby
Idle
1/8 Power
1/3 Power

12W
20W
92W
204W



Thermal Dissipation
Standby
Idle
1/8 Power
1/3 Power

12W (40.94Btu/Hr)
20W (68.24 Btu/Hr)
67W (228.60 Btu/Hr)
137W (468.58 Btu/Hr)

Power Input 24VDC Battery Backup
AC:110-120V 60Hz/220-240V 50Hz

Factory Configured
Recommended Operating Temp 10° C to 45° C (50° F to 113° F)
Recommended Operating Humidity 5 % to 95 % non condensing
Dimensions (WxDxH) 433x442x45.6mm
(22"x 22"x 6.7")
Not Including Rack ears or Rear Panel Connectors

Weight Net
Shipping
13kg (28.6lb)
16kg (35.2lb)



SKU AM-AMD4100P-BGrade
Barcode # 659699852195
Brand Australian Monitor
Brand Australian Monitor
Type Power Amplifier
Model AMD4100P
Shipping Cubic 0.017794000m3
