B-Grade Item, Sold AS IS

Unit Powers On, Missing Screws

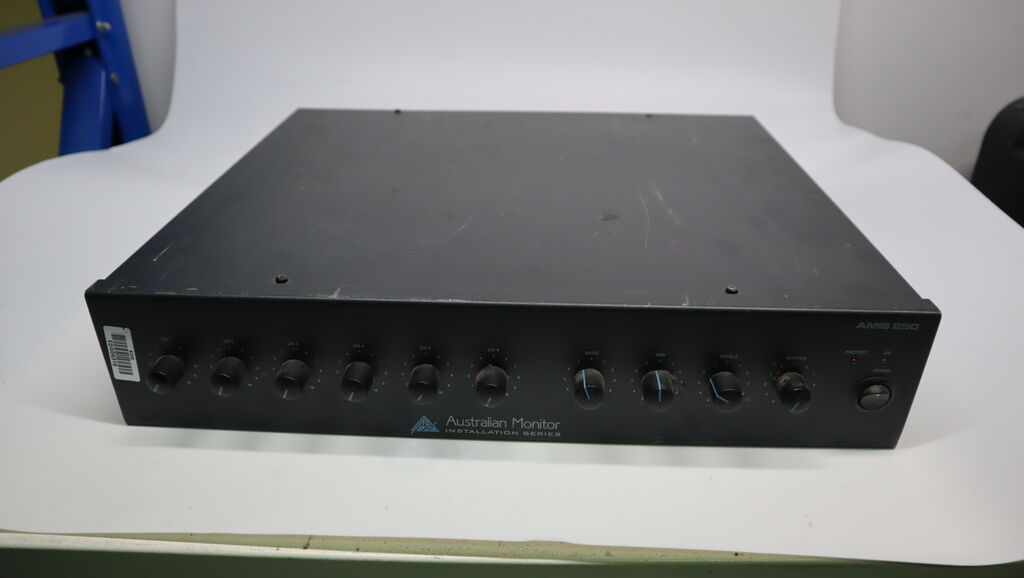

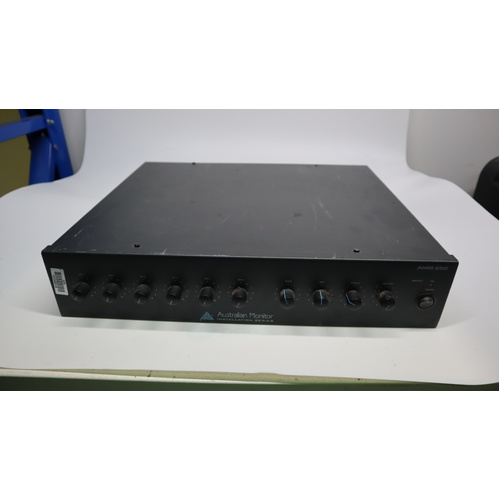

The Australian Monitor AMIS250 is a six channel, 250 watt mixer amplifier suitable for rack or desk mounting. The amplifier is a self contained compact unit of solid steel construction. The AMIS250 has six universal input channels with separate level controls. Each channel will accept balanced or unbalanced microphone, line and auxiliary inputs. The unit has industry standard XLR microphone sockets and dual RCA auxiliary sockets for each channel. An insert point is featured on the rear panel for those applications where an additional EQ or feedback exterminator may be required.

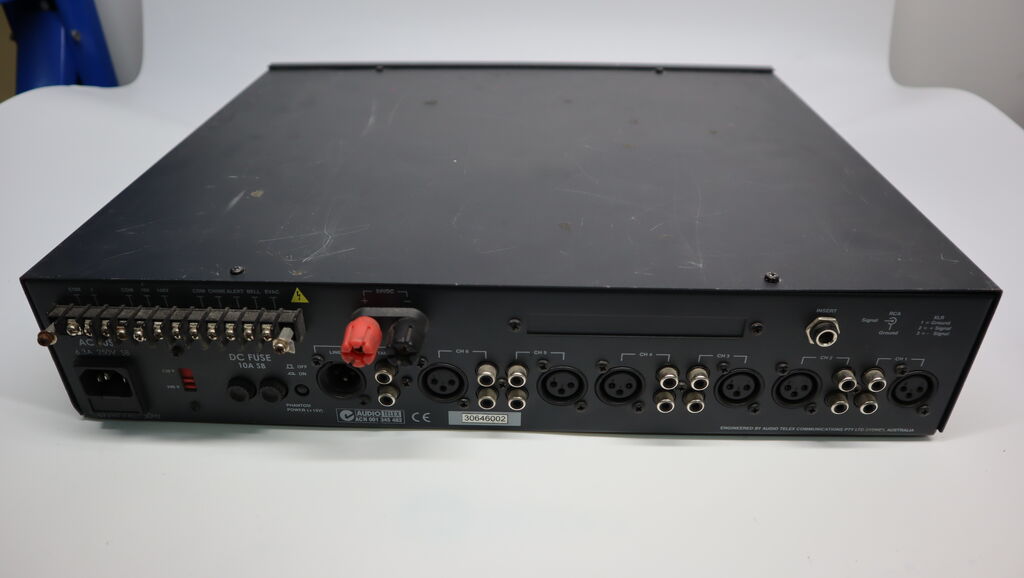

The AMIS250 features 100 volt, 70 volt and four ohm isolated transformer outputs, plus a tape recorder output by means of dual RCA sockets. A balanced 700mV XLR output is also provided to feed up to six power amplifiers.

The AMIS250 includes a two band equaliser (Bass and High), giving the user a wider range of tone controls for high level music or difficult voice applications.

The AMIS250 comes standard with an in-built four tone generator module. Tones include Bell, Pre-announce Chime, Alert Tone and Evacuate Tone. Any of these tones may be activated from a simple contact closure on the rear panel of the amplifier. VOX muting is standard on the AMIS250. A mic or line signal on channels one or two will mute channels three, four, five and six. The muting function can be disabled via an internal link. Phantom Power (18V DC) is available from all mic inputs. A rear panel phantom power on/off switch is also provided. Internal current limiting protects the amplifi er from both overload and overdrive conditions.

Australian Monitor amplifiers feature a protection network that provides greater stability and performance. Our amplifiers are recognised worldwide for their reliability and this is due to the extensive levels of current limiting which protect the amplifiers from both overload and overdrive conditions.

Features

• 6 Balanced mic/dual RCS line inputs
• 250 watts
• Vox muting on channels 1 and 2 (defendable)
• 18V DC phantom power
• Mains 24V DC operation
