Includes ATTO FF-NS12 PCIe ONLY

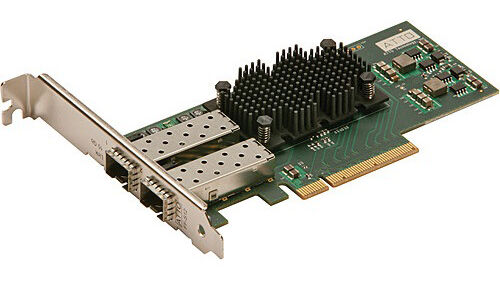

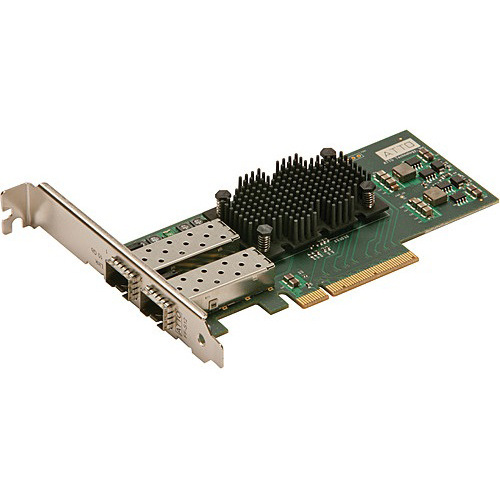

FastFrame NS12 dual-port SFP+ Ethernet Adapter conserves PCI slots for more flexible system design, while drawing up to 60% less power than competing solutions. A lower power rating means lower energy costs, lower data center maintenance fees, and fewer worries about heat dissipation. This high performance adapter includes high-quality pluggable optical SFP+ tranceivers - a hidden cost with some competitor cards - and support for direct attach copper cables.

FastFrame NS12 dual-port SFP+ Ethernet Adapters provide opportunities for link aggregation for additional available bandwidth, or for link failover.

In addition to broad support for Windows and Linux server and desktop operating systems, ATTO is a leader in high performance I/O connectivity for macOS environments. ATTO also offers Xtend SAN, an iSCSI initiator for macOS, for a complete solution. Acquire your NICs for multiple-OS environments from a single source — one familiar with the data-intensive demands of content editing.

ATTO FastFrame 10Gb Ethernet NICs Adapters

ATTO FastFrame 10Gb Ethernet network interface cards (NICs) provide maximum throughput and high-bandwidth network connectivity for demanding IT and media & entertainment applications.

Technical Features

  • Quad, dual, and single port configurations
  • Up to 10Gb/s throughput per port
  • High-performance x8 PCIe 2.0 bus
  • Low profile (single and dual channel) or full height form factor
  • Supports Data Center Bridging and software iSCI initiators
  • Driver support for Windows, Linux and macOS operating systems
  • TCP, UDP, IPv4 checksum offloading, IPsec offloading and Tx/TCP segmentation offloading
  • Load-balancing on multiple CPUs
  • Minimized interrupts for low latency
  • Industry's lowest power consumption
  • Three year standard product warranty

Industry Proven Technology

FastFrame 10GbE NICs are built on an industry standard Ethernet technology from Intel. The FastFrame NS14, NS12 and NS11 simplify networking administration, integrate seamlessly into existing environments and reduce the total cost of ownership by improving connection bandwidth and eliminating redundant network infrastructure components.

Flexible Connectivity Solutions

FastFrame NICs provide the most flexible and scalable connectivity for today's data center environments. By leveraging data center bridging and support for software iSCI initiators, FastFrame network adapters offer the ability to support, both local and storage area networks. With broad operating system support NS14, NS12, and NS11 NICs offer optimized connectivity for high-bandwidth environments.

Performance Engineered

FastFrame cards, with support for link aggregation and failover, offer redundancy and high availability for critical network applications. FastFrame NICs provide industry-leading throughput and latency management with minimal CPU utilization and power consumption. With 10Gb data transfer rates and multiple offloads (IPsec, TCP, IPv4, UDP), FastFrame adapters are the premier connectivity choice for bandwidth-intensive applications such as data backup and restoration, clustered computing, IP content delivery, medical imaging and video rendering. With multi-core processors driving the need for higher bandwidth, FastFrame 10GbE network adapters deliver superior throughput to meet that need.

Advanced Network Management

FastFrame 10GbE NICs provide a common foundation for both Ethernet and storage networks. FastFrame Ethernet adapters leverage unified network investments and eliminate the need for multiple adapters and switches, while reducing power and cooling expenses. By providing multiprotocol support and leveraging 10Gb converged enhanced Ethernet links, FastFrame NICs dramatically reduce the cost and complexity of a data center's cabling infrastructure.

Applications

FastFrame 10GbE NICs combine the unparalleled performance of 10 Gb Ethernet, the lossless benefits of enhanced Ethernet, and robustness of software iSCSI initiators to meet the performance and economic needs of today's growing data centers. The FastFrame NS14, NS12 and NS11 are ideal for applications that require low latency, high-bandwidth data transfers such as data back-up and restoration, video-on-demand and video streaming, medical imaging, and clustered databases.

(AttoFF-NS12-R)

General Information
Category Network interface cards
Description ATTO FastFrame NS12 - Network adapter - PCIe 2.0 x8 low profile - 10Gb Ethernet x 2
Manufacturer ATTO
UNSPSC 43201404
Main Specifications
Header / Brand ATTO
Miscellaneous / Product Color
  • Black
  • Green
  • Silver
Networking / Connectivity Technology Wired
Networking / Data Link Protocol 10 Gigabit Ethernet
Networking / Data Transfer Rate 10 Gbps
Networking / Type Network adapter
Packaged Quantity 1
System Requirements / OS Required
  • Apple MacOS
  • Microsoft Windows
  • Microsoft Windows Server
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise
Expansion / Connectivity
Interfaces 2 x 10GBase-T - RJ-45
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x8
PCI Specification Revision PCIe 2.0
Miscellaneous
Compliant Standards RoHS
Included Accessories Low-profile bracket
Networking
Cabling Type Ethernet 10GBase-T
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Features DCB, flow control, IPv4 support, Jumbo Frames support, Link Aggregation, IPSec support, IPv6 support, VLAN support, SR-IOV, Advanced Packet Filtering, VMDq, VMLB
Network / Transport Protocol iSCSI, IPv4, IPv6
Ports 10Gb Ethernet x 2
Remote Management Protocol RMON, SNMP
Software / System Requirements
OS Required Microsoft Windows, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise, Apple MacOS
SKU AttoFF-NS12-R
Barcode # 601527693760
Brand ATTO
Type PCI Network Card
Model FF-NS12
Shipping Cubic 0.017794000m3
