Includes CS17916 KVM switch, compatible 5V power adapter, power cable. Does NOT include KVM cables.

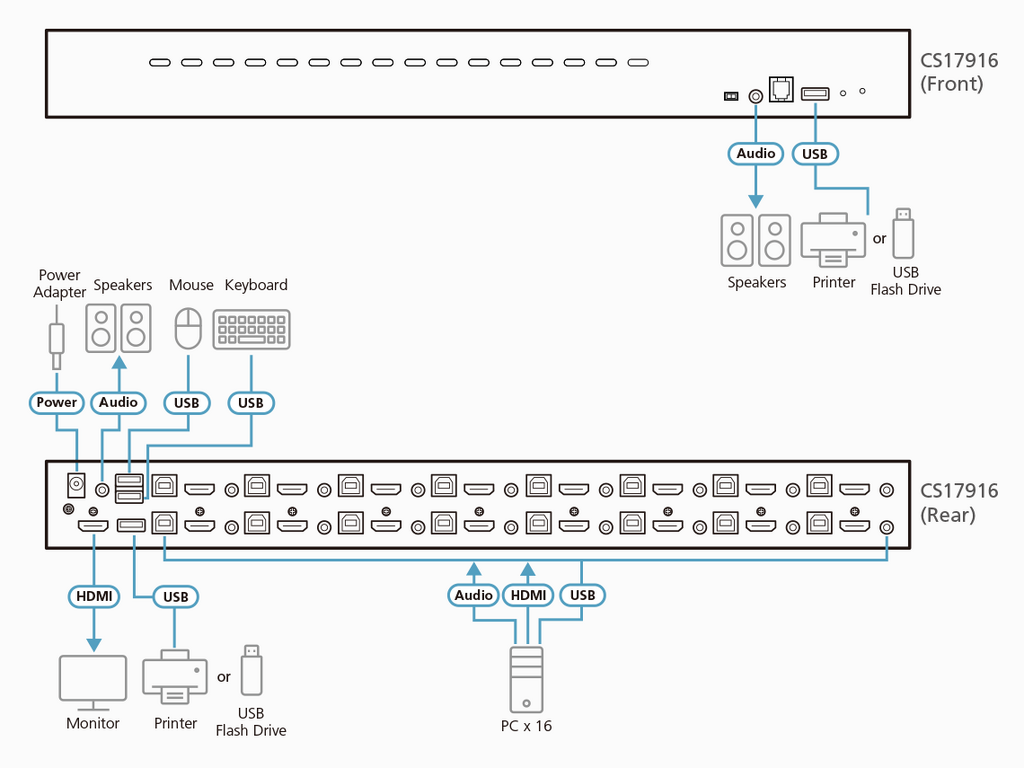

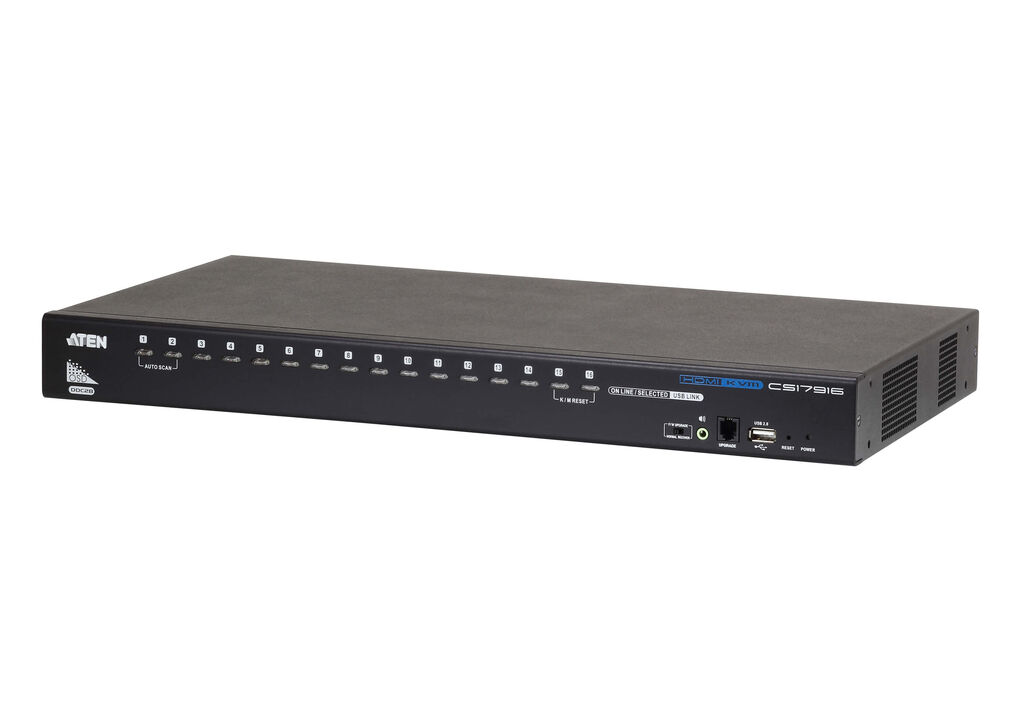

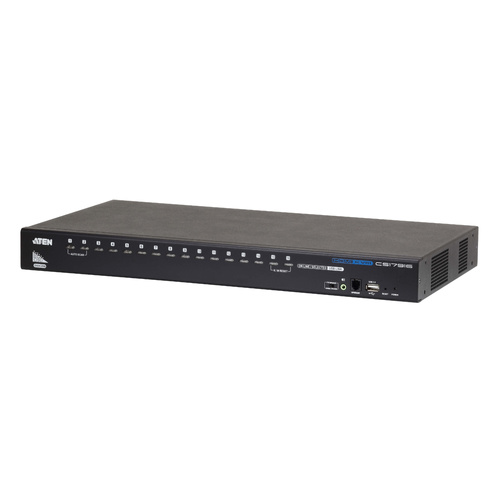

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.

In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.

The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

  • Cascadable to two levels–control up to 256 computers
  • Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
  • Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.

(CS17916-R)

Computer Connections
Direct 16
Maximum 256 (via Cascade)

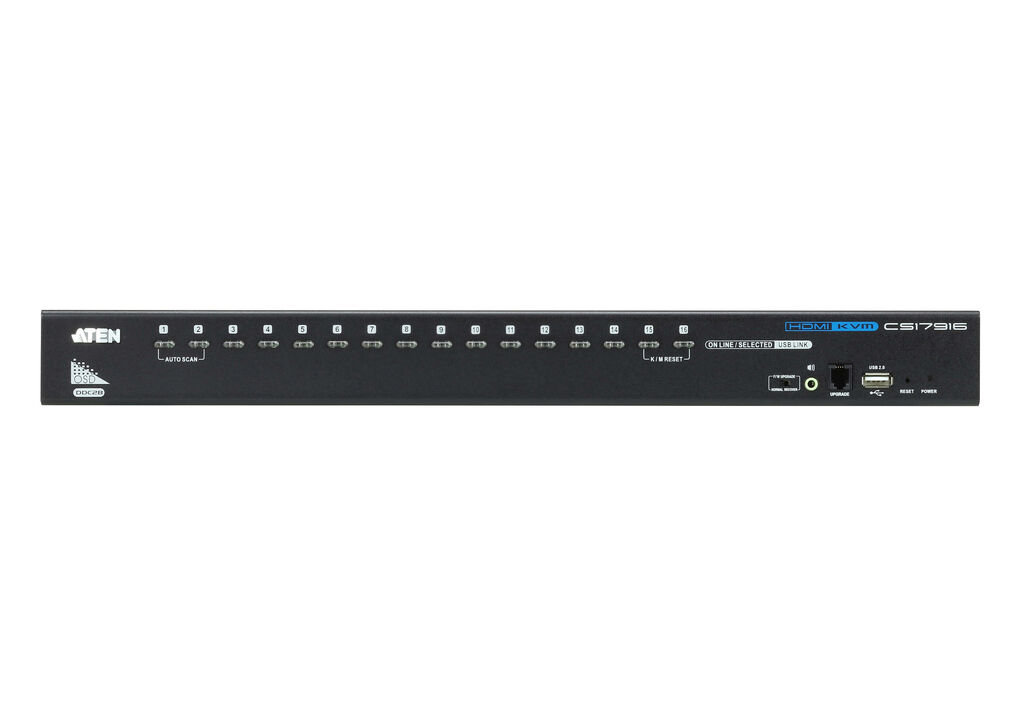

Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x HDMI Female
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)

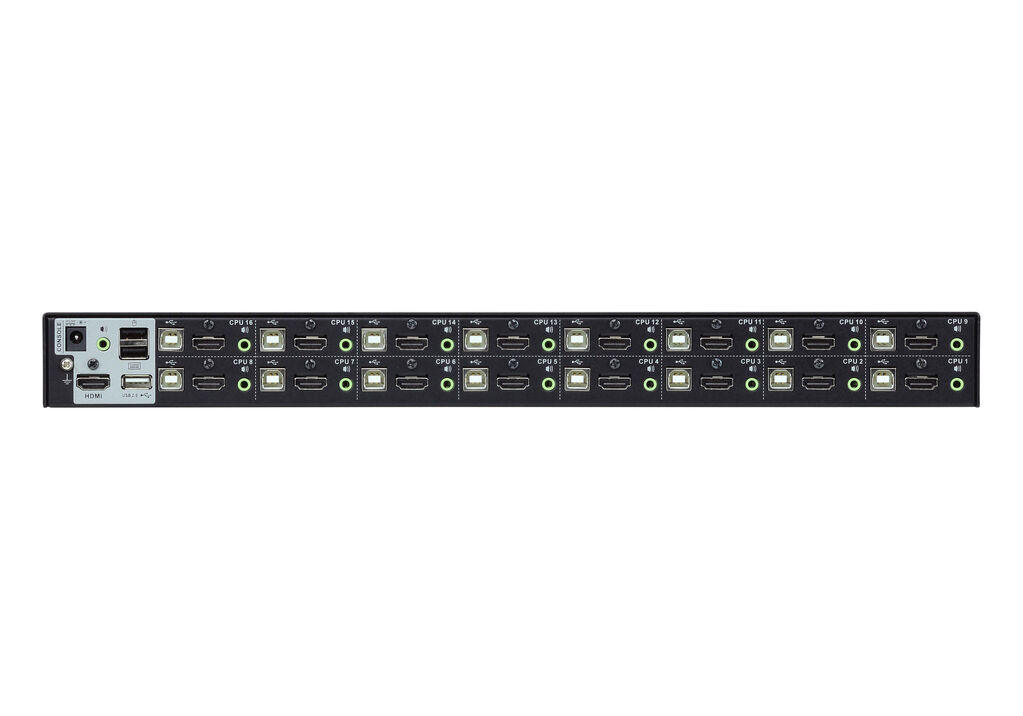

KVM Ports 16 x HDMI Female
16 x USB Type B Female
16 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade 1 x RJ11 Female
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Switches
Port Selection 16 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
LEDs
USB Link 16 (Green)
Power 1 (Dark Green)
On Line /Selected 16 (Orange)
Emulation
Keyboard / Mouse USB
Video 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz
Scan Interval 1 – 255 seconds (default: 5 sec.)
Power Consumption DC5V:9.18W:69BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.86 kg ( 8.5 lb )
Dimensions (L x W x H) 43.24 x 25.72 x 4.40 cm
(17.02 x 10.13 x 1.73 in.)
SKU CS17916-R
Barcode # 601527729063
Brand ATEN
Brand ATEN
Type KVM Switch
Model CS17916
Shipping Cubic 0.017794000m3
