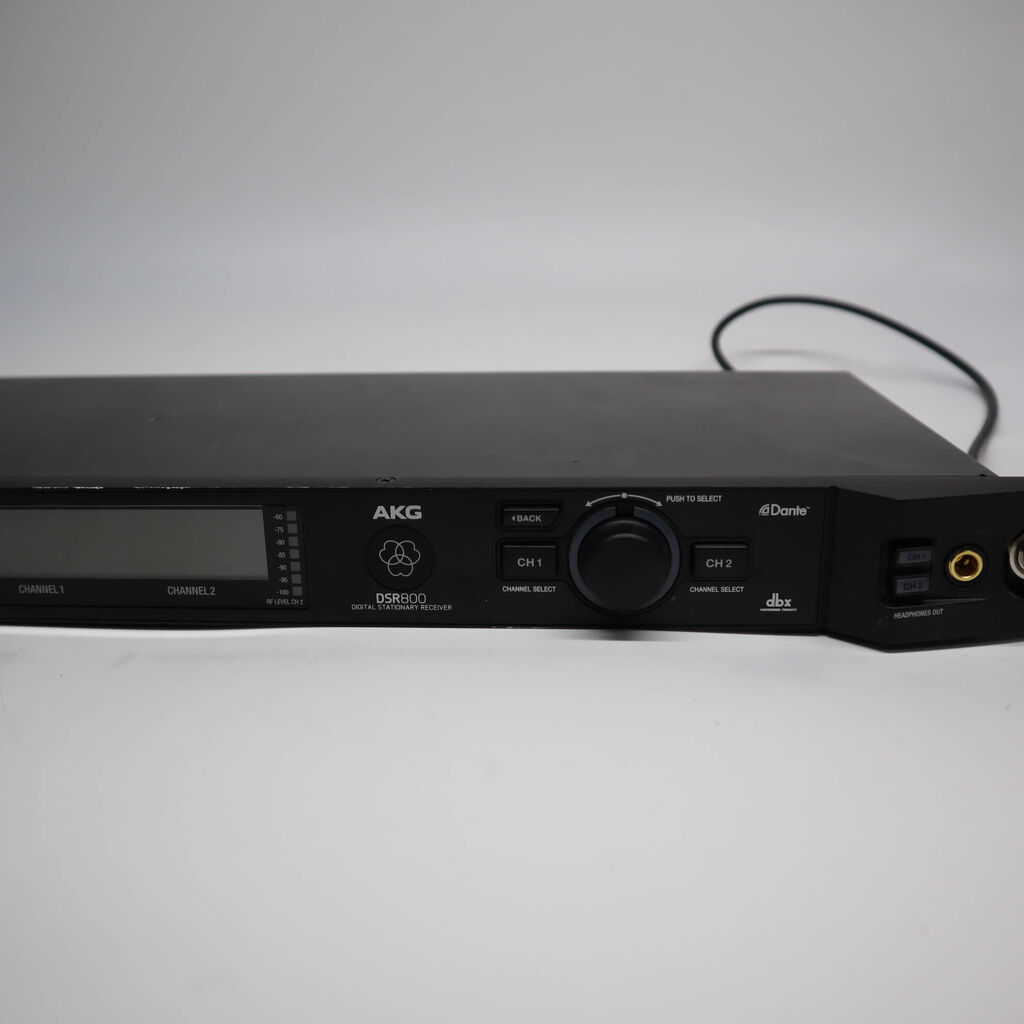

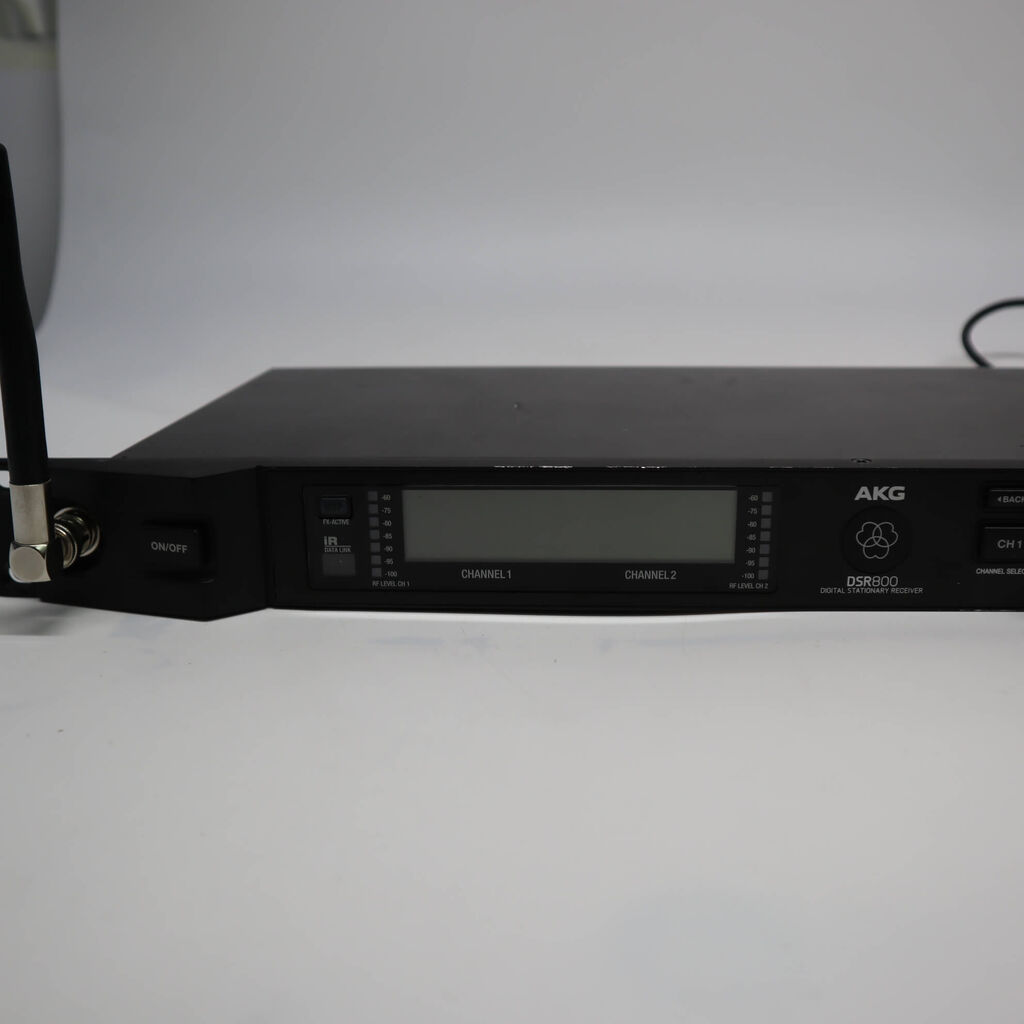

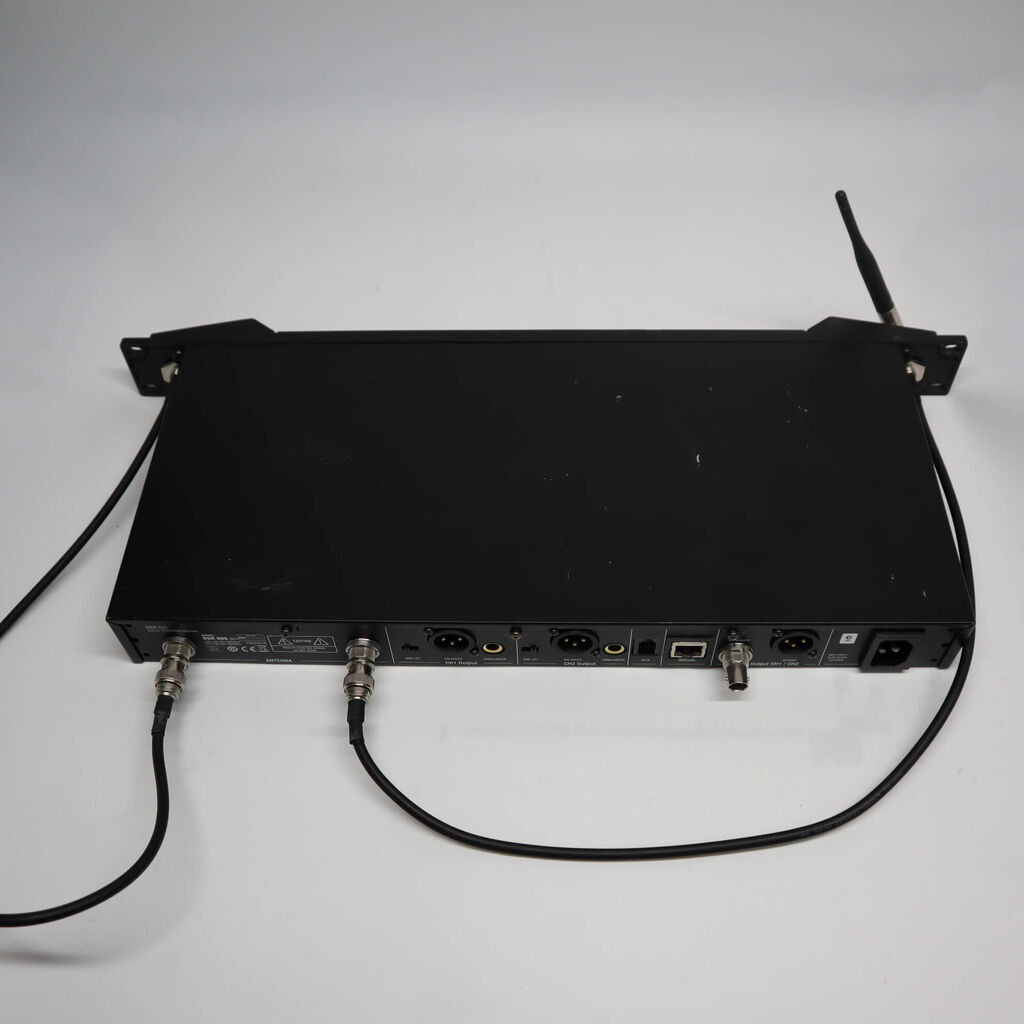

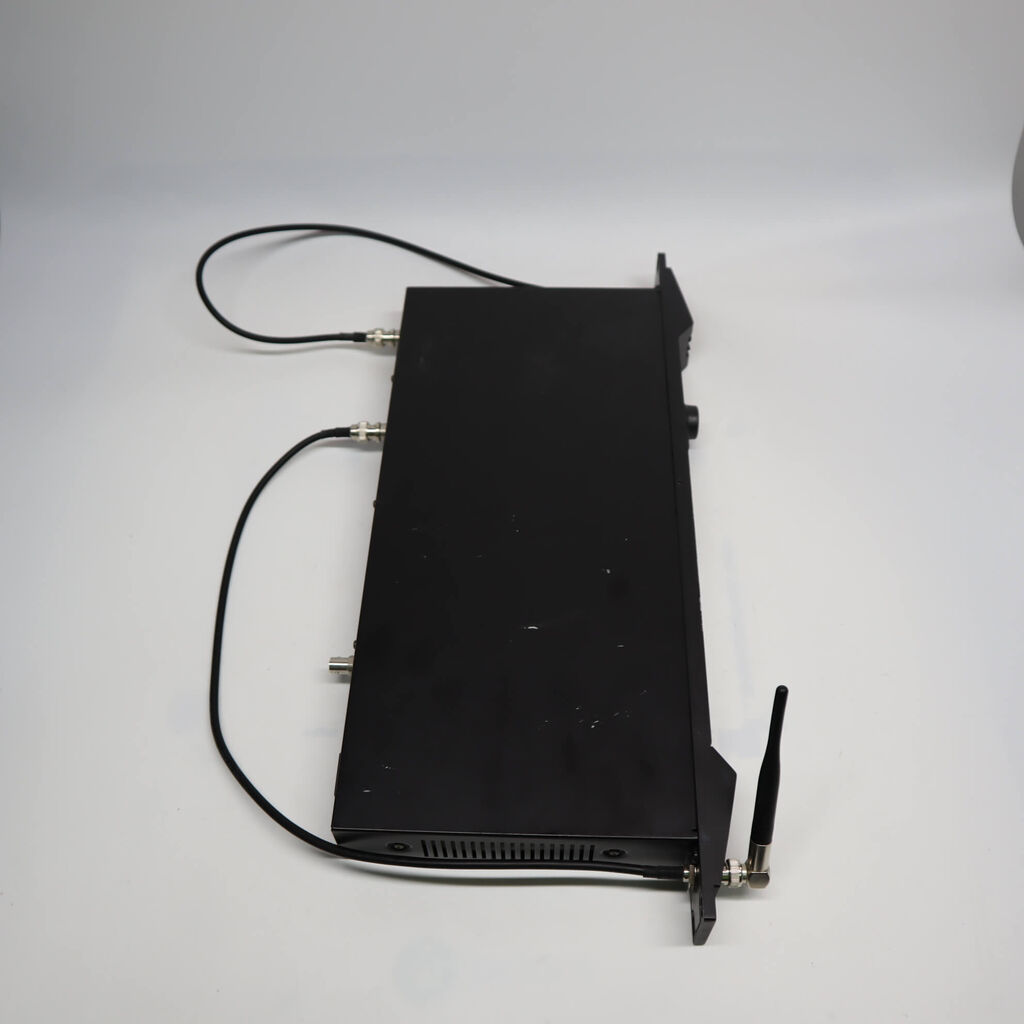

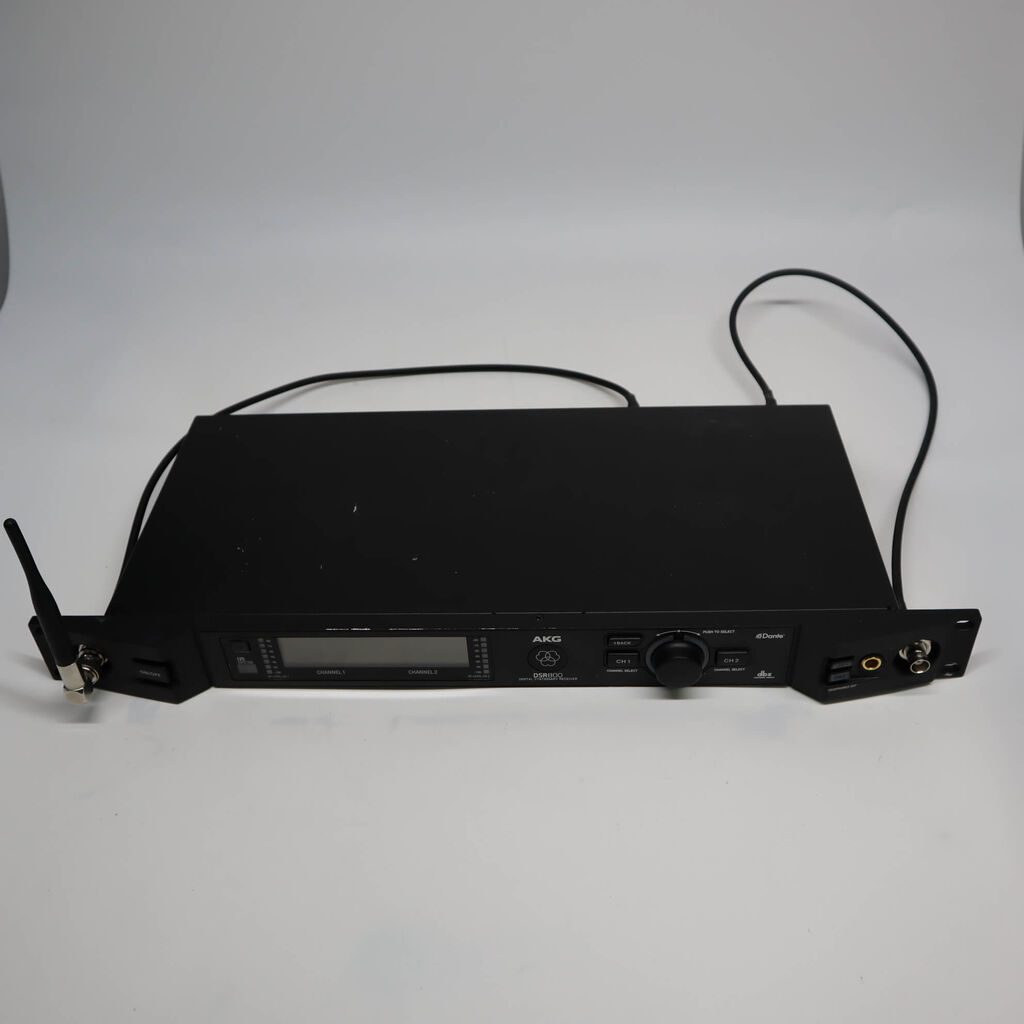

The DSR800 reference two-channel digital wireless receiver provides an ultra-wide bandwidth of up to 150MHz for reliable operation with the flexibility to meet the needs of a wide range of applications. It is designed to work with the versatile DHT800 handheld transmitter, which offers interchangeable microphone capsules, and the DPT800 body-pack transmitter, for line- and microphone signals.

For enhanced flexibility, the DSR800 provides two digital audio outputs – for DANTE and AES EBU. The receiver finds interference-free channels and synchronizes the corresponding setup data to the transmitter via infrared signal. The environment scan converts the DSR800 into a spectrum analyzer, scanning the receiver’s frequency band for active radio frequencies and displaying the spectrum.



(AKGDSR800)

  • Power Supply: 100 - 240 V AC, 50 - 60 Hz, 0.4 A
  • Racksize: Full Racksize (19)
  • Rack height: 1 RU
  • Carrier frequency range: (country-dependent)Band 1 = 548.1 – 697.9 MHz
  • Switching bandwidth: ≤ 150 MHz (country-dependent)
  • Channels: 2 (dual receiver)
  • Sensitivity:10 dBµV / -97 dBm
  • Image frequency and spurious attenuation: ≥ 95 dB
  • Receiver design: Super-Heterodyne
  • Diversity system: Digital True Diversity
  • Antenna inputs: 2 x 50 Ω BNC sockets
  • Bass roll off: 2nd order shelving filter, selectable betw. 10–300Hz
  • Equalizer: 3-band (amplification or padding of the lows, mids and highs)
  • Compressor: dbx®
  • Limiter: dbx® (parameter = usage threshold)
  • Transmitter battery indicator: 7‑segments
  • PC interface: Ethernet via HUB4000 Q (optional) ; Ethernet via Dante™ (100 Mbit/s) ; Software HiQnet Audio Architect
SKU AKGDSR800
Barcode # 601527821705
Brand AKG
Brand AKG
Type Wireless Receiver
Model DSR800
Shipping Cubic 0.017794000m3
