New, Unused, Open Box item.

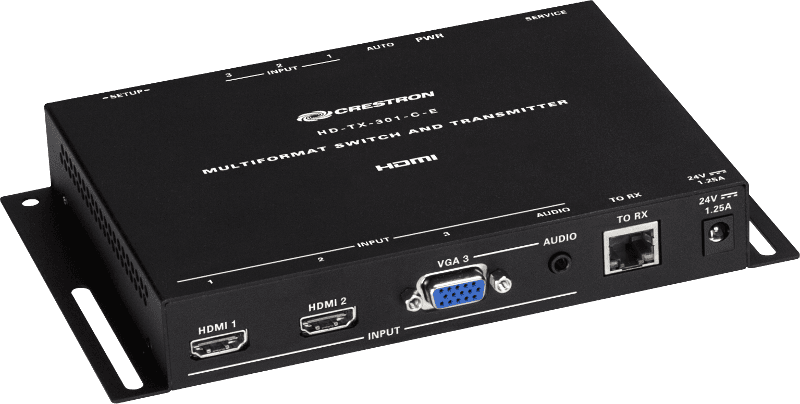

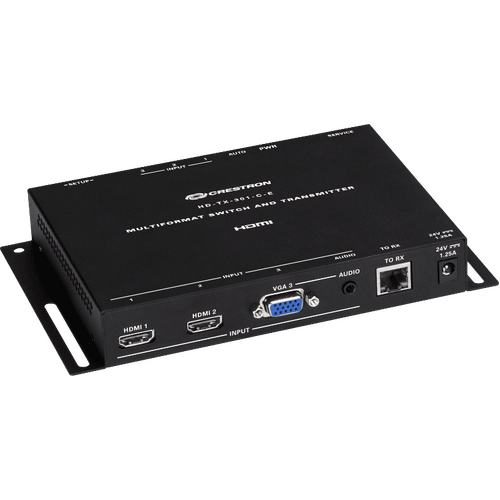

The HD-TX-301-C-E is a DM Lite® surface-mountable transmitter designed to pair with a DM Lite or DMPS Lite™ receiver to form a signal extender for HDMI® signals. The DM Lite family of products offers a versatile solution for extending HD, UHD, 2K, and 4K video signals, with stereo or surround sound audio, over a single CAT5e (or higher) cable. A cable length of up to 230 ft (70 m) is supported for HD 1080p, WUXGA, and 2K signals, or up to 130 ft (40 m) for UHD and 4K.¹

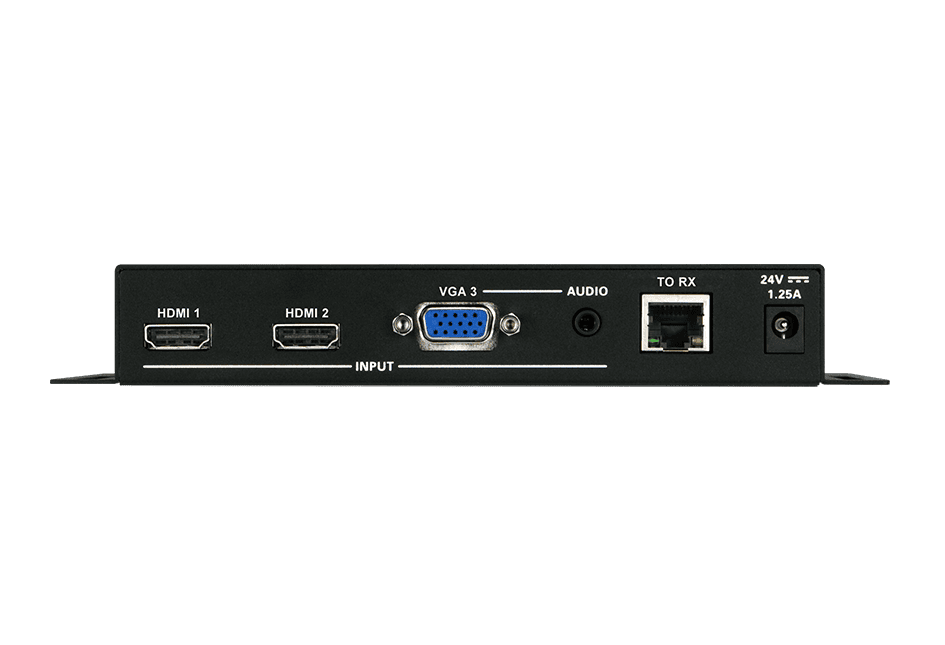

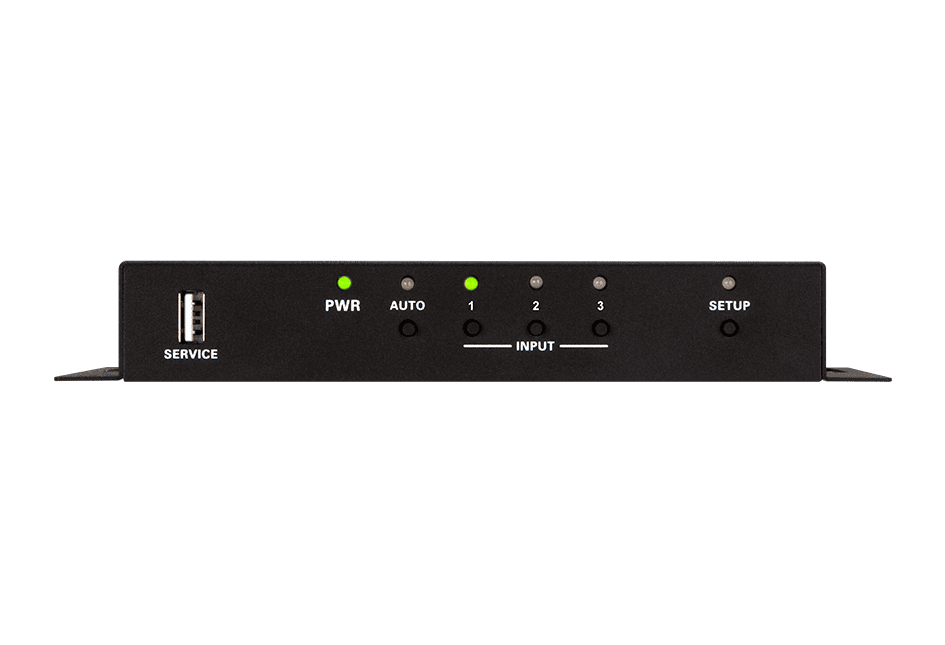

The HD-TX-301-C-E includes two HDMI inputs and one VGA input. The VGA input is accompanied by a stereo analog audio input. Auto-switching between the HDMI and VGA inputs enables plug-and-play simplicity. Manual input selection is also available via individual buttons on the unit. The VGA input can accept RGB and component video signals by using an appropriate breakout cable or adapter (not included). The audio input is selected in tandem with the VGA input, and can be used by itself with no video source connected. However, it cannot be paired with the HDMI video input.

Key Features

• Pairs with a DM Lite® or DMPS Lite™ receiver
• Enables extension of HDMI® video and audio signals
• Converts and extends VGA and analog audio signals
• Auto-switches between two HDMI inputs and one VGA input
• Works with the optional TT-100 series Crestron Connect It™ Cable Caddy
• Links to the receiver via a single CAT5e (or higher) twisted pair cable
• Supports 4K and UHD at up to 130 ft (40 m)
• Supports HD 1080p, WUXGA, and 2K at up to 230 ft (70 m)
• Handles 4K video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
• Handles 3D video and Deep Color
• Supports Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
• Compatible with HDMI, DVI, and Dual-Mode DisplayPort™ sources
• Compatible with VGA, RGBHV, RGBS, RGsB, and YPbPr component sources up to HD 1080p and WUXGA
• HDCP 1.4 compliant
• Passes CEC and EDID signals
• Allows control system integration when paired with an HD-RX-201-C-E or DMPS Lite receiver

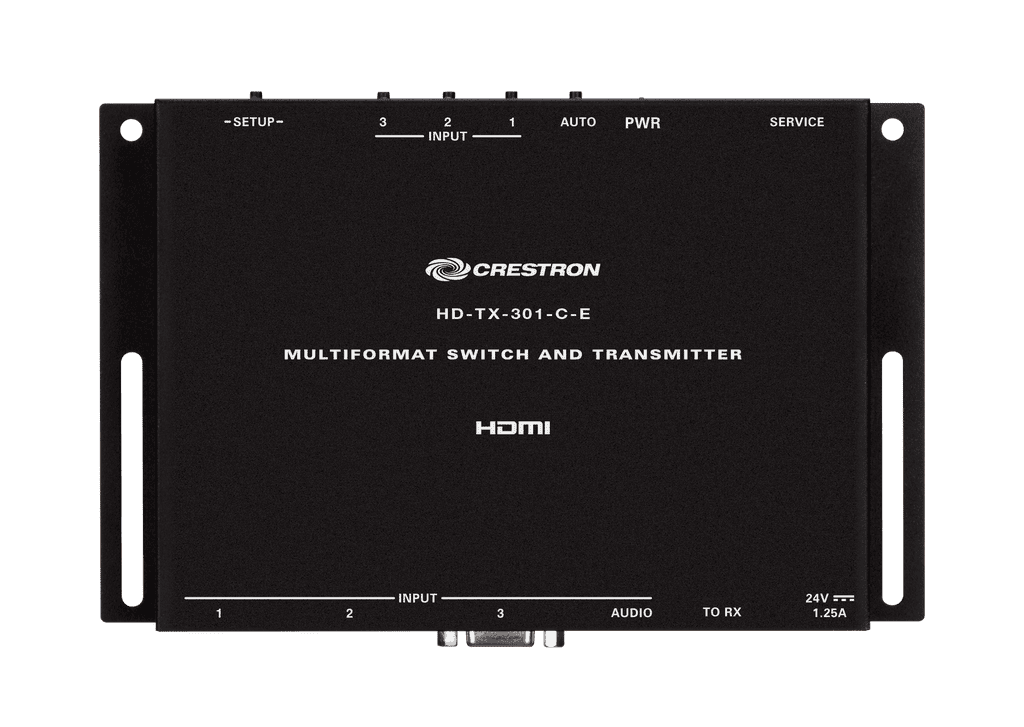

• Low-profile surface mount design
• Universal 100-240V power pack included

1. For the DM Lite link cable, use Crestron DM-CBL-8G DigitalMedia 8G™ cable, Crestron DM-CBL-ULTRA DigitalMedia™ Ultra cable, or third-party CAT5e or higher. The maximum cable length is 230 ft (70 m) for resolutions up to 2K or 130 ft (40 m) for higher resolution signals up to 4K. Refer to the “Maximum DM Lite Link Cable Lengths” table for a more detailed overview. Shielded cable and connectors are required when bundling multiple cables in a wire run, and are recommended for all applications to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Wire and cables are sold separately. DM Lite devices are not compatible with DigitalMedia 8G+, HDBaseT, PoE, PoDM, or any other CATx based interface or network.
2. The power pack may be connected to either the transmitter or receiver. Only one power pack is required. Do not connect more than one power pack. DM Lite devices are not compatible with PoE or PoDM.
3. The HDMI input requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
4. The VGA input requires an appropriate breakout cable or adapter to accommodate an RGB or component video signal.
