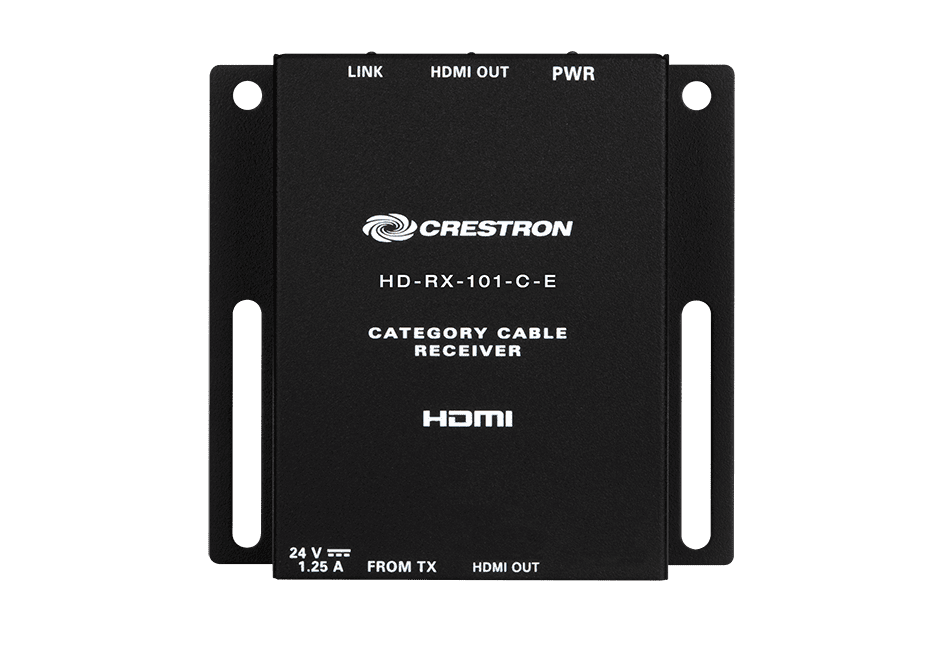

The HD-RX-101-C-E is a surface-mountable DM Lite receiver designed to pair with a DM Lite transmitter to form a point-to-point signal extender for HDMI® signals. The DM Lite family of products offers a very simple and versatile solution for extending HD, UHD, 2K, and 4K video signals, with stereo or surround sound audio, over a single CAT5e (or better) cable. A cable length of up to 230 ft (70 m) is supported for HD 1080p, WUXGA, and 2K signals, or up to 130 ft (40 m) for UHD and 4K.[1]

Key Features

  • Pairs with a DM Lite transmitter to provide a simple point-to-point signal extender
  • Enables extension of HDMI® video and audio signals
  • Links to the transmitter via a single CAT5e (or better) twisted pair cable [1]
  • Supports 4K and UHD at up to 130 ft (40 m)
  • Supports HD 1080p, WUXGA, and 2K at up to 230 ft (70 m)
  • Handles 4K video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
  • Handles 3D video and Deep Color
  • Supports Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
  • Compatible with HDMI and DVI display devices[3]
  • HDCP 2.2 compliant
  • Passes CEC and EDID signals
  • Low-profile surface mount design
  • Universal 100-240V power pack included[2]
  1. For the DM Lite link cable, use Crestron DM-CBL-8G DigitalMedia 8G™ cable, Crestron DM-CBL-ULTRA DigitalMedia™ Ultra cable, or third-party CAT5e (or better). The maximum cable length is 230 ft (70 m) for resolutions up to 2K or 130 ft (40 m) for higher resolution signals up to 4K. Refer to the “Maximum DM Lite Link Cable Lengths” table for a more detailed overview. Shielded cable and connectors are required when bundling multiple cables in a wire run, and are recommended for all applications to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. All wire and cables are sold separately. DM Lite devices are not compatible with DigitalMedia 8G+ (DM 8G+), HDBaseT, PoE, PoDM, or any other CATx based interface or network.
  2. The power pack may be connected to either the receiver or transmitter. Only one power pack is required. Do not connect more than one power pack. DM Lite devices are not compatible with PoE or PoDM.
  3. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cables are available separately.

(HD-RX-101-C-E-OB)

Video
Output Signal Type HDMI w/Deep Color, 3D, & 4K (DVI compatible [3])
Copy Protection HDCP 2.2

Maximum Resolutions

Scan
Type		 Resolution Frame
Rate		 Color
Sampling		 Color
Depth
Progressive 4096x2160 DCI 4K
&
3840x2160 4K UHD		 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD 1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD 1080i 30 Hz 4:4:4 36 bit

NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz

Audio
Output Signal Type HDMI
Formats Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels

Communications
HDMI HDCP 2.2, EDID, CEC pass-through
DM Lite Link Proprietary link for connection between one DM Lite TX & RX only

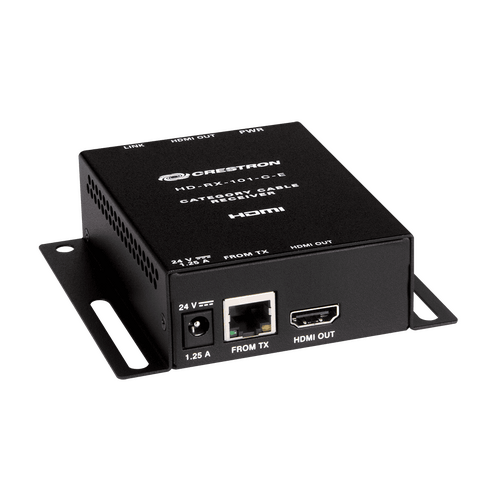

Connectors

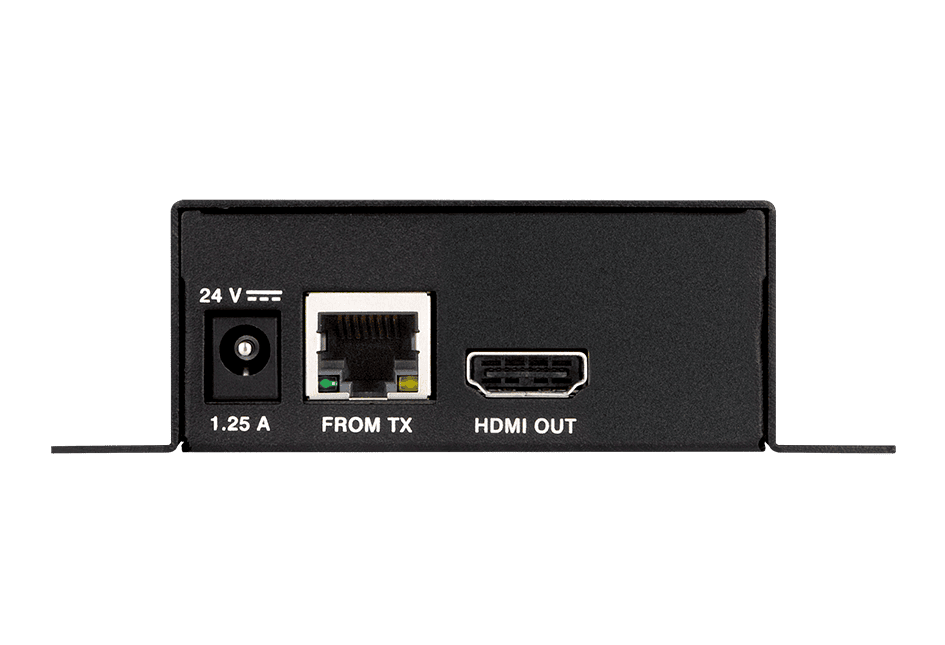

24VDC 1.25A (1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2412WU power pack included;
Note: This connection powers both the receiver and transmitter [2]
FROM TX (1) 8-pin RJ45 connector, female, shielded;
Link port for connection to a DM Lite transmitter [1]
HDMI OUT (1) HDMI Type A connector, female;
HDMI digital video/audio output (DVI compatible [3])

Indicators

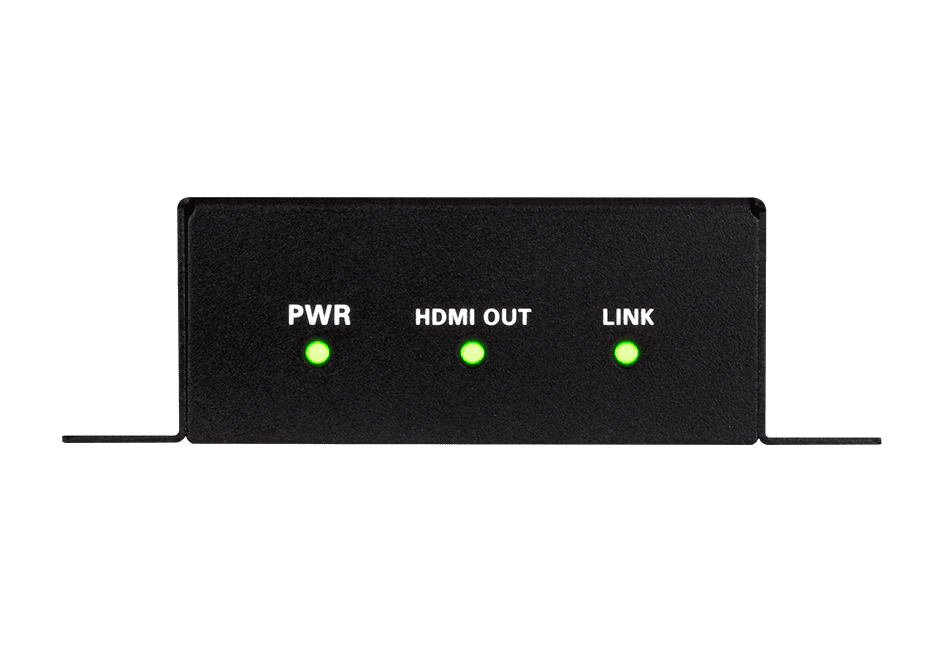

PWR (1) Green LED, indicates operating power is supplied from the power pack via the 24VDC input or from the TX via the DM Lite link
HDMI OUT (1) Green LED, indicates HDMI output signal presence
LINK (1) Green LED, indicates the DM Lite link status
FROM TX (2) LEDs (on RJ45 connector), green LED indicates link status, amber LED indicates a valid video signal

Power
Power Pack (included) Input: 100-240 Volts AC, 50/60 Hz;
Output: 1.25 Amps @ 24 Volts DC;
Model: PW-2412WU
Note: The receiver and transmitter are powered together using a single power pack connected at either the receiver or transmitter (not both).[2]

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 20% to 90% RH (non-condensing)

Construction
Chassis Metal, black finish, with (2) integral mounting flanges, vented sides
Mounting Freestanding, surface mount, or attach to a single rack rail

Dimensions
Height 1.26 in (32 mm)
Width 4.21 in (107 mm)
Depth 4.05 in (103 mm)

Weight
9.92 oz (281 g)

Compliance
UL Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device

Maximum DM Lite Link Cable Lengths


Resolution		 Cable Type
CAT5e (or better),
DM-CBL-ULTRA DM® Ultra Cable, or
DM-CBL-8G DM 8G DM 8G® Cable [1]
1920x1080 FHD 1080p 230 ft (70 m)
1920x1200 WUXGA
1600x1200 UXGA
2048x1080 DCI 2K
2048x1152 QWXGA
2560x1080 UWFHD 130 ft (40 m)
2560x1440 WQHD
2560x1600 WQXGA
3840x2160 4K UHD
4096x2160 DCI 4K
  1. For the DM Lite link cable, use Crestron DM-CBL-8G DigitalMedia 8G™ cable, Crestron DM-CBL-ULTRA DigitalMedia™ Ultra cable, or third-party CAT5e (or better). The maximum cable length is 230 ft (70 m) for resolutions up to 2K or 130 ft (40 m) for higher resolution signals up to 4K. Refer to the “Maximum DM Lite Link Cable Lengths” table for a more detailed overview. Shielded cable and connectors are required when bundling multiple cables in a wire run, and are recommended for all applications to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. All wire and cables are sold separately. DM Lite devices are not compatible with DigitalMedia 8G+ (DM 8G+), HDBaseT, PoE, PoDM, or any other CATx based interface or network.
  2. The power pack may be connected to either the receiver or transmitter. Only one power pack is required. Do not connect more than one power pack. DM Lite devices are not compatible with PoE or PoDM.
  3. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal. CBL-HD-DVI interface cables are available separately.
SKU HD-RX-101-C-E-OB
Barcode # 608539297399
Brand Crestron
Brand Crestron
Type Video Extender
Model HD-RX-101-C-E
Shipping Cubic 0.017794000m3
